| Prod Model: |
CW-300GFZ electric generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine No: |
6190 Gas Engine |
| Gas Source: |
Biogas |
| Power: |
300kw |
Product Description

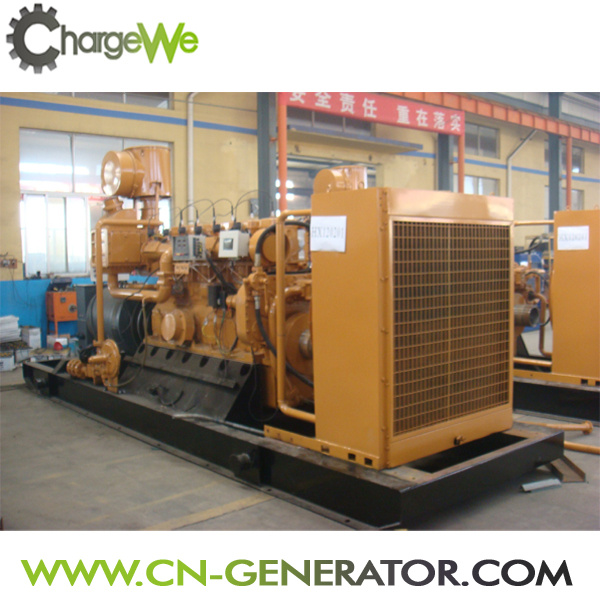

CW-300GFZ electric generator
1. Power saving 2. Environment Protection 3. Wide energy exciting 4. Reasonable price and High quality 5. CE /ISO
TECHNICAL PARAMTER OF ELECTRIC GENERATOR | Model No. | CW-300GFZ |
| Engine No. | 6190ZLDT-2 |
| Gas mix type | Outside |
| Rated power | 300kw |
| Continuous Power | 240KW |
| Rated voltage | 400V/230V |
| phase | 3p4w |
| Rated frequency | 50Hz |
| Rated rotation | 1000r/min |
| Rated power factor | 0.8 |
| Rated current | 540A |
| Frequency volatility rate | ≤0.5% |
| Voltage regulating range | 95-105% |
| Heat consumption | ≤11.5mj/kw.h |
| Lubricant consumption | ≤1.5g/kw.h |
| pressure | 3-20kpa |
| Cylinder number | 6 |
| Cylinder diameter | 190mm |
| stroke | 210mm |
| Compression ratio | 8:1 |
| Starting mode | 24V electric motor |
| Overhaul time | ≥25000h |
| Noise | ≤105dB(A) |
| Intake mode | Supercharging ,inter cooler |
| Sparking mode | Spark plug |
| Voltage regulation mode | automatic |
| Speed regulation mode | electronic speed regulate |
| Lubrication mode | Pressure and splash |
| Cooling mode | Circulating water cooling |
| Exhaust temperature | ≤650ºC |
| Displacement | 35.7L |
| Genset dimensions | 6000×1970×2235 |

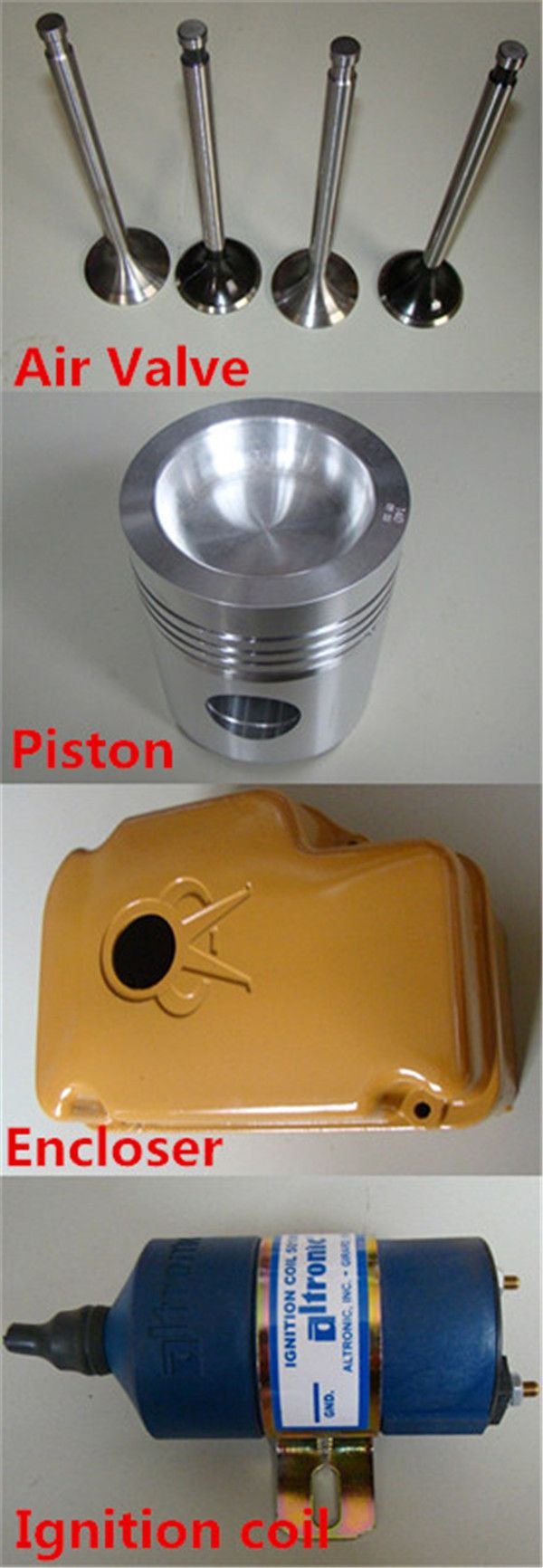

PARTS OF GENSET
CE/ISO
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
