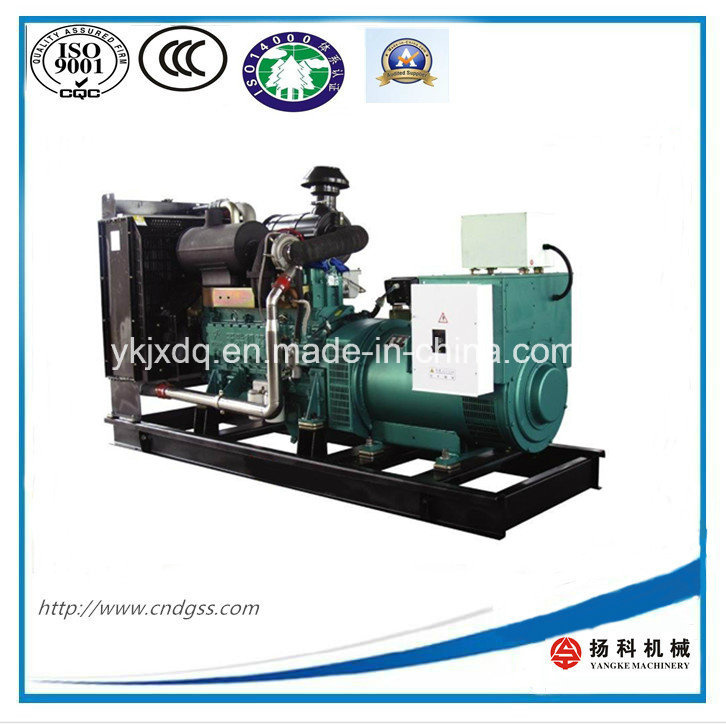

China Manufacturer Wudong 250kw/312.5kVA Diesel Generator

Prod Model:	QSWD-250GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz
Rated Rpm:	1500
Current:	451A
Power:	250kw/312.5kVA
Cylinder No.:	6
Bore/Stroke:	135*150mm
Displacement:	12.9L
Lubricating Capacity:	58L
Size(L*W*H Mm):	3000*1100*1750
Weight(Kg):	2200
Type:	Basic Diesel Generator
Installation Method:	Portable
Stroke:	Six Stroke
Cooling Method:	Water Cooling
Output Type:	AC Single Phase

Product Description

1. Wudong industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

wudong diesel generator set
GEN-SETS	Model	QSWD-250
	Engine Brand	wudong
	Rated Output(kva)	312.5
	Current(A)	451
	Power factor(cosφ)	0.8
	Frequency(hz)	50/60
	Fuel Consumption(g/kw.h)	≤213
	The regulating rate of steady voltag	≤±0.5%
	The regulating rate of instantaneous voltage	≤-10%/ +15%
	The time of steady voltage	≤1.5sec
	The waving rate of voltage	≤0.5%
	The regulating rate of steady frequency	≤3%
	The regulating rate of instantaneous frequency	≤±5%
	The time of steady frequency	3sec
	The waving rate of frequency	≤0.25%
	Dim L×W×H(mm)	WD129TAD23
	Weight(kg)	2200
Diesel engine	Engine model	WD129TAD23
	Cylinder	6
	Bore*Stroke(mm)	135*150
	Lubricating oil capacity	30
	Rated speed(rpm)	1500/1800
	Cooling method	Closed water cooling
	Starting system	Electrical start
	Displacement(L)	12.9
Alternator	Brand	Qianghui/stamford/marathon/engga
	Type	Brushiess
	The connecting way of the phase	Three phases four lines
	Insulation degree	H degree
	Grading Protection	IP23

Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America


Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com
