| Prod Model: |
LY-720GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:T Jiangsu China: |
Brand Name:T Lingyu |
| Output Type:T AC Three Phase: |
Speed:T 1500/1800/3000/3600rpm |
| Frequency:T 50/60Hz: |
Rated Power:T 720kw |
| Rated Voltage:T 110~570V: |
Rated Current:T AMPS |
| Payment Terms:T T/T L/C Credit: |
Fan:T Aluminum Fan |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Six Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Single Phase |
Product Description

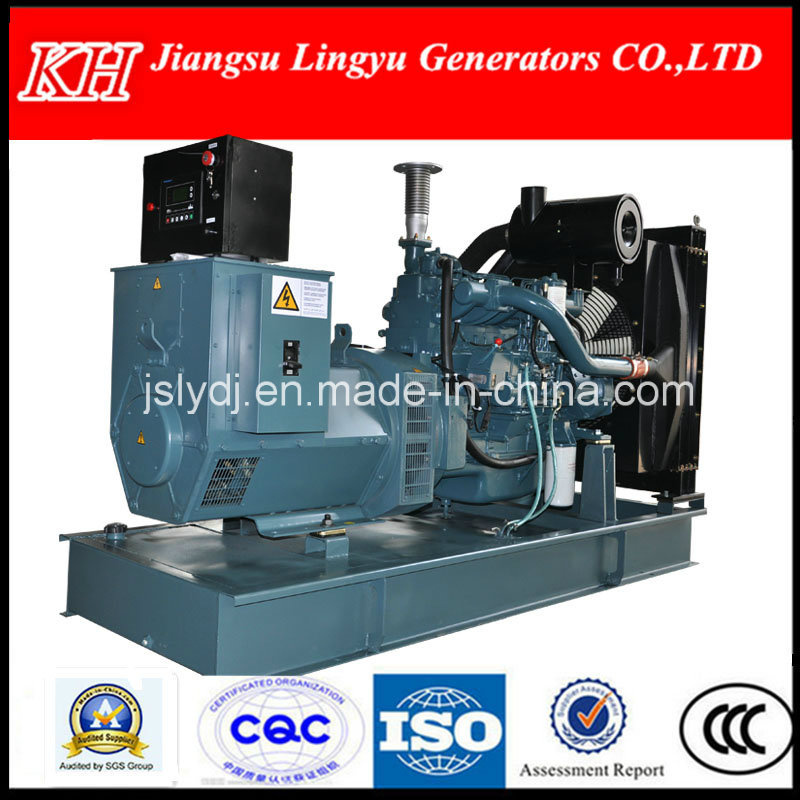

100KW 125KVA Doosan Generating Sets
Company Information
Jiangsu Lingyu brushless generator Co., Ltd. is a lending manufacture of diesel generator and generator sets in China. Established in 2008, located in Jiangdu Chengbei Industrial Zone, Yangzhou City,Jiangsu province, China with more than 86200 square meters workshop and the total covers an area of 101280 square meters.
Standard Configuration of Diesel Generator Set Powered by Doosan Engine:
1) Doosan engine
2)Lingyu alternator(Marathon, Mecc Alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
| Manufacturer | Doosan Heavy Industries & Construction |
| Model | D1146T |
| Continuous power | 100KW |
| Prime Power | 117KW |
| Standby Power | 108KW |
| Engine Type | V-type 4 cycle, water cooled, turbo charged & intercooled |
| Combustion type | Direct injection |
| Cylinder type | Replaceable wet liner |
| Number of cylinder | 12 |
| Bore x stroke | 111*139 mm |
| Displacement | 21.927 lit |
| Compression rati | 15:1 |
| Injection timing | 16°BTDC |
| Rotation | Counter clockwise viewed from flywheel |
| Fly wheel housing | SAE NO.1 |
| Fly wheel | Clutch No.14 |
| Manufacturer / Model | JIANGSU LINGYU GENERATOR CO.,LTD |
| Model | KHI100-14 |
| Output power | 100KW |
| AVR model | R250 |
| Number of phase | 3 |
| Power factor (Cos Phi) | 0.8 |
| Altitude | ≤ 1000 m |
| Overspeed | 2250RPM |
| Number of Pole | 6 |
| Exciter type | Shun |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300% (3 IN) : 10s |
| Total harmonics (TGH/THC) | < 4 % |
| Wave form : NEMA = TIF | < 50 |
| Wave form : I.E.C. = THF | < 2% |
| Bearing | single |
| Coupling | Direct |
Our Diesel Generator Set Production Range is as follows:
l Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. Lovol (China) 20KVA - 150KVA
5. Yangdong (China) 8KVA - 40KVA
6. Weichai (China) 8KVA - 150KVA
7. Shanghai Engine
8. Yuchai Engine
To know more details, please feel free to contact us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
