| Prod Model: |
NPA10KC-S-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Electric power |
| Usage: |
Environmental Protection, Chemical Industry |
| Type: |
Ozone Water Purifier |

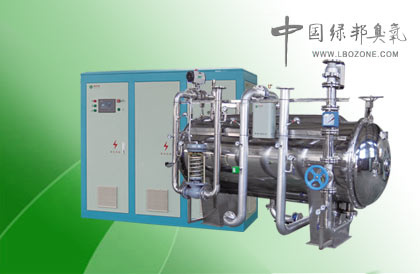

Product Description
For applications where larger quantites of ozone are required. Typical applications:
Drinking water treatment
Waste water treatment
Pulp & paper applications
Fish hatcheries and farms
Cooling water treatment
Water circulation systems
Influent water treatment, etc.
|
Name |
NPA3~40KC-S-3Technical Parameters |
|
1Parameters |
|
|
Ozone Production(Kg) |
3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
|
Ozone Concentration |
20~57.2 mg/L,1~4wt % |
|
Feed Gas Source |
Air |
|
Gas Flow (Nm3/h) |
107 |
178 |
356 |
534 |
712 |
890 |
1068 |
1424 |
|
Inlet/Outlet Pressure |
0.1~0.5 MPa/0.05~0.1 MPa,1~5Bar/0.5~1Bar |
|
Gas Connector Size |
DN40 |
DN50 |
DN65 |
DN80 |
DN100 |
DN100 |
DN125 |
DN150 |
|
Ozone Adjust Range |
10~100% |
|
2Technical Datas |
|
|
Power Supply |
3×400V,50/60Hz |
|
Power Consumption |
16~20KWh/kgO3 |
|
Power Factor |
95~99% |
|
Cooling Type |
Water-cooling |
|
Cooling Water Quantity |
2.5~3.5 Nm3/h |
|
Cooling Water Range |
5ºC |
|
Cooling Connector Size |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN125 |
DN150 |
DN200 |
|
Ambient Temperature |
5~40ºC/24h Average 35ºC |
|
Ralative Humidity |
Average Humidity≤65%,Accidental Humidity≤85% |
|
Degree of Protection |
IP42~IP54 |
|
Noise (1meter) |
≤65dB(A) |
|
3Dimensions |
|
|
Length (mm) |
3100 |
3100 |
3100 |
4500 |
4500 |
4500 |
4500 |
5400 |
|
Width (mm) |
2000 |
2100 |
2200 |
2300 |
2500 |
3300 |
3300 |
4200 |
|
Height (mm) |
1900 |
2000 |
2100 |
2200 |
2300 |
2600 |
2700 |
3500 |
|
Weight(kg) |
2600 |
4300 |
7200 |
8900 |
12000 |
16000 |
18000 |
28000 |
Shandong Nippon Photoelectricity Equipment company has passed the authentication of the quality system ISO9001, has the independent import and export right of management, owned professional workshop of manufacturing ozone discharge room and discharge body, digital DSP intelligence track motherboard.
The company has established several dozens sales networks in the world, the products have been sold to Russia, Middle East, Africa, South America and many other counteries.
