Product Description

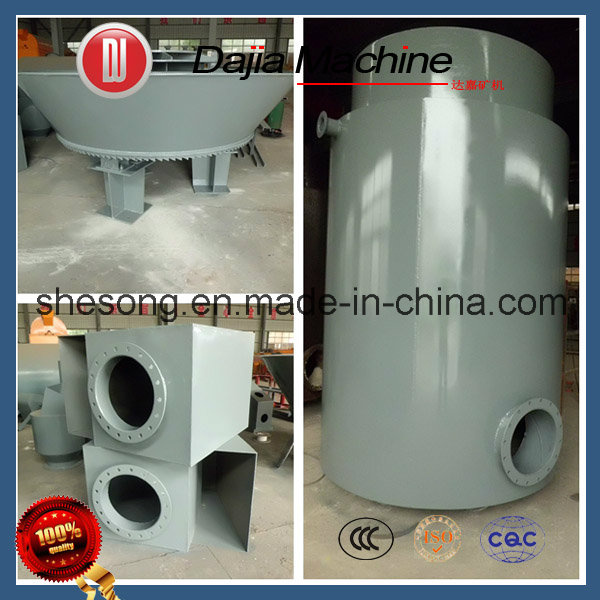

Coal Gasifier Plant /Coal Gasifier Power Plant
Introduction:
The one stage coal gasifier products designed and made by our company takes air and steam as gas agent, it is an advanced equipment for producing gas, It is suitable for gasifying charred coal, coke. And it is widely used in heating furnace in machinery, metallurgy, chemical engineering, glass, building materials, light industry, food and textile.
Features:
1. Using pagoda-shaped heat-resistant iron grate;
2. The furnace wall is always protected by slags, strong effect of slag breaking, slag loosing and ventilation;
3. Our coal gasifier eliminates the concept that gas furnace is the same as pressure vessel;
4. Our coal gasifier achieve tha auto control of the temperature.
Application:
It is widely used in the enviroment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerater, glass melting gas furnace, ceramic gas furnace, smoke exausting refractory kiln and tunnel kiln, as well as the renovation of furnaces that burn coal or oil, kilns, and equipment that needs heat such as metallurgy, chemical industry, allumim, fire-resistant materials, glass products and existing kiln,with very good effect.ect.
Working principle:
0-80mm pea coal is the ideal fuel for the continual coal gasifier, which largely increases the gasification intensity, accelerates the reaction, improves the gasification rate of coal, and makes charcoal react with vapour to form combustive air such as carbon monoxide and hydrogen, so as to reach complete gasification and produce gas continually and steadily.
Main technical parameters:
|
Model |
QM0.8 |
QM1.0 |
QM1.2 |
QM1.5 |
QM1.6 |
QM1.8 |
QM2.0 |
QM2.4 |
QM2.6 |
QM3.0 |
QM3.2 |
|
Chamber diameter(mm) |
800 |
1000 |
1200 |
1500 |
1600 |
1800 |
2000 |
2400 |
2600 |
3000 |
3200 |
|
Hearth active surface(m2) |
0.5 |
0.785 |
1.13 |
1.77 |
2.01 |
2.54 |
3.14 |
4.52 |
5.31 |
7.07 |
8.04 |
|
Suirable fuel |
weak coherent gas carbon,anotherracite,burnt carbon |
|
Fuel granularity(mm) |
25-80 |
|
Fuel consumption quantity(kg/h) |
40-100 |
70-140 |
120-190 |
160-350 |
350-460 |
500-600 |
500-720 |
700-1040 |
850-1200 |
1700-2000 |
1800-2200 |
|
Gasifying agent |
Air ,steam |
|
Gas yieldNm3/h) |
140-350 |
245-490 |
420-670 |
560-1200 |
1200-1600 |
1500-2100 |
1750-2500 |
2500-3600 |
3000-4300 |
6000-7000 |
6500-7500 |
|
Gas calorific value(Kj/Nm3) |
5020-5670 |
5020-6000 |
|
Water jacket heating area(M2) |
4.02 |
5.02 |
6.78 |
10.37 |
11.06 |
12.44 |
17.58 |
21.87 |
23.69 |
30.16 |
32 |
|
Steam output(kg/h) |
60 |
80 |
130 |
200 |
220 |
260 |
350 |
420 |
600 |
840 |
200 |
|
Gas outlet temperature(degrees centigrade) |
(400-500)Plants related with the coal |
(400-500)Plants related with the coal |
|
Gas outlet pressure(Pa) |
1000 |
980-1470 |
1470-1960 |
980-1470 |
|
Gas exportation diameter(mm) |
219 |
325 |
325 |
426 |
426 |
529 |
630 |
720 |
820 |
1020 |
900 |
|
Air pressure(Pa) |
3000 |
4000 |
3000 |
|
Saturated air temperature(degrees centigrade) |
50-60 |
50-65 |
|
Ashpan rotational speed(r/h) |
0.177-1.77 |
|
Equipment gross weight(t) |
3.5 |
4.5 |
5 |
7.5 |
10 |
20 |
23.4 |
29.8 |
32 |
37.6 |
16 |
|
Complete machine power(kw) |
6 |
6 |
6 |
7 |
8 |
10 |
14 |
20 |
20 |
27 |
7 |
|
Tuyere diameter(mm) |
108 |
108 |
140 |
165 |
219 |
325 |
325 |
426 |
426 |
426 |
219 |
