| Prod Model: |
omr50/80/100/125/160/200/250/315/375 orbit motor |
| Markets: |
South America,Eastern Europe,Southeast Asia |
| Usage: |
Hydraulic Oil |
| Certification: |
ISO9001 CE |
| Application: |
Plastic Machine, Agriculture Machine |
| Motor Flange Shape: |
Square and Rhombus Flange |
| Motor Material: |
Cast Iron |
| Processing: |
Forging & Cutting &Phosphating |
| Motor Shafts: |
Straight, Splined and Tapered |
| Colour: |
Black/Gray or as Your Request |
| Motor Operate: |
with Electrical Motor/Pump /Cyclinder |
| Warranty: |
One Year |
| Type: |
Hydraulic Motor |
| Hydraulic Actuator: |
Hydraulic Motor |
Product Description

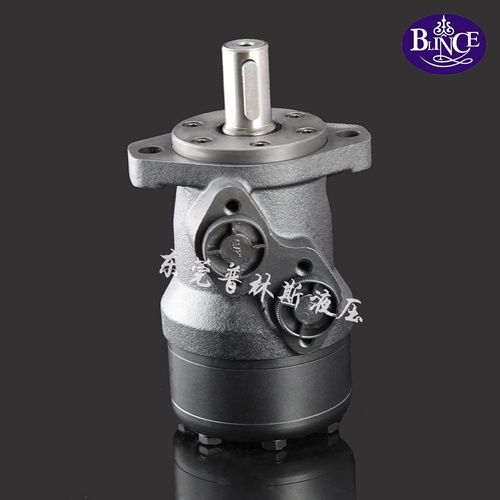

Combine harvest machine spare parts Blince OMR hydraulic motor
OMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smoothoperation, high efficiency and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation
Hydraulic motor application:
Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter, etc.
Blince profssion supply all series hydraulic motor like
OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
Blince hydraulic motor perfect replace
Parker hydraulic motor
White hydraulic motor
Eton hydrualic motor
M+S hydraulic motor
| Type | OMR
36 | OMR
50 | OMR
80 | OMR
100 | OMR
125 | OMR
160 | OMR
200 | OMR
250 | OMR
315 | OMR
375 |
| Displacement (cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 |
Max speed
rate (rpm)
| cont | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| | int | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 |
Max torque
(N.m) | cont | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| | int | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 |
Max output
(KW) | cont | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10.0 | 7.0 | 6.0 | 5.0 |
| | int | 9.8 | 11.2 | 15.0 | 15.0 | 14.5 | 14.0 | 13.0 | 9.5 | 9.0 | 8.0 |
Max pressure
Drop(Mpa) | cont | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| | int | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 |
Max.flow
(L/min) | cont | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| | int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Weight(kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 |
