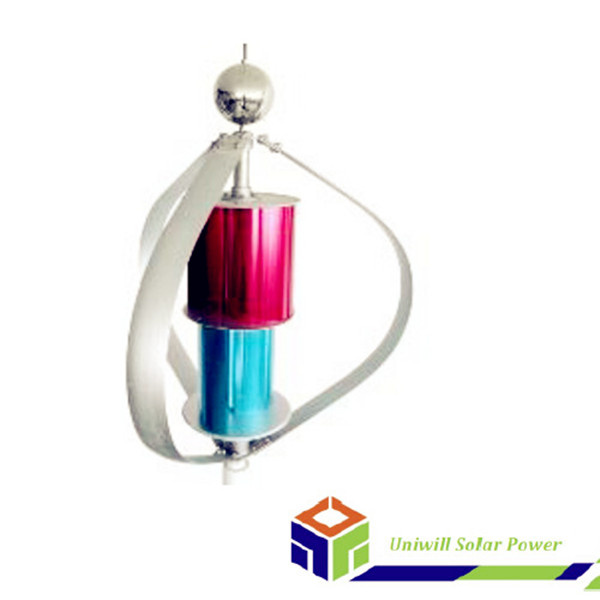

Competive Vertical Maglev 3000W Wind Turbine Power Generator

Prod Model:	Uniwill 3K V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Wind Speed:	13m/S
Startup Wind Speed:	15m/S
Cut-in Wind Speed:	60m/S
Safety Wind Speed:	50m/S
Controller Output Voltage:	DC48
Generator Type:	Three-Phase AC Maglev Wind Turbine
Conrtoller Output Current:	<130AMP
Controller Brake System:	Over Speed Automatic Three-Phase Short-Circuit Bra
Weight:	60kg
Blade Material:	Aluminum Alloy
Rotating Shaft:	Vertical
Stress Way Of Blade:	Resistance
Number Of Blade:	Three Blade
Phase:	3 Phase
Power:	3000W

Product Description

Lowest cut-in wind speed	1 m/s for power production
No noise, no vibrations	Sound level< 25 dB at 7 m/s from 10 m distance
Adaptable for hybrid solutions	with solar and other sources of energy
Permanent power supply	10-12 hrs/day and ceaselessly 5-8 days in the rainy days
Technically advanced Maglev generator	No mechanical friction No need to connect with city power, to place cables, to use transformer to supply power
Best price-performance ratio All weather resistant	Rain, ice, heat, salt, sand
wind speed	Full use of low wind speed
High generating efficiency	At least 35% improved
Easy Installment	Low height
Suitable for any place                   Independent of wind direction                    Safety for people and nature

Wide application scope:
Power supply for ships Electricity, Agriculture and Fishery, Landscape education of wind energy and electricity, Wind-hydraulic generation system, Public electricity supply for building, Remote area, Independent house, Correspondence base, Street light, Electricity supply for community, Traffic signals, Independent Military Island, Wind solar hybrid, LED lighting system.

Price: Negotiable.
Pack Service: designing, solution and installation guide

Wind Generators Core Technique:
High Efficiency permanent-magnet generator;
Both Horizontal & Vertical Type;
Tiny friction between rotor and bearing housing;
Streamline wind turbine body and blade outline design;
High-rigidity FRP material, light and enduring lifetime;

Technical Parameters:

Rated Output Power	3000W
Wind wheel diameter	3.3M/3.20M
Weight	315KG
Blade Material	Aluminum Alloy
The number of blade	3
Minimum wind speed start	1m/s
Minimum power wind speed	2.5m/s
Minimum charge wind speed	3.5m/s
Rated wind speed	13m/s
Maximum cut off wind speed	15m/s
Resistant to wind speed limit	60m/s
The type of Generator	Three-phase AC maglev wind turbine
Controller output voltage	DC48
Controller output current	<130Amp
Controller brake system	Over speed automatic Normal
Phase	Three-phase short-circuit braking
operating temperature	-30~50ºC

The design of wind turbine:
Maglev wind turbine integrates Exterior Design, Practical design, Electrical Engineering, Power Mechanics, Aviation atmosphere engineering, Wind Tunnel Testing, Magnetic Levitation Theory with Computer Simulation of Fractional, adopting the magnetic levitation theory-when there is no mechanical friction with the motor, under the push of wind, makes the motor rotate smoothly and stably. So the wind turbines minimum rotating wind speed achieves 1m/s.

Brand Introduction:
Uniwill Group Limited is a leading high-tech industrial company group specialized in wind & solar energy products for 25 years so far, of which the core products include solar modules, wind generator and solar application products. Using the most advanced and reliable technology, Uniwill's products have been promptly populated by the global market like Africa, America, Australia, Europe, Middle East, South America countries.
If you have any need, please contact us!
