| Price: | US $ 180-190/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | LTP |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | 380V/400V |
| Package: | Wooden Case |
| Frequency: | 50/60Hz |
| Place Of Origin: | Fujian China (Mainland) |
| Model Number: | Ltp |
| Speed: | 1500rpm |
| Color: | Multi-Colors |
| Wire: | Cooper/ Aluminum |
| Certification: | ISO, CE, CQC and SGS etc. |
Copy stamford Three phase brushless Generator
1 EXPLANATION :
1 Any permanent magenetic fenerators,providing incariable exciation on all cccasions.
2 Easy to be connected with power network or other generators, Standard 2/3 pitch windings check excessive midline current.
3 Balanced rotor with single or two sealed ball bearings
4 Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5 Wide range of flange adaptor and single bearing coupling disc.
6 Meet leading standards
2 INSULATION
The insulation system is class H. All wound components are impregnated with materials and processes disigned specifically to provide the high build required for static windings and the high mechanical strength required for rotating components.
| TYPE | Rated Power(1500rpm 50HZ 400V) | KG | ||||||
| Continuous/40 | Stand by/40 | Stand by/27 | ||||||
| H125K | H150K | H163K | ||||||
| KVA | KW | (%) | KVA | KW | KVA | KW | ||
| LTP164A | 8.1 | 6.5 | 73.6 | 8.5 | 6.5 | 6 | 7.2 | 86 |
| LTP164B | 9.4 | 8 | 78.8 | 11 | 8.8 | 12 | 9.6 | 90 |
| LTP164C | 12.5 | 10 | 80.6 | 13.8 | 11 | 15 | 12 | 96 |
| LTP164D | 15 | 12 | 81.2 | 17.5 | 14 | 20 | 16 | 100 |
| LTP184E | 20 | 16 | 84.5 | 22.5 | 18 | 25 | 20 | 120 |
| LTP184F | 25 | 20 | 86 | 27.5 | 22 | 30 | 24 | 150 |
| LTP184G | 30 | 24 | 86.3 | 32.5 | 26 | 35 | 28 | 160 |
| LTP184H | 37.5 | 30 | 86.6 | 40 | 32 | 41.3 | 33 | 216 |
| LTP224C | 42.5 | 34 | 87 | 45 | 36 | 47.5 | 38 | 250 |
| LTP224D | 50 | 40 | 88 | 52.5 | 42 | 55 | 44 | 270 |
| LTP224E | 60 | 48 | 88.6 | 62.5 | 50 | 65 | 52 | 290 |
| LTP224F | 72.5 | 58 | 90 | 77.5 | 62 | 80 | 64 | 320 |
| LTP224G | 85 | 68 | 90.2 | 87.5 | 70 | 91.3 | 73 | 360 |
| LTP274C | 100 | 80 | 90.4 | 106.3 | 85 | 110 | 88 | 395 |
| LTP274D | 117.5 | 94 | 90.8 | 127.5 | 102 | 131.3 | 105 | 420 |
| LTP274E | 140 | 112 | 91.5 | 145 | 116 | 150 | 120 | 470 |
| LTP274F | 160 | 128 | 92.3 | 170 | 136 | 175 | 140 | 510 |
| LTP274G | 181.3 | 145 | 92.5 | 187.5 | 150 | 193.8 | 155 | 560 |
| LTP274H | 200 | 160 | 93.3 | 212.5 | 170 | 220 | 176 | 610 |
| LTP314C | 250 | 200 | 92.4 | 270 | 216 | 275 | 220 | 850 |
| LTP314D | 300 | 240 | 92.7 | 320 | 256 | 330 | 264 | 915 |
| LTP314E | 350 | 280 | 93.3 | 370 | 296 | 400 | 320 | 960 |
| LTP314F | 394 | 315 | 93.5 | 418.8 | 335 | 437.5 | 350 | 1123 |
| LTP354C | 450 | 360 | 94.1 | 477.5 | 382 | 495 | 396 | 1275 |
| LTP354D | 500 | 400 | 94.4 | 515 | 412 | 530 | 424 | 1330 |
| LTP354E | 600 | 480 | 94.6 | 640 | 512 | 665 | 532 | 1530 |
| LTP354F | 662.5 | 530 | 94.8 | 700 | 560 | 725 | 580 | 1690 |
| LTP404C | 750 | 600 | 93.3 | 775 | 620 | 790 | 632 | 1960 |
| LTP404D | 800 | 640 | 93.6 | 825 | 660 | 840 | 672 | 1980 |
| LTP404E | 900 | 720 | 93.8 | 937.5 | 750 | 957.5 | 766 | 2040 |
| LTP404F | 1000 | 800 | 94.3 | 1030 | 824 | 1050 | 840 | 2210 |
| LTP404G | 1125 | 900 | 94.7 | 1163 | 930 | 1187.5 | 950 | 2430 |
| LTP404H | 1250 | 1000 | 95 | 1288 | 1030 | 1312.5 | 1050 | 2760 |
FAQ:
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

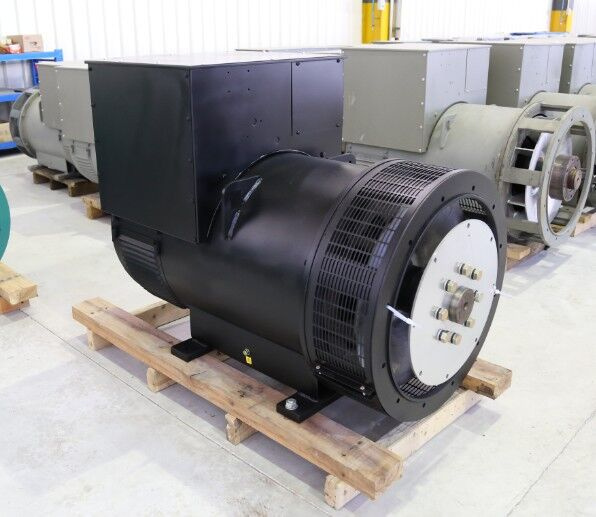

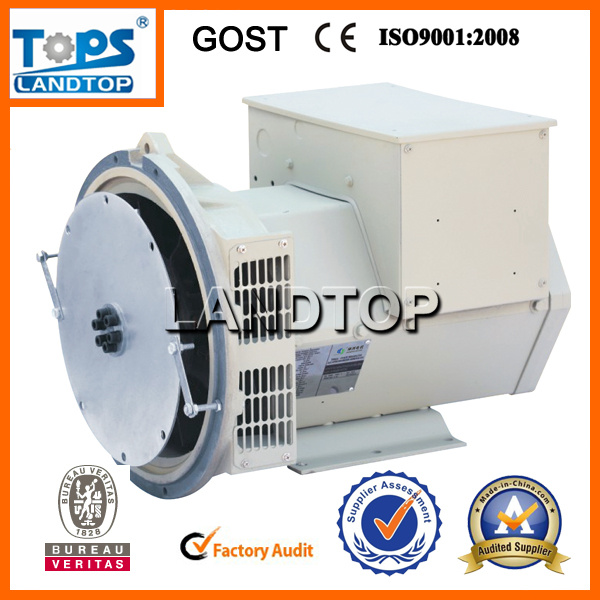

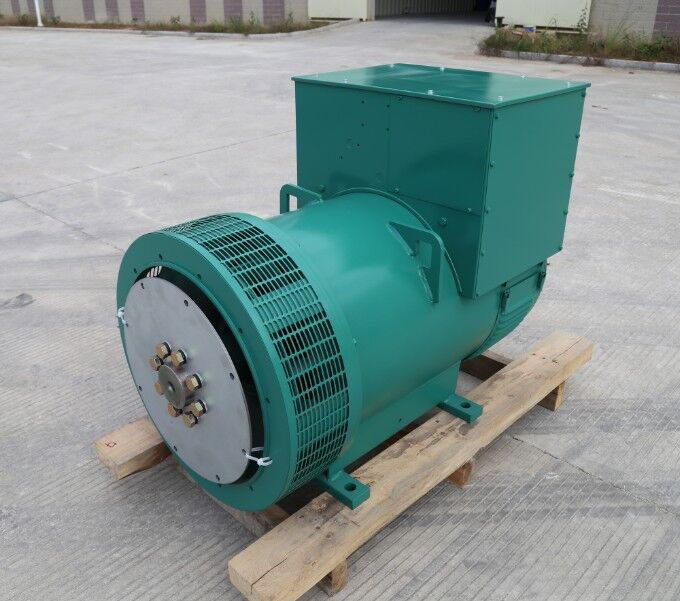

3 Photo show
Your ODM/OEM is welcome, differnet color and color package is acceptable.
