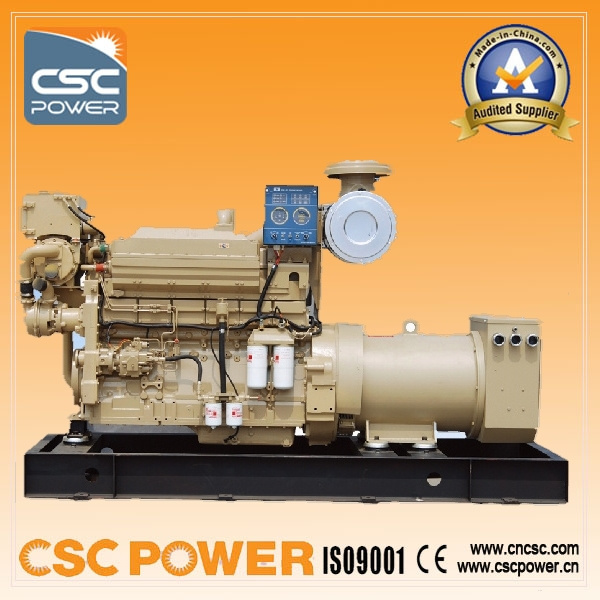

Cscpower 300kw Cummins Marine Diesel Engine Generator (KTA19-D(M))

Name: Cscpower 300kw Cummins Marine Diesel Engine Generator (KTA19-D(M))
Brand: aboutgenerator.com
SKU: 712719085
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	US $ 5000-25000/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Fuzhou Century Sea Co., Ltd.

Showroom Product Company Profile

Prod Model:	KTA19-D(M)
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	Cummins China Dongfeng / Chongqing
Alternator:	Stamford
Marine Class Society Certificate:	CCS, ABS, Gl, etc
Application:	Fishing Boat, Marine Ship, Big Ship, etc
Factory Certificates:	ISO9001-2000 BV CCS Marine Class Society
Production Equipment:	UK PT Pumps, Inspection and Test Equipment for Inj
Global Warranty:	12 Months or 1500hr
OEM:	Accept
Delivery Time:	45 Days After Receiving Down Payment
Options:	Control Panel, Battery, Base Frame Fuel Tank
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Basic Diesel Generator
Output Type:	AC Three Phase

Product Description

We CSCPower, manufacturer specializing in generators,
Are qualified and hoping to supply you with different solutions (quotations+specifications) for generators according to your specific requirements.
Hope more about our generators could be known to you.
Factory STOCK! ! ! CSCPOWER 300kw cummins marine diesel engine generator price
Introduction:
Dongfeng Cummins series of marine diesel generator sets select B, C and L series engines, Chongqing Cummins series of marine diesel generator sets select N. K series engines, of Sino-US joint venture with Stamford and other world famous joint venture power generation alternator to meet the IMO TIER 2 emission standards, the economy, power, reliability, durability and environmental security of the product are well praised by the majority of shipowners. The product can be used as marine main generator, parking generator and emergency generator and enjoy the Cummins world global warranty.

About our Cummins diesel engine generator sets:
Cummins engines: From Cummins China Dongfeng / Chongqing, enjoying official global warranty.
Alternator: Stamford

Generator Sets Supply Scope
A. Marine classification society certificate
B. Genset including public foundation
C. Appurtenance and tools delivered by subconstractors
D. Spare parts of the gensets (according the ordering protocol signed by parties)
E. Genset quality certificate
F. Genset/Diesel engine/Generator/Turbocharger operation and maintenance instruction
G. Genset/Diesel engine/Generator outline and installation drawings
H. Generator excitation system dragram
I. Genset operation and maintenance records
J. Genset attached tools list
K. Package list
L. Spare parts list

Product Manufacture Standards
1. The complete gensets design, production and service accord with ISO9001standard.
2. The product performance accords with GB2820 and GB12786 standard (same as ISO8528).
Certificates:
BV and CCS marine class society, ISO9001-2000 ABS, BV and CCS etc.

Advanced Product Test Equipments from UK
1. PT Pump 2. Inspection and test for injector 3. Gearbox
4. Water and electricity power test equipment for generator. It is able to test four gensets (each under 1000KW) at the same time.

CSCPOWER Marine Diesel Generator Sets-50HZ/1500RPM, 3P4W Cummins+Stamford
Genset Model	Power in KW		Power in KVA		Diesel Engine Model	No. & Type	Bore & Stroke (mm)	Comp. Ratio	Displacement (L)	Start Mode	Insulation Grade	Lub Capacity (L)	Feul Consumption (L/H)	Weight (KG)	Dimension LWH (MM3)
Genset Model	Prime	Standby	Prime	Standby	Diesel Engine Model	No. & Type	Bore & Stroke (mm)	Comp. Ratio	Displacement (L)	Start Mode	Insulation Grade	Lub Capacity (L)	Feul Consumption (L/H)	Weight (KG)	Dimension LWH (MM3)
CSCCM55	40	44	50	55	4BTA3.9-GM47	4 Cylender Straight	102× 120	16.5: 1	3.9	24DCV	H	9	10	1130	21008101230
CSCCM110	80	88	100	110	6BT5.9-GM100	6 Cylender Straight	102× 120	17.3: 1	5.9	24DCV	H	16.3	20	1360	23808301230
CSCCM138	100	110	125	138	6BTAA5.9-GM115		102× 120	17.3: 1	5.9	24DCV	H	16.3	24	1360	23808301230
CSCCM193	140	154	175	193	6CTA8.3-GM155		114× 135	17.3: 1	8.3	24DCV	H	19	33	1380	25008301230
CSCCM248	180	198	225	248	6LTAA8.9-GM200		114× 135	16.6: 1	8.9	24DCV	H	27.6	42	1500	25008301330
CSCCM206	150	165	188	206	NT855-D(M)		140× 152	14.5: 1	14	24V/Air	H	38.6	38	2550	265010001625
CSCCM248	180	198	225	248	NT855-D(M)		140× 153	14.5: 1	14	24V/Air	H	38.6	45	2550	265010001625
CSCCM275	200	220	250	275	NTA855-D(M)		140× 154	14.5: 1	14	24V/Air	H	38.6	50	2850	275010001675
CSCCM344	250	275	313	344	NTA855-D(M)		140× 155	14.5: 1	14	24V/Air	H	38.6	63	2850	275010001675
CSCCM385	280	308	350	385	NTA855-D(M)		140× 152	14.5: 1	14	24V/Air	H	38.6	70	2850	275010001675
CSCCM413	300	330	375	413	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	71	3230	305010001725
CSCCM481	350	385	438	481	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	81	3230	305010001725
CSCCM550	400	440	500	550	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	93	3360	320010001725
CSCCM688	500	550	625	688	KT38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	121	8100	400017001725
CSCCM825	600	660	750	825	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	146	8100	400017001725
CSCCM963	700	770	875	963	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	170	8300	410017001725
CSCCM1100	800	880	1000	1100	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	194	8600	410017001725
CSCCM110	80	88	100	110	6BT5.9-D(M)	6 Cylender Straight	102× 120	16.5: 1	5.9	24V/Air/Spring	H	16.3	19	1360	23808101200
CSCCM193	140	154	175	193	6CTA8.3-D(M)	6 Cylender Straight	114× 135	16.8: 1	8.3	24V/Air/Spring	H	25	34	1680	25008501230
CSCCM124	90	99	113	124	6BT5.9-D(M)	6 Cylender Straight	102× 120	16.5: 1	5.9	24V/Air/Spring	H	16.3	21	1360	23808101200
CSCCM220	160	176	200	220	6CTA8.3-D(M)	6 Cylender Straight	114× 135	16.8: 1	8.3	24V/Air/Spring	H	25	39	1680	25008501230

Terms:

Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier.

Payment term: T/T, 30% deposit, 70% paid before delivery out of factory

Delivery/Manufuacuring time: 15-40 days after down payment

Fuzhou Century Sea Co., Ltd is a global leading manufacturer of diesel generator sets, alternator and transformer. We are located in Fuzhou, near fuzhou sea port and Fuzhou airport.
We supply diesel generators set, alternator, light tower, trailer genset, marine generators and transformer. The power is range from 10kVA to 3000kVA. We can provide diesel generator with cummins, Duetz, Doosan Daewoo, China egine with stamford, Leory somer alternator, etc. We also manufacture alterantor and medium frequency inverter by ourself. Besides, we have ability to customize gensets according to customers' special demands.

Dedicated to strict quality control and thoughtful customer service, our generator sets have been exported to Europe, South America, Africa, etc. We'd like to join hands with friends from all over the world in different domains on the basis of equality and mutual benefits. With principle of "credit today is future tomorrow", we are looking for agents and talents to join with us and create a great future.

Why to choose CSCPOWER?
1. Army quality, reasonable price
2. Quick delivery time
3. Excellent pre-sale and after sale serice
4. Strong technical support
