Prod Model: |
TC625SH |
Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Micro-Computer Control Automatic Diesel Generator |

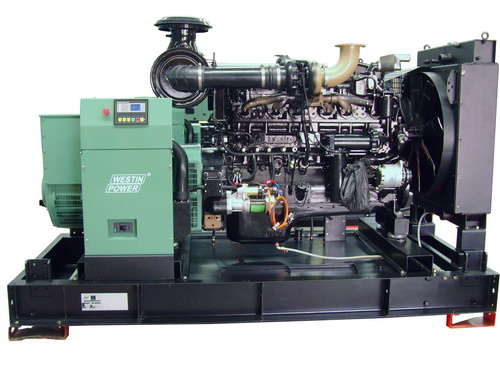

Product Description
Industrial water-cooled diesel engine(CUMMINS China)
Single bearing alternator with insulation class H and IP 23(STAMFORD)
Standby power at 60Hz 500kW/ 625KVA
Prime power at 60Hz 450kW/ 562KVA
50 Centigrade ambient temperature radiator with double deck
Electric starter & charge alternator 24v D. C.
Electronic governor
Standard air filter
WESTINPOWER TELES control panel
Schneider/ABB circuit breaker
Steel base frame with anti vibration mounting
Daily fuel tank (optional for 550KVA or above models)
9dB muffler
24V batteries
Flexible fuel lines & lube oil drain cock
User's manual
Weight: 4, 401 KG (open type)
Dimension: 3475*1450*2000(MM, open type)
Westinpower CUMMINS Generator Set Technical Data (60Hz) |
Model | Engine Model (CUMMINS) | Output 127/220v-60Hz/1800rpm | Fuel consumption at full load (L/h) | Weight (kg) | Dimension LxWxH (mm) |
KVA | KW |
PRP | ESP | PRP | ESP |
TC50SH | 4BT3.9-G2 | 43 | 48 | 35 | 38 | 9 | 872 | 1870x980x1290 |
TC66SH | 4BTA3.9-G2 | 60 | 66 | 48 | 53 | 12 | 906 | 1870x980x1290 |
TC75SH | 4BTA3.9-G2 | 67 | 75 | 54 | 59 | 13 | 937 | 1870x980x1290 |
TC100SH | 6BT5.9-G2 | 93 | 103 | 75 | 82 | 19 | 1182 | 2170x1030x1380 |
TC125SH | 6BT5.9-G2 | 112 | 125 | 90 | 100 | 23 | 1217 | 2170x1030x1380 |
TC145SH | 6BTA5.9-G2 | 131 | 145 | 105 | 115 | 27 | 1271 | 2170x1030x1380 |
TC160SH | 6BTAA5.9-G2 | 147 | 162 | 118 | 130 | 30 | 1379 | 2380x1110x1400 |
TC200SH | 6CTA8.3-G2 | 181 | 200 | 145 | 160 | 35 | 1709 | 2380x1110x1510 |
TC220SH | 6CTA8.3-G2 | 200 | 220 | 160 | 176 | 39 | 1769 | 2380x1110x1510 |
TC260SH | 6LTAA8.9-G2 | 237 | 260 | 190 | 210 | 48 | 1888 | 2550x1250x1650 |
TC290SH | 6LTAA8.9-G2 | 268 | 295 | 215 | 236 | 55 | 2008 | 2550x1250x1650 |
TC345SH | NTA855-G1 | 312 | 344 | 250 | 275 | 64 | 3137 | 3100x1200x1900 |
TC375SH | NTA855-G1B | 344 | 375 | 275 | 300 | 70 | 3137 | 3100x1200x1900 |
TC500SH | KTA19-G2 | 450 | 500 | 360 | 400 | 92 | 4167 | 3475x1450x2000 |
TC625SH | KTA19-G4 | 562 | 625 | 450 | 500 | 115 | 4401 | 3475x1450x2000 |
TC750SH | KTAA19-G6A | 625 | 750 | 540 | 600 | 138 | 4335 | 3650x1560x2369 |
TC850SH | KT38-G | 775 | 850 | 620 | 680 | 158 | 7061 | 4460x1650x2369 |
TC1000SH | KTA38-G2 | 906 | 1000 | 725 | 800 | 214 | 7950 | 4460x1650x2369 |
TC1250SH | KTA38-G4 | 1137 | 1250 | 910 | 1000 | 232 | 8166 | 4460x1650x2369 |
Guangdong Westinpower Co., Ltd. started our operations in 1992 when we opened up our Power Tools business in the China markets and we chose to specialize in generator manufacturing and services. Over the years, Westinpower has established our position in the industry as one of the most trusted manufacturers of diesel generating sets and auxiliary products in China. With our experience, expertise, quality, innovation and values, we actively keep in pace with the world' level, providing a range of world-class generating sets and turnkey services.
Our generating sets are targeted at Agriculture, Telecom, Power plants, Construction, Civil Aviation, Mining, Energy Sources, Oil & Gas and Environment Protection, and other fields. The applications demand extremely robust and reliable power for continuous duty operation. The scope of our gensets ranges from 7.5kVA to 2, 200kVA both for common and specific purpose. Westinpower supplies the energy source which suits you wherever you need. We have a wide network of agents, distributors, and offices, covering all over the main cities of China including Beijing, Shanghai, and Guangzhou. Furthermore, Westinpower has developed its export business in Asia and Africa markets, such as Pakistan, Afghanistan, Nigeria, and Congo.
Westinpower's generator accompanies you in each of your successful projects. In addition, our network of all over the world is backed up by a group of engineers working around the clock who have specific skills to perform installation, commission, maintenance, and commercial operations. Our mechanic and electrical engineers represent a wealth of knowledge and experience, who support Westinpower generating sets in every field.
Today, Westinpower is recognized for our high standard of service, proven product reliability, business trust and customer orientation.
