| Prod Model: |
6BT5.9 GM83/ MP-H-70-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Iron and Steel |
| Marine Parts: |
Marine Generator |
| Engine: |
4 Stroke |
| Engine Type: |
Inboard |
| Certification: |
BV, CCS |
| Type: |
Inland and Coastal Boats |
| Usage: |
Fun, Fishing, Trade, Game, Drifting |
Product Description

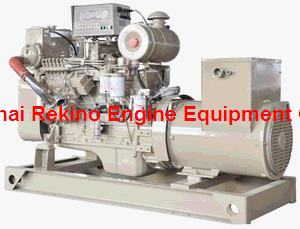

We can offer the Cummins 87kVA / 70KW marine diesel generator set / genset.
It is installed on Cummins marine engine and Marathon alternator.
The Cummins 40kVA marine generator can be applied for fishing boat, Barge boat, Tugboat
It can be used for maine main generator or marine emergency generator
Cooling mode can provide heat exchanger or radiator cooling.
Marine alternator can provide STAMFORD, MARATHON, Siemens, enclosure class can select IP23 or IP44.
It can provide CCS, BV, ABS, GL, LR, DNV and other specific classification certificate.
|
Type of Gen-set |
Cummins marine diesel generator set |
|
Rated Capacity(KVA) |
87 |
|
Rated Power(kW) |
70 |
|
Type of Alternator |
MP-H-70-4 |
|
Type of Diesel Engine |
6BT5.9-GM83 |
|
Power of Diesel Engine(kW) |
83 |
|
Diesel Engine Cooling Mode |
Heat Exchanger or Radiator Cooling |
|
Rated Voltage(V) |
380 / 400 / 415 |
|
Rated Current(A) |
90 |
|
Rated Frequency(Hz) |
50HZ |
|
Power Factor(Lagging) |
0.8 |
|
Phase & Connection |
Three Phases & Three Wires, Y Connection |
|
Rated Speed(r/min) |
1500 |
|
Fuel Consumption(g/kW.h) |
≤225 |
|
Starting Mode |
Electric Starting \ Air Starting or Spring Energy-Saving Device Starting |
|
Weight of Gen-set(kg) |
1200 |
|
Overall Dimension (mm) |
1665*582*908 |
