| Prod Model: |
8.8-128kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase Connection: |
3-Phase 4-Wire |
| Frequency: |
50Hz |
| Exciation: |
Brushless |
| Starting System: |
Electric Start |
| Warranty: |
Running for One Year |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Portable |
| Output Type: |
AC Three Phase |
Product Description

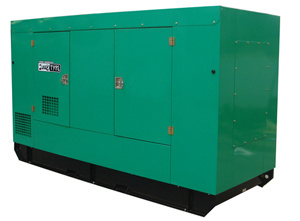

Specification of Cummins Diesel Generator--Powerd by Cummins
| Model | 40GF | 50GF | 64GF | 75GF | 90GF | 110GF |
| Alternator Model | TFW-40 | TFW-50 | TFW-64 | TFW-75 | TFW-90 | TFW-110 |
| Rated Power(kw) | 40 | 50 | 64 | 75 | 90 | 110 |
| Rated Current(A) | 72 | 90 | 115.2 | 135 | 162 | 198
|
| Rated Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 |
| Rated Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Power Factor(cos) | 0.8(Lag) | 0.8(Lag) | 0.8(Lag) | 0.8(Lag) | 0.8(Lag) | 0.8(Lag) |
| Excitation Model | Brushless self excitation with AVR | Brushless self excitation with AVR | Brushless self excitation with AVR | Brushless self excitation with AVR | Brushless self excitation with AVR | Brushless self excitation with AVR |
| Engine Model | 4BTA3.9-G2 | 4BTA3.9-G | 6BT5.9-G | 6BT5.9-G | 6BTA5.9-G | 6BTAA5.9-G |
| Cylinder numbers | 4 | 4 | 6 | 6 | 6 | 6 |
| Air intaker | Turbocharged and air intercooled | Turbocharged and air intercooled | Turbocharged | Turbocharged | Turbocharged and air intercooled | Turbocharged and air intercooled |
| Rated/Max Output(Kw) | 50/55 | 50/55 | 86/92 | 86/92 | 110/120 | 120/132 |
| Starter System | Electric(12V)/Electric(24V) | Electric(12V)/Electric(24V) | Electric(12V)/Electric(24V) | Electric(12V)/Electric(24V) | Electric(12V)/Electric(24V) | Electric(12V)/Electric(24V) |
| Model | 120GF | 140GF | 160GF | 200GF | 230GF | 280GF | 360GF | 400GF | 500GF |
| Standby power(kw/kva) | 132/150 | 150/175 | 180/220 | 220/245 | 250/310 | 330/415 | 400/440 | 440/550 | 550/600 |
| Prime power(kw/kva) | 120/140 | 140/155 | 160/200 | 200/220 | 230/280 | 280/350 | 360/400 | 400/500 | 500/550 |
| Rotation(rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Engine | 6CTA8.3-G2 | 6CTA8.3-G2 | 6CTAA8.3-G2 | 6LTAA8.3-G2 | NTA855-G1a | NTA855-G2A | KTA19-G3 | KTA19-G4 | KTAA19-G6A |
| Original | Hubei China | Hubei China | Hubei China | Hubei China | Hubei China | Chongqing China | Chongqin,china | Chongqin,china | Chongqin,china |
| Bore/ stroke | 114X135 | 114X135 | 114X135 | 114X135 | 140X152 | 140X152 | 159X159 | 159X159 | 159X159 |
| Cylinders | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Start mode | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start | DC 24v electric start |
| Cooling | Closed water cooled | Closed water cooled | Closed water cooled | Closed water cooled | Closed water cooled | enclosed-water circulation | enclosed-water circulation | enclosed-water circulation | enclosed-water circulation |
| speed governing |
|
|
|
|
| electric | electric | electric | electric |
| Air-intake | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled | Turbo charger and intercooled |
| Alternator | Stamford | Marathon | Marathon | Stamford | Marathon | Marathon | Marathon | Stamford | Stamford |
| Model | UCI274F | MP-140-4 | MP-160-4 | UCD274J | MP-230-4 | MP-270-4 | MP-350-4A/S | HCI544C | HCI544F-S |
| Original | Wuxi,china | Shanghai China | Shanghai China | Wuxi,china | Shanghai China | Shanghai China | Shanghai China | Wuxi,china | Wuxi,china |
| Rated power(kw/kva) | 130/162.5 | 140/175 | 160/200 | 200/250 | 230/288 | 280/350 | 350/400 | 400/500 | 500/550 |
| Excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation | brushless self-excitation |
| Voltage regulation | AVR | AVR | AVR | AVR | AVR | AVR | AVR | AVR | AVR |
| Insulation |
|
|
|
|
| H | H | H | H |
| Protection |
|
|
|
|
| IP22 | IP22 | IP22 | IP22 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
