North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Detail:
45 Days
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

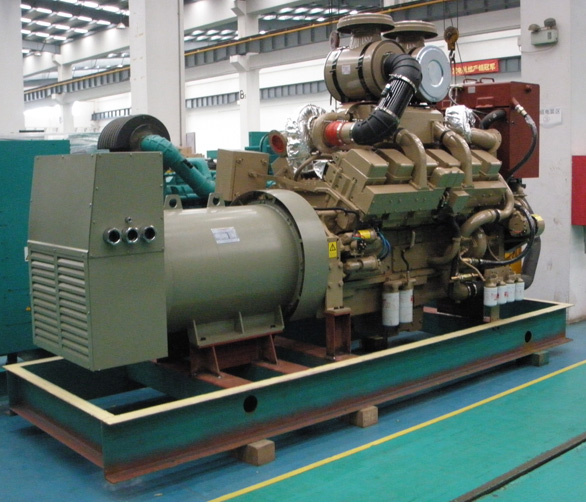

Cummins CCEC marine generator
Cummins series marine diesel generator sets have features of compact structure, large power, low oil consumption, low discharge, low noise, reliable performances, and long services life. Its professional service networks are spread across the country and world, which can provide 24 hours after service and assure the supplying of accessories in time.
Features:
Gen-set can use for Marine gen-set, Marine emergency gen-set or Harbor gen-set.
We use the marine synchronouse Alternator with the brands of Stamford, Marathon and etc. Also can be supplied at the request of customers.
Parallel connection: Two and more normal marine generator sets can transfer loading without stoping, and can realize parallel.
Protection function: Thare are over-limit alarming for speed, oil pressure, cooling water temperature and oil temperature.
Can provide CCS, BV, ABS, DNV classification certificate.
Note: 1. Above that technical specifications are all 50Hz, rated voltage is 400/230V, the power factor is 0.8(lag), and the connecting type is 3 phase and 4 wires. The 60Hz diesel generator sets can be supplied according to the customers' requirements. 2. Specifications may change without notice.
Cummins KTA38(M) Power range: 500kw~880kw
Shanghai monarch power engineering limited
Cummins marine generator
Genset Model
CCFJ500-Z-W
CCFJ600-Z-W
CCFJ700-Z-W
CCFJ800-Z-W
Cummins marine generator
Prime Power
500kW
600kW
700kW
800kW
Cummins marine generator
Standby Power
550kW
660kW
770kW
880kW
Cummins marine generator
Voltage(v)
400/230
400/230
400/230
400/230
Cummins marine generator
(Hz/ rpm)
50/1500
50/1500
50/1500
50/1500
Cummins marine generator
Diesel Engine Model
KTA38-D(M)
KTA38-D(M)
KTA38-D(M)
KTA38-D(M)
Cummins marine generator
Alternator
Marathon, Standford
Marathon, Standford
Marathon, Standford
Marathon, Standford
Cummins marine generator
Cylinder No.
12V
12V
12V
12V
Cummins marine generator
Bore & Stroke(mm)
159×159
159×159
159×159
159×159
Cummins marine generator
Comp. Ratio
15.5:1
15.5:1
15.5:1
15.5:1
Cummins marine generator
Displacement (L)
38
38
38
38
Cummins marine generator
Start Mode
24V/ Air
24V/ Air
24V/ Air
24V/ Air
Cummins marine generator
Insulation Grade
H
H
H
H
Cummins marine generator
Fuel Consumption Rate
213g/kW.h
214g/kW.h
213g/kW.h
213g/kW.h
Cummins marine generator
Lub Capacity (L)
135
135
135
135
Cummins marine generator
Dimensions (mm)
4000×1700×1725
4000×1700×1725
4000×1700×1725
4000×1700×1725
Cummins marine generator
(L×W×H)
Cummins marine generator
Net Weight (Kg)
8100
8100
8300
8600
Shanghai Monarch Power Engineering Limited has already established very close relationships with Cummins, Deutz, Isuzu, Lovol, Iveco, Nissan, Toyota and other manufacturers. We can also provide you with the complete series of engines with the brands above. The engines are used for marine propulsion, marine generators, industrial generators, construction engines, vehicle engines, agriculture engines, etc.
We has already established cooperation relationships with customers all over the world, with an experienced and professional staff group, as well as senior engineers, technicians and salesmen. Now our company is known as a leading manufacturer in supplying of diesel generators (for both industrial use and marine use).
We can provide you with generators which are approved by China Classification Society CCS. Our marine generator can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS, etc. With steady quality, quick and professional service, our company gains the general recognition from users at home and abroad.
We are sincerely looking forward to establishing business relationships with you for our mutual benefit.
Products of Monarch Power Limited dealing with
1) Diesel engine: CUMMINS B, C, ISBe, ISDe, ISLe, L, ISF2.8/3.8 and DEUTZ BFM1015, FL413 & FL513, TBD234 and 226B for vehicle; CUMMINS B, C, KTA, N and DEUTZ TBD234, 226B for marine; CUMMINS B, C and DEUTZ FL413&FL513, FL912&913, TBD234 and 226B for genset; CUMMINS B, C, M11 and DEUTZ FL413&FL513, FL511, FL912&FL913, 226B, BF4M1013&BF6M1013, BF1015, TBD234 for industry.
2) Engine spare parts and machinery components: Genuine, OEM and aftermarket parts for the CUMMINS, DEUTZ, KOMATSU and some Japanese serial car. Genuine and Chinese-made machinery parts for the heavy mchine. Cummins Marine Engine Parts.
3) Generator set: CUMMINS diesel generator set for landuse and marine; CUMMINS natural gas and biogas generator set. DEUTZ diesel generator set
Monarch Power Limited welcome to customers from all around the world to visit and expect to build long and friendly business relations with you and your company in the near future!
