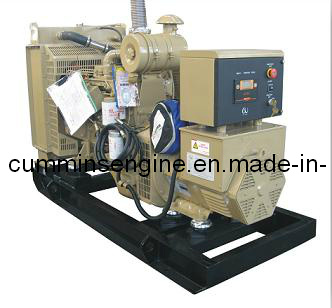

| Prod Model: |
KC33GFW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Parameter:
1. Power range(Standby Power): 22kw to 1000kw.
2. Rating Voltage: 380/220V(adjustable)
3. Frequency: 50HZ/60HZ.
4. Mode of connection: 3 phases 4 lines.
5. Power factor: 0.8(lagging).
6. Protection standard: IP21-23.
7. Insulation grade: H.
8. Engine Model: Cummins
9. Alternator: Marathon, Stamford, Faraday
10. Control system: KC600 or KC700(Self produce); Deepsea5110/520; SPG-120(ITALY)
Generator set basic characters:
Cummins engine: 4BT3.9-G 1/2
1) Heavy loads endurable, four-stroke industrial using engine
2) Excellent transient response
3) Fuel system: GAC Governor /RSV governor(can be choosed by customer ) AD fuel injection pump.
4) Start feature: Without aiding start, -12 start; With aid starting, -35 Starting.
5) Oil consumption: Low oil strcture, compact, minimum spare parts, light weitht.
Alternator:
1. Variety: Customer can choose under different specification: Differ output power, single Phase or three Phase, two pole or four pole, single surpport or double support, for mainland or marine, and customer also can choose suitable transition connector or coupler.
2. Control system: Auto-voltage regulator have wet- proof, salt-proof, vibration-isolation fuctions.
3. Excition system: Any choosed permanent magnet alternator can solely supply electricity for excition system.
4. Insulation and proof: All alternator have H grade insulation and standard bad wether protection functions.
Highly integrated control system:
Three working model for choose: Stopage, automatic and hand startup model
Main fuction: Genset start, stopage fuction, displaying genset three Phase-voltage, current, engine water temperature, oil pressure, RPM and so on. And the governor is GAC governor.
Protection: When high water temperature, low oil pressure, over-speed, can automatically protect stopage, with the function of breakdown displaying.
Optional:
1. Sound-proof canopy.
2. Canopy with wheels.
3. Container type canopy
|
Generation Set |
Model |
KC20GFW |
KC30GFW |
KC45GFW |
KC75GFW |
KC90GFW |
KC100GFW |
KC145GFW |
KC200GFW |
|
|
Prime Power Rating Kw |
20 |
30 |
45 |
75 |
90 |
100 |
140 |
200 |
|
|
Standby Rating Kw |
22 |
33 |
50 |
80 |
100 |
110 |
150 |
200 |
|
|
Prime Power Rating Current (Amps) |
36 |
54 |
81 |
135 |
162 |
180 |
261 |
360 |
|
|
Maker |
NEW DIESEL MACHINERY CO.,LTD |
|
|
Dimension (L*W*H) |
1689*710*1150 |
1830*710*1150 |
2100*800*1450 |
2500*800*1500 |
2500*800*1500 |
2600*900*1500 |
2650*900*1600 |
2650*990*1600 |
|
|
Specific Fuel Consumption @ standby rating (Liter/hr) |
7.5 |
10.3 |
14.1 |
25 |
30 |
34 |
45 |
58 |
|
Engine |
Maker |
DCEC (Dongfeng Cummins Engine Company, Ltd.) |
|
|
Model |
4B3.9-G2 |
4BT3.9-G2 |
4BTA3.9-G2 |
6BT5.9-G2 |
6BTA5.9-G2 |
6BTAA5.9-G2 |
6CTA8.3-G2 |
6LTAA8.9-G2 |
|
|
Standby/Prime power (kw) |
27/24 |
40/36 |
55/50 |
100/90 |
120/110 |
130/120 |
180/163 |
240/220 |
|
|
Cooling |
Water-Cooled |
|
|
Aspiration |
Natural |
Turbocharged and Aftercooled |
|
|
Aftercooling |
None |
None |
JW |
None |
JW |
CAC |
JW |
CAC |
|
|
No. of Cylinder |
4 |
4 |
4 |
6 |
6 |
6 |
6 |
6 |
|
|
RPM |
1500 |
|
|
Bore (mm) |
102 |
102 |
102 |
102 |
102 |
102 |
114 |
114 |
|
|
Stroke (mm) |
120 |
120 |
120 |
120 |
120 |
120 |
135 |
145 |
|
|
Displacement (Liter) |
3.9 |
3.9 |
3.9 |
5.9 |
5.9 |
5.9 |
8.3 |
8.9 |
|
|
Fuel |
0# |
|
|
Governor |
GAC electronic |
|
|
Starting System |
24V Electrical |
|
|
Lub Oil Specification |
15W40-CF |
|
|
Lub Oil Capacity (Liter) |
10.9 |
10.9 |
10.9 |
16.4 |
16.4 |
16.4 |
23.8 |
27.6 |
|
|
Coolant Capacity (Liter) |
8 |
8 |
8 |
9.9 |
9.9 |
9.9 |
12.3 |
11.1 |
|
|
Exhaust Pipe Size (mm) |
67 |
67 |
67 |
67 |
67 |
67 |
89 |
89 |
|
Alternator |
Maker (Brand) |
Newage (Stamford) |
|
|
Frame Size |
BCI184F |
BCI184J |
UCI224E |
UCI274C |
UCI274D |
UCI274E |
UCI274G |
UCDI274K |
|
|
Voltage |
380-415 V |
|
|
RPM/Frequency |
1500/50hz |
|
|
No. of Phase |
3 phase |
|
|
Power Factor |
0.8 (lag) |
|
|
Automatic Voltage Regulator |
SX460 (+/- 1.5%) |
AS440 (+/- 1.5%) |
|
|
Class of Insulation |
H |
|
Control Panel |
Make |
KCME (Xiangfan Kangchen Machine & Electricity Engineering Corp, Ltd.) |
|
|
Controller Brand/Type |
KC800 |
|
|
Breaker Rating (Amps) |
50 |
60 |
100A |
180 |
200 |
225 |
315 |
400A |
|
Fuel Tank |
Recom. capacity for running (hrs) |
8 |
|
Battery |
Rating (AH)--24V |
120AH |
165AH |
200AH |
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
