Prod Model: |
20KW-2000KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Range: |
20kw-2000kw |
Frequency: |
50/60Hz |
Engine: |
Cummins |
Rated Voltage: |
220/380V, 230/400V, 110/220V, 240/416V |
Rated Speed: |
1500rpm/1800rpm |
Delivery Time: |
20 Days |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Self-Starting Diesel Generator |
Output Type: |
AC Three Phase |
Product Description

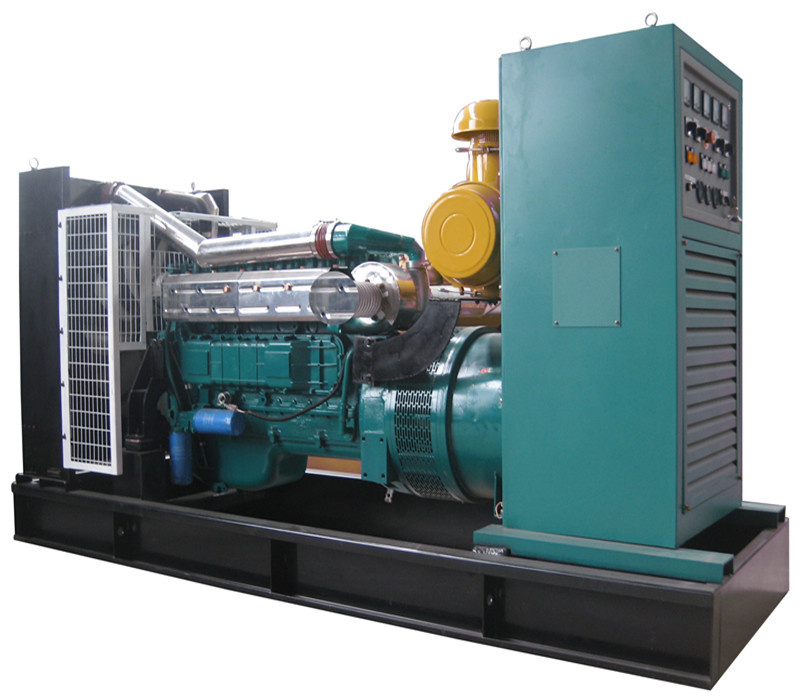

Cummins power generator
CUMMINS Series Power Diesel Generator set/Silent Diesel Generator/Soundproof Generator/Soundproof Diesel genset/Power Generator/Gensets, with compacted structure and best configuration.
Specifications:
. CE Certificate
. ISO9001: 2008
. High quality with competitive price
. Global joint warranty
Engine Features:
I. Cummins industrial diesel engine.
II. Multi-cylinder in-line or veer engine, 4-stroke, direct injection.
III. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler.
IV. Machinery or electronic governing.
V. Fuel injection pump.
VI. Electric motor starting system.
VII. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner.
VIII. Low discharge, and low fuel consumption.
IX. Installed conveniently and maintain easily.
Alternator Features:
I. Stamford, Leroy Somer, Mecc alt, Lisite alterators.
II. Brushless, 4 poles, rotation magnet.
III. IP23(NEMA1) enclose is standard for all industrial alternators.
IV. H class insulation system.
V. AVR self-regulated, voltage regulation rate: ≤ ± 1%.
VI. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
VII. Wide range of flange adaptors and single bearing disc coupling.
VIII. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528.
IX. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof.
Supply Scope:
I. Brand-new engine, with start motor.
II. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
III. Heavy duty steel channel base frame.
IV. Heavy duty industrial type silencer with flexible bellow.
V. Vibration damping supports between Engine/Alternator and base frame.
VI. Radiator with safety guard.
VII. Automatic strat control panel, Smartgen brand HGM6110 model as standard supply.
VIII. High capacity lead acid battery c/w battery cables.
IX. 3-pole output circuit breaker.
Soundproof/Silent Box:
I. Excellent ventilation
II. Oil tank mounted on base frame for 12 Hours working
III. Highly Corrosion Resistant construction
IV. Excellent Access for Maintenance
V. Security and Safety
VI. 1m<80DBA / 7m<70DBA
Control Panel:
I. Automatic control panel (AMF), LCD display
II. Four protection systems
III. Emergency stop
Optional:
I. Trailer type
II. Soundproof / water proof
III. ATS (automatic transfer switch)
IV. Parallel system
V. Remote system
Commercial Conditions:
. Port of loading: Qingdao port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Weichai power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Model |
Output power |
Rated
current(A) |
F/R
HZ/RPM |
Engine |
Size
(L×B×H)mm |
Weight(Kg) |
KVA |
KW |
XZ24D |
30 |
24 |
43 |
50/1500 |
4B3.9-G2 |
1620×610×1380 |
610 |
XZ30D |
37.5 |
30 |
54 |
50/1500 |
4BT3.9-G2 |
1680×650×1400 |
680 |
XZ50D |
62.5 |
50 |
90 |
50/1500 |
4BTA3.9-G2 |
1760×710×1400 |
850 |
XZ75D |
93.75 |
75 |
135 |
50/1500 |
6BT5.9-G2 |
2150×830×1480 |
950 |
XZ100 |
125 |
100 |
180 |
50/1500 |
6BTA5.9-G2 |
2250×920×1600 |
1250 |
XZ120 |
150 |
120 |
216 |
50/1500 |
6BTAA5.9-G2 |
2250×920×1600 |
1350 |
XZ150 |
187.5 |
150 |
271 |
50/1500 |
6CTA8.3-G2 |
2400×1080×1600 |
1590 |
XZ160 |
200 |
160 |
288 |
50/1500 |
6CTAA8.3-G2 |
2600×1180×1600 |
1680 |
XZ180 |
225 |
180 |
324 |
50/1500 |
NT855-G |
3000×1180×1650 |
2400 |
XZ200B |
250 |
200 |
360 |
50/1500 |
MTA11-G2A |
3000×1180×1650 |
2400 |
XZ220 |
275 |
220 |
396 |
50/1500 |
NTA855-G1 |
3000×1180×1700 |
2600 |
XZ240 |
300 |
240 |
432 |
50/1500 |
NTA855-G1A |
3100×1180×1700 |
2680 |
XZ250 |
312.5 |
250 |
450 |
50/1500 |
MTAA11-G3 |
3100×1250×1650 |
2950 |
XZ260C |
325 |
260 |
468 |
50/1500 |
NTA855-G2 |
3100×1300×1700 |
3100 |
XZ300C |
375 |
300 |
540 |
50/1500 |
NTA855-G4 |
3200×1380×1750 |
3200 |
XZ320 |
400 |
320 |
576 |
50/1500 |
NTAA855-G7 |
3350×1450×1750 |
3250 |
XZ350 |
437.5 |
350 |
630 |
50/1500 |
NTAA855-G7A |
3350×1450×1750 |
3250 |
XZ400 |
500 |
400 |
720 |
50/1500 |
KTA19-G3 |
3400×1500×1780 |
3300 |
XZ420 |
525 |
420 |
756 |
50/1500 |
KTA19-G4 |
3450×1500×1800 |
3300 |
XZ450 |
562.5 |
450 |
900 |
50/1500 |
KTAA19-G5 |
3500×1600×1850 |
3500 |
XZ460 |
575 |
460 |
910 |
50/1500 |
KTAA19-G6 |
3600×1600×1850 |
3650 |
XZ470 |
587.5 |
470 |
920 |
50/1500 |
KTA19-G8 |
3600×1600×1850 |
3650 |
XZ500C |
625 |
500 |
990 |
50/1500 |
KTAA19-G7 |
3650×1650×1850 |
3750 |
XZ550 |
687.5 |
550 |
1000 |
50/1500 |
KT38-G |
3700×1650×1900 |
4000 |
XZ600 |
750 |
600 |
1188 |
50/1500 |
KTA38-G2 |
3800×1700×1980 |
4200 |
XZ650 |
812.5 |
650 |
1280 |
50/1500 |
KTA38-G2B |
4300×1850×2200 |
4800 |
XZ800 |
1000 |
800 |
1510 |
50/1500 |
KTA38-G5 |
4500×1950×2350 |
5600 |
XZ900A |
1125 |
900 |
1780 |
50/1500 |
KTA38-G9 |
4700×2050×2450 |
8500 |
XZ970 |
1212.5 |
970 |
1980 |
50/1500 |
KTAA38-G9A |
4800×2050×2450 |
8900 |
XZ1000 |
1250 |
1000 |
1890 |
50/1500 |
KTA50-G3 |
5400×2150×2550 |
9800 |
1320GFD |
1650 |
1320 |
2367 |
50/1500 |
TBD620V12G3 |
6040×2530×2650 |
11000 |
1496GFD |
1870 |
1496 |
2692.8 |
50/1500 |
TBD620V16G1 |
7650×2960×3060 |
13500 |
1584GFD |
1980 |
1584 |
2851.2 |
50/1500 |
TBD620V16G2 |
7650×2960×3060 |
13500 |
1760GFD |
2200 |
1760 |
3168 |
50/1500 |
TBD620V16G3 |
7650×2960×3060 |
14200 |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
