| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea, air or land |
| Min Order: | 1set |

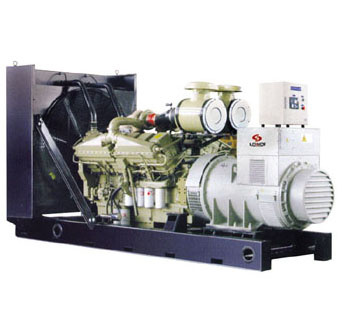

| Prod Model: | LD-SC100 |
|---|
| Prime Power | 100KVA / 80KW |
| Standby Power | 110KVA / 88KW |
| Rated Voltage | 400 / 230V |
| Rated Current | 144A |
| Rated Frequency | 50HZ / 60HZ |
| Rated Speed | 1500RPM / 1800RPM |
| Alternator Model | Stamford / UCI274C |
| Connecting Method | 3 phase and 4 wires, Y type connecting. |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Exciter Type | Brushless, self-exciting |
| Insulation Class | H |
| Engine Model | Cummins / 6BT5.9-G |
| Number of Cylinder | 6-in line |
| Displacement | 5.9L |
| Bore*Stroke | 102*120 (MM) |
| Compression Ratio | 16.5 |
| Governor Type | High-precision electric speed governor |
| Noise Level Db(A)7m | 70 |
| Dry Weight | 1150 KG |
| Dimension (L*W*H) | 2270*830*1570 (MM) |
Accessories | 24Vstarter maintenance-free battery and connecting cable, a suit of ripple flex exhaust pipe, exhaust siphon, muffler, a set of spare parts. |
