| Prod Model: |
J37C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Genset Model: |
J37c |
| Model: |
4bt3.9-G1 |
| Bore X Stroke: |
102×120(mm) |
| Max Power: |
36kw |
| Max. Sump Capacity: |
9.6L |
| Air Intake Method: |
Turbocharged |
| Cooling Method: |
Air/Water |
| 110% Over-Load Fuel Consumption: |
8.8L/H |
| 100% Over-Load Fuel Consumption: |
8.0L/H |
| 75% Over-Load Fuel Consumption: |
6.1L/H |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Stroke: |
Four Stroke |
| Output Type: |
AC Three Phase |
| Installation Method: |
Fixed/Portable |
| Conditions Of Use: |
Land/Marine/Trailer |
Product Description

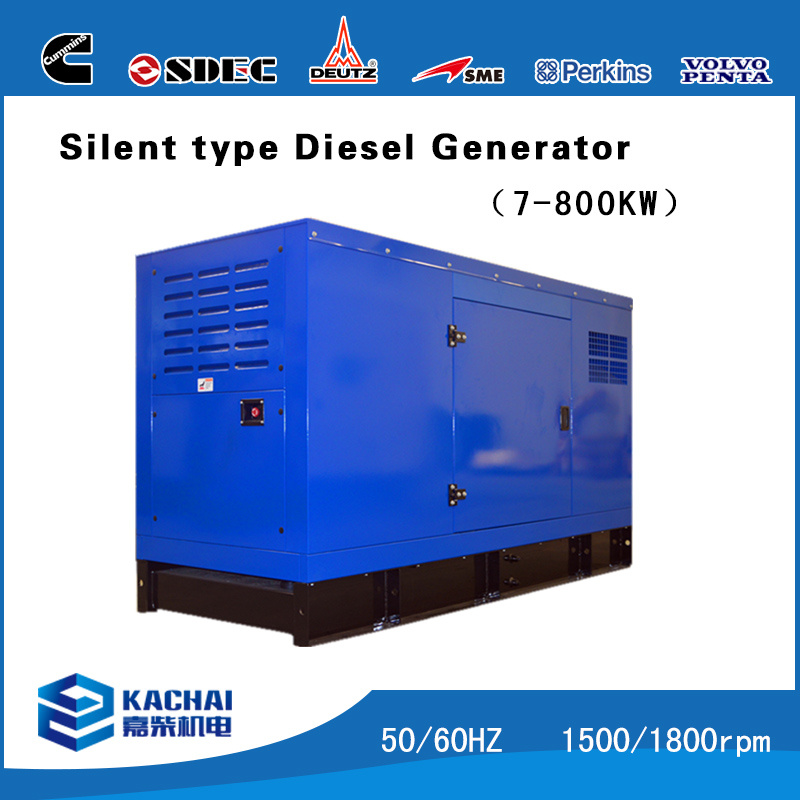

Cummins Silent Diesel Engine Power Electric Generator with jinhua
Cummins Diesel Engine Generator
| cummins Diesel Generator set |
| Manufacture | Hangzhou Kachai Electromechanical Equipment Co., Ltd |
| Genset Model | J37C |
Prime Power (50Hz/60Hz) 30KW/ 37KVA
Standby Power (50Hz/60Hz) 33KW/ 41KVA |
| Size and Weight |
| Open Type Overall Size: | 1920*750*1430(mm) |
| Weight: | 900kg |
| Engine: Cummins 4BT3.9-G2 |
| Alternator:Single-bearing ,IP23 Protection level |
| Radiator: 40 ºC Radiator Water Tank |
| Control Panel: Auto-start,Auto-protect LCD Screen |
| Breaker: Standard Three-pole Air Switch |
| Accumulator:12V Maintenance-free Battery 2 pcs |
| Absorber:Stainless Steel High-efficiency Absorber |
| Common Base: Steel Plate Base Plate |
| Auxiliary:Exhaust Bellows,Exhaust Bended Pipe |
| Industrial muffler and a set of attachment tool |
|
| Technical Parameters |
| Gen-set |
| Steady voltage adjustment rate (%) | ≤±1 |
| Voltage fluctuation rate (%) | ≤±0.5 |
| Transient voltage adjustment rate (%) | +20~-15 |
| Voltage stability time (s) | ≤1 |
| Steady frequency adjustment time (%) | ≤±1 |
| Frequency fluctuation rate (%) | ≤±0.5 |
| Transient frequency adjustment rate(%) | +10~-7 |
| Frequency stability time (s) | ≤3 |
| Waveform distortion rate (%) | ≤5 |
| Altitude (m) | ≤1000 |
| Relative air humidity (%) | ≤90 |
| Engine |
| Brand | Cummins |
| Origin | Chongqing |
| Model | 4BT3.9-G2 |
| Primary\Standby power (KVA) | 30/37 |
| Type | 4/vertical in-line |
| Start method | DC24VElectric start |
| Bore X Stroke (mm) | 102×120(mm) |
| 110% Over-load fuel consumption | 8.8L/h |
Our Services:
1.Before sale Service: we provide detailed product technical parameters for equipment choosing and system designing.
2.Onsale Service: 24 hours online support technical guidance, remote installment, maintenance ,technique instruction.
3.After-sale maintenance service:We create files for users and provide them follow-up service,regular return visit and permanent maintenance.
4.Spare parts supply:We provide all kinds of spare parts and technical support.
5.Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
JACA has been specialized in manufacturing diesel generators and accessories for more than 20years. It has knotted fast and extensive business ties with over 1000 clients both in China and abroad, and turned up as a leading player in the world generator area. JACA is the executive member of the China Chamber of Machnery & Electronics and an AAA grade company for bank credit entitled by the bank in China.
JACA has a wide range of qualified diesel generators for sale, including silent type diesel generator, open type diesel generator, portable diesel generator, trailer diesel generator, container diesel generator and diesel generator with Cummins, DEUTZ, Volvo, SME engine and Stamford, meccatte alternator and also with famous Chinese brand engines like SDEC, Kofo, Cangchai and etc.
JACA products are widely used in the application areas of industry, energy, chemistry, mine, hospital, building, transportation and water conservancy, etc. Power changes life! We are devoting ourselves to more power applications of diesel generator.
Customer first, good service, high quaity are our missions! We are looking forward to set up brand new business relationship with you in prosperous 2015!
