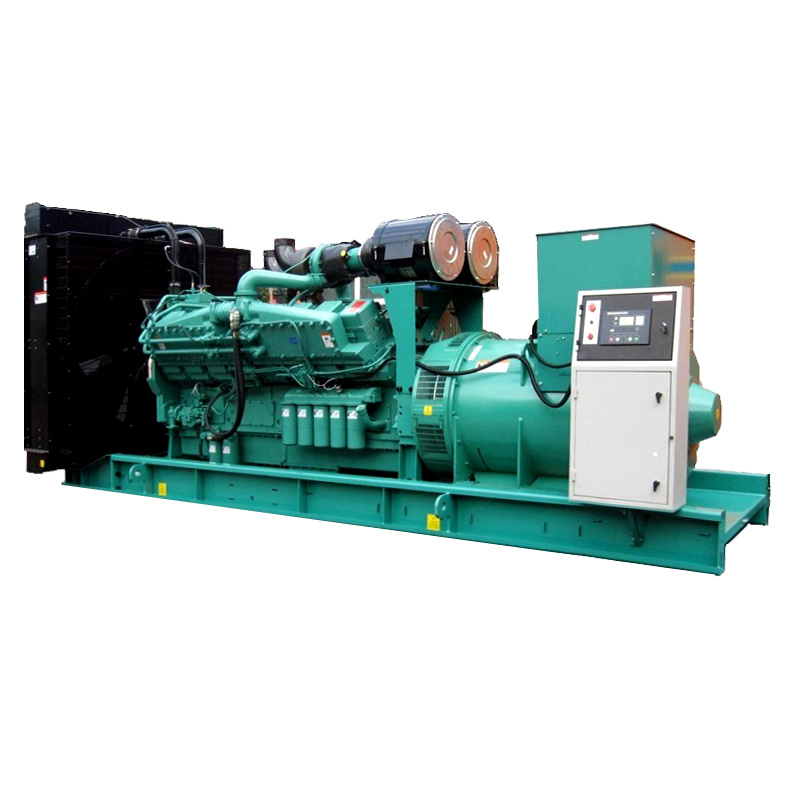

Cummins Super Power Generator (1400kVA)

Prod Model:	ETCG1400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	5070*2075*2200mm
Weight:	9980kg
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Self-Starting Diesel Generator
Output Type:	AC Three Phase

Product Description

Cummins Super Power Generator (1400kVA) Model: ETCG1400 Engine Mode: KTA50-G3 Prime Power: 1250kVA/1000KW Standby Power: 1400kVA/1120KW Options for the diesel generator set: Soundproof canopy type, trailer type 50Hz/60Hz, 1500rpm/1800rpm Single phase/three phase four lines Generator set feature: Engine Features: * Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances. * Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure. Diesel Engine Type: * Working cycle: Four-strokes * Combustion model: Direct injection * Starting way: DC Batteries * Cooling way: Radiator with fan & water tank The Electrical Performance of Diesel Generator Sets * Power factor: 0.8(lagging) * Connection way: Three phase four lines * Ambient temperature: -40C~52C * Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15% * Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7% * Voltage fluctuation rate: 0.5% * Frequency fluctuation rate: 0.5% AC Alternator * Standard brands: Etone, Leroy Somer * Optional brands: Marathon\Stamford * Excitation method: Brushless self-excitation * Isulation grade: H * Protection grade: IP21-IP23 * Electromagnetic interference: THF<2%, TIF<50 Control System * Standard matching brands: Smartgen and Comap * Optional brands: Harson, Deepsea * LED/Graphics/meters indicate unit running parameters * High water temperature, low oil pressure, low speed, overspeed and others alarm and protected * Automatically start switching when the main power service fails(optional) * Multi-gensets with automatic parallel connection control module(optional) * Functions of remote control interface, remote control, remote test and remote signal(optional).
