| Prod Model: |
OCL-33 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Dimension: |
1810*750*1350mm |
| Alternator: |
Leateck/Stamford |
| Controller: |
Smartgen/Deep Sea |
| Insulation Grade: |
H |
| Protection Grade: |
IP22 |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
Foshan Oripo Power Engineering co.,ltd.

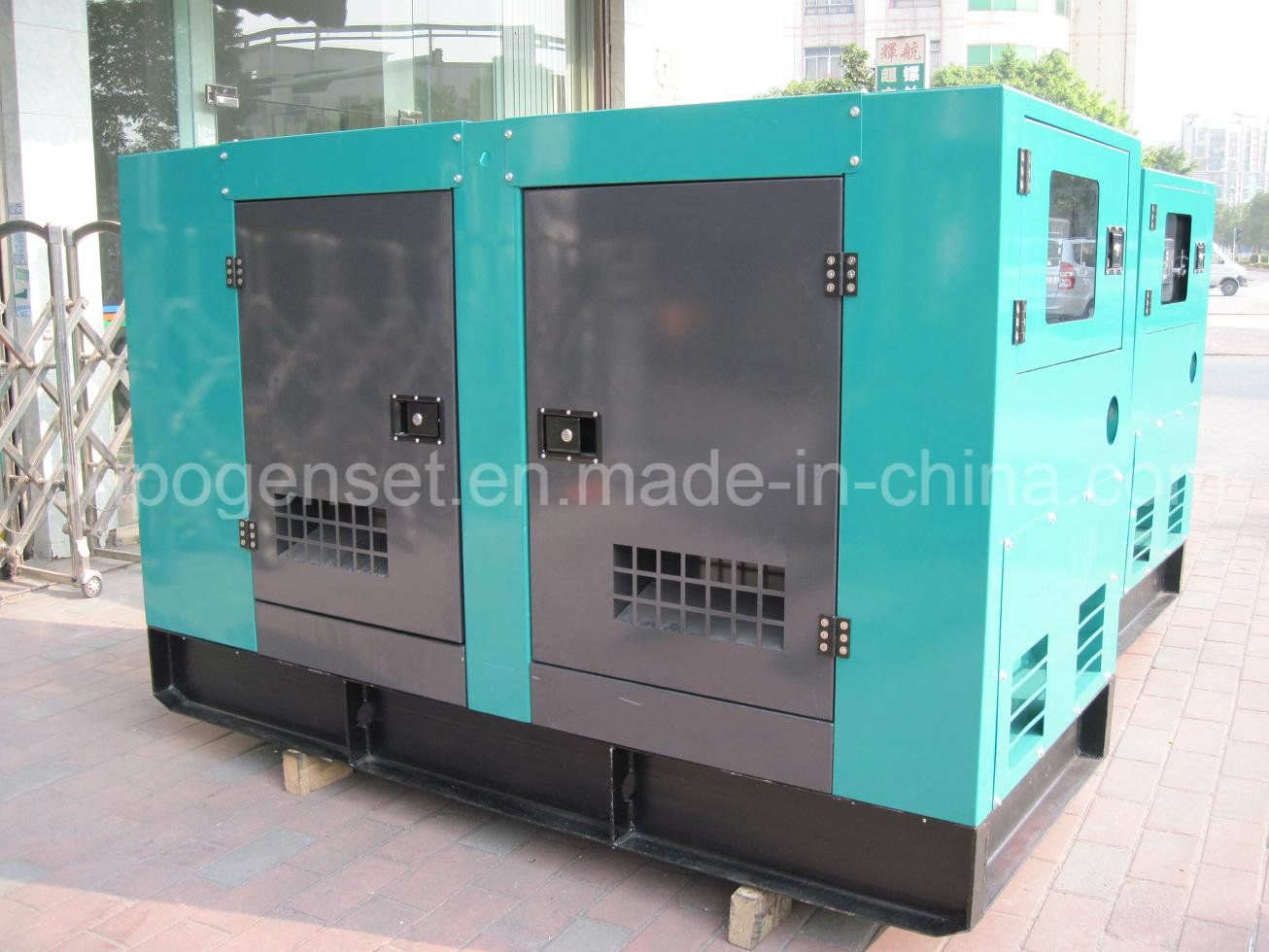

The Cummins engine powering ORIPO diesel generator set offer the best fuel economy, best warranty terms and lowest cost of maintenance thereby proving to be the most economical power solution. With the superior designed engine and world class alternator, the genset eqipped with intelligent controller for ease of use and monitoring generator performance.
The ORIPO Cumins diesel gensets are smaller and lighter than other engine genset in its class, thus giving you the advantage of optimizing your valuable space.
The ORIPO genset offers you environment friendly power and low operating costs. You can easy to get 24 hours CUMMINS service and its spare parts on line.
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL60-33 | 33 | 26 | 30 | 24 | 4B3.9-G2 | LTG184F1 | 6110 |
254/440VAC,60Hz,0.8PF (lag),Three phase four wires
Generator set specifications
| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 215(5) |
| Starting Battery Capacity ,A/hrhhr | 60*2 |
| Total Coolant Capacity ,L | 21 |
| Fuel Capacity (base tank),L | N/A |
Engine Data
| Model | 4B3.9-G2 |
| Type | In-line 4 Cylinder,4 Cycle |
| Displacement ,L | 3.9 |
| Compression Ration | 16.5:1 |
| Aspiration | Natural |
| Fuel System | PT Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 102*120 |
| Rated Speed ,rpm | 1800 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 11 |
| Coolant Capacity, L | 21 |
Alternator Data
| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
Exhaust System
| Exhaust air flow | 4.7m3/min |
| Exhaust Temperature | 410ºC |
| Max Back Pressure | 10kPa |
Air Intake System
| Max Intake Restriction | 5kPa |
| Burning Capacity | 2.2m3/min |
| Air Flow | 150m3/min |
Lubricant System
| Total Lubricant Capacity | 11L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 9.5L |
| Oil Pressure at Rated Speed | 345kPa |
Cooling System
| Total Coolant Capacity | 21L |
| Thermostat | 82-95ºC |
| Max Water Temperature | 104ºC |
|
|
|
| SMARTGEN CONTROLLER |
| 6110 Controller | 6120 Controller |
| CHARACTERISTICS: |
| ·LCD DISPLAY | Starting up can accumulate Max.999999 times |
| Using microprocessor as a core, Symbol LCD with backlight | ·Control protection: Automatic crank/stop of diesel engine, load |
| Display, two languages display, key touch operation | Transfer(ATS control) and completely faults display protection |
| ·RS485 PORT | ·With ETS, idle control, pre-eat control, raises speed control |
| Have a RS485 port with Modus communication protocol | functions and all types of them are belong to relay output |
| ·Adapt to 3 phase- 4 wires, single phase-2 wires or | ·Parameters setting: Allow user to modify setting and store |
| 2 phase- 3 wires(120/240V),50/60Hz AC power system. | Them by inside internal FLASH memory, the parameters can |
| ·Measure and display 3 phase voltage, 3 phase current, | not be lost even with power off. All of parameters can be set |
| frequency, power,etc.parameter of mains and gens: | not only from the front panel, but by PC via SG72(an adaptor, |
| MAINS GENS | USB-LINK-RS485) module; or, through RS485 port via PC |
| Line voltage(Uab,Ubc,Uca) Line voltage(Uab,Ubc,Uca) | ·Most of temperature, pressure, oil level sensor can be directly |
| Phase voltage(Ua,Ub,Uc) Phase voltage(Ua,Ub,Uc) | Used, and also user can define sensor curve by themselves |
| Frequency Hz Frequency Hz | ·Multiple crank disconnection conditions can be selected. |
| (Speed sensor, oil pressure, gens) |
| LOAD | ·Power supply range is wide(8~35) VDC, accommodating to |
| Power current(IA,IB,IC) Apparent power kVA | Different starting battery voltage environments |
| Active power Kw Power factors Cos | ·All parameters use digital modulation, abandoning analog |
| Inactive power kVar Accumulate total gens power kWh | Modulation using conventional electronic potentiometer, more |
| ·Mains have over voltage, under voltage, loss phase function | Reliability and stability |
| ;Gens have over voltage, under voltage, over frequency, under | ·Modular configuration design, Flame Retardant ABS plastic |
| frequency, over current function | Shell, inserted type connection terminals, flush type |
| ·Precision measure and display parameters about Engine, | installation, compact structure, easy installation |
| Temp. (WT), ºC/ºF both are display |
|
| Oil pressure(OP) kPa/Psi/Bar all be display |
|
| Fuel oil level(FL) %(unit) |
|
| Speed(SPD) RPM(unit) |
|
| Voltage of Battery(VB) V(unit) |
|
| Voltage of chargert(VD) V(unit) |
|
| Hour count(HC) can accumulate Max.999999 hours |
|
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
