| Prod Model: |
H3.1-1000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Output Power: |
1000W |
| Max Output Power: |
2000W |
| Rotor Blade Diameter: |
3.1m |
| Start Up Wind Speed: |
3m/S |
| Rated Wind Speed: |
9m/S |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Directly Driven by Wind |
Product Description
DC24V 48V 60V output 1kW wind generator Product Features:
1. Blade is designed according to airfoil structure and made of glass fiber reinforced plastic.
2. Yaw shaft is made of reinforced aluminum, light and strong.
3. Turbine is extreme light and small, low in noise, running in high efficiency.
4. Inverter is three-in-one type, integrating rectifier, controller and inverter.
5. Control system has the function of charging, discharging and unloading.
6. LED indicates kinds of information simultaneously.

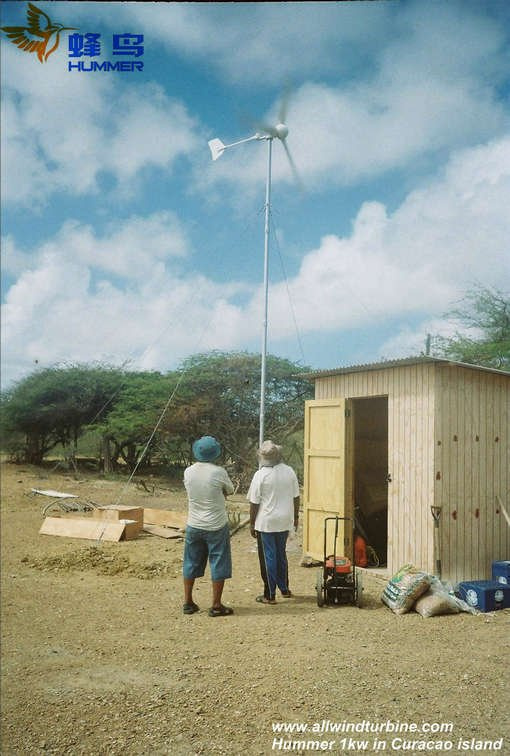

Because 1000W small wind turbine is small, light, high output and easy maintenances
It can be well used in housing. In addition, it also can be used in:
--Telecommunications Station
--TV Transfer Station
--Monitoring Station (military, hydrology, observatory)
--Water-pumping Station
|
Rated power (W) |
1000 |
|
Maximum output power (W) |
2000 |
|
Charging voltage(V) |
DC 60 |
|
Blade quantity |
3 |
|
Rotor blade material |
GRP |
|
Rotor blade diameter (ft.) |
10 (3.1m) |
|
Start-up wind speed (mph) |
7 (3.0m/s) |
|
Rated wind speed (mph) |
20 (9.0m/s) |
|
Rated rotating rate (r/min) |
500 |
|
Wind energy utilizing ratio (Cp) |
0.45 |
|
Generator output |
Frequency conversion AC |
|
Output AC frequency (Hz) |
0~400 |
|
Rated charging current (A) |
16.7 |
|
The maximum charging current(in a short time)(A) |
30 |
|
Generator efficiency |
>0.8 |
|
Tower diameter (in.) |
ø3.5*78.7*0.1 (ø89*2000*3.5 mm) (4pcs) |
|
Tower height (ft.) |
26 (8m) |
|
Weight of generator (lb) |
33 (15kg) |
|
Suggested Battery (Ah) |
120/150 |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
