Deutz Diesel Generators [Tk-D (20kw-1600kw) Gf]

Name: Deutz Diesel Generators [Tk-D (20kw-1600kw) Gf]
Brand: aboutgenerator.com
SKU: 645586785
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	Negotiable
Trade Terms:	shipping
Min Order:	1

Contact Supplier

Wuxi Tianke Electromechanical Equipment Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	TK-D(20kw-1600kw)GF
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Micro-Computer Control Automatic Diesel Generator

Product Description

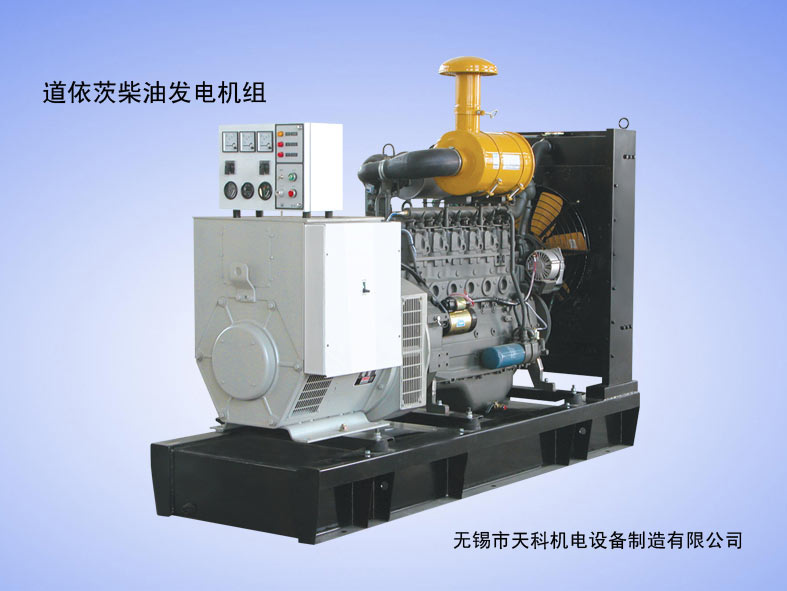

Deutz Diesel Generators:
1. Deutz Diesel Generator sets minimize the fuel consumption, Enables the fuel to obtain the full effective combustion.
2. Moving parts like craft shaft \connecting rod and camshafts are made by the excellent alloy construction steel. In addition, the induction hardening strengthening craft are used when producing craft shaft and camshafts. We use dragon gate framework as the machine body, it is one kind of anti-winding design. Thus, the reliability and life of Diesel engines improves.
3. It can be started under lower temperature, under - 15 Degrees Centigrade, it can well-started.

Genset		Atemator model	Data of the diesel engine(1500r/min)							DIMENSION AND WEGHT
model	Output Power (KW)		Model	No.of	Output Power (KW)	Bore/Stroke (mm)	Displa Cement (L)	Fule Consum ption (g/kw.h)	Oil sump (L)	Overall dimenesion (mm)			N.M (Kg)
model	Output Power (KW)		Model	No.of	Output Power (KW)	Bore/Stroke (mm)	Displa Cement (L)	Fule Consum ption (g/kw.h)	Oil sump (L)	L	W	H
TK-D20GF	20	BCI184F	D226B-3D	3L	30/33	105/120	3.12	239	7.25	1650	650	1200	650
TK-D25GF	25	BCI184G	D226B-3D	3L	30/33	105/120	3.12	239	7.25	1650	650	1200	650
TK-D34GF	34	UCI224C	TD226B-3D	3L	45/49	105/120	3.12	228	7.25	1650	650	1200	680
TK-D40GF	40	UCI224D	TD226B-3D	3L	45/49	105/120	3.12	228	7.25	1650	650	1200	700
TK-D50GF	50	UCI224E	TD226B-4D	4L	60/66	105/120	4.16	221	8.5	1900	650	1400	750
TK-D75GF	75	UCI247C	TD226B-6D	6L	90/99	105/120	6.24	223	15	2500	820	1400	900
TK-D100GF	100	UCI274D	TBD226B-6D	6L	120/132	105/120	6.24	223	15	2500	820	1400	1000
TK-D120GF	120	UCI274E	TBD226B-6D5	6L	132/145	105/120	6.24	213	15	2500	820	1400	1100
TK-D160GF	160	UCI274G	TBD234V6(M)	V6	191/210	128/140	10.8	214	22	2700	1130	1700	2600
TK-D200GF	200	UCD274K	TBD234V6(E)	V6	223/245	128/140	10.8	210	22	2700	1130	1700	2900
TK-D250GF	250	HCI444D	TBD234V8®	V8	281/309	128/140	14.4	210	28	3000	1130	1700	3200
TK-D280GF	280	HCI444E	TBD234V8(U)	V8	310/346	128/140	14.4	210	28	3000	1130	1700	3300
TK-D320GF	320	HCI444F	TBD236V8	V8	350/385	132/140	15.3	210	28	3000	1130	1700	3400
TK-D400GF	400	HCI544C	TBD234V12	V12	444/485	128/140	21.6	208	35	4150	1370	2000	4900
TK-D450GF	450	HCI544D	TBD604BL6	L6	500/564	170/195	26.6	201	72	4450	1700	2100	5300
TK-D500GF	500	HCI544F	TBD604BL6	L6	564/594	170/195	26.6	201	72	4450	1700	2100	5600
TK-D600GF	600	LVI634B	TBD620L6	L6	660/718	170/195	26.6	198	82	4600	1700	2300	5800
TK-D800GF	800	LVI634E	TBD620V8	V8	880/922	170/195	35.4	198	95	4800	1700	2300	8500
TK-D1000GF	1000	LVI634G	TBD620V12	V12	1137/1251	170/195	53.2	202	150	5600	1850	2300	9000
TK-D1200GF	1200	PI734C	TBD620V12	V12	1320/1384	170/195	53.2	195	150	5700	1850	2300	9400
TK-D1500GF	1500	PI734E	TBD620V16	V16	1600/1760	170/195	70.8	195	200	6000	1750	2300	13500
TK-D1600GF	1600	PI734F	TBD620V16	V16	1760/1844	170/195	70.8	195	200	6100	1700	2300	14000

Our company was founded early in 1978 which has a long history among the small and medium-sized enterprises nowadays. We produce different kinds of diesel generating sets and pumps, all of whom have been approved by ISO9001 International Quality Management Systems. Annual sales volume is above RMB10, 000, 000.

Many of our diesel generators are provided to China Construction and China Geo-engineering Corporation as power supply in their construction sites. Diesel generator is the best choice for working site power supply in Africa and West Asia because of the low local price of diesel oil while the electricity price is higher instead. And the diesel sets are durable than the oil or gas ones.

On the other hand, we have been cooperating with the military on some experimental projects about pumps which requests exquisite skills and definitely high quality. We produce pumps with for boats, construction, fire fighting, irrigation, chemical industry and so on, for both military and civil use.

Since the continuous development of science and technology and manufacturing skills within 31 years from the day our company founded, the quality of our products should be reliable. And we provide a competitive price which you will know for sure.
