Product Description
Weichai Power Co., Ltd. ("Weichai Power" or "the Company"), is founded by Weifang Diesel Engine Factory together with domestic and foreign investors. Weichai power is a modern enterprise as well as the major enterprise in the PRC specializing in the research and development, manufacturing and sales of diesel engines. The products are widely applicable to different markets, including heavy-duty vehicles, coaches, construction machines, vessels and power generator. Weichai Deutz 226B series diesel engine is manufactured by the joint-venture of Weichai and Deutz Company of Germany. The engine is module designed with compact structure, excellent power and economy, high reliability. The spare parts are exchangeable and convenient to change and repair. The emission can reach to Euro II Standard. It is the ideal power for engineering machinery.
Detailed Product Description

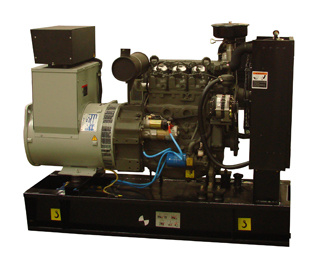

Deutz Generator Set
Features:
1. Engine: Deutz
2. Alternator: Leroy Somer, Stamford or Marathon.
3. Prome Power: 10KW-1500KW(9KVA-2200KVA) / 24-1600KW(30KVA-2000KVA)
4. Frequency: 50Hz(1500RPM) or 60Hz(1800RPM)
5. Voltage: 220V/380V, 230V/400V, 240V/415V, 120V/240V
6. Phase: Three phase, four wires
7. Protection: IP21, IP22, IP23
8. Insulation: H
Specifications:
1)Diesel engine.
A)Governer Method: Electrical or mechanical governor
B)Excitation: Brushless Excitation
C)Water cooling
D)Intake method: Natural apirated or turbocharged
2)Alternator:
A)Exciter type: AREP or Shunt
B)Voltage regulator: AVR(Automatic Voltage regulator)
C)Standard 2/3 pitch windings
D)Rate power factor: 0.8(lagged)
3)Control Panel
A)Emergency stop button
B)Voltmeter
C)Ammeter
D)Frequency meter
E)Oil meter
F)Three protection
4)AMP, ATS Soundproof canopy and movable trailers for choices.
Packing: Wooden case or plywood case or as per customers requirements
| AOSIF-Deutz Generator Sets |
| Genset model | Engine model | 50HZ | Fuel consumption | Weight |
| 50HZ | 60HZ | Prime power | Standby power | kg |
| KVA | KVA | g/kw.h |
| ADe33 | ADe40-T6 | D226B-3D | 30.0 | 33.0 | 215 | 800 |
| ADe55 | ADe55-T6 | TD226B-3D | 50.0 | 55.0 | 208 | 800 |
| ADe70 | ADe80-T6 | TD226B-4D | 63.0 | 69.0 | 208 | 1020 |
| ADe110 | ADe123-T6 | TD226B-6D | 100.0 | 110.0 | 205 | 1500 |
| ADe150 | ADe165-T6 | TBD226B-6D | 135.0 | 149.0 | 198 | 1550 |
| ADe165 | ADe165-T6 | TBD226B-6D5 | 150.0 | 165.0 | 198 | 1600 |
