| Prod Model: |
DG3500CL/E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |
Product Description

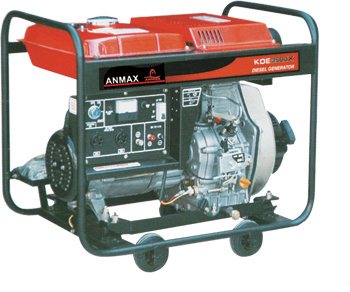

DG3500CL/E
Rated frequency(Hz): 50 60
Rated voltage(V): 230 240/120
Rated current(A): 12.2 13.8/27.5
Rated output power(KVA ): 2.8 3.3
Rated rotation speed(rpm): 3000 3600
DC output: 12V8.3A
Power factor(cosφ ): 1
Phase number: Single phase
Noise level[dB(A)@7m]: 72~77
Overall dimension(L*W*H )[MM(IN)]: 700*500*575
Dry weight[kg(lbs. )]: 53recoil 60E/S
Structure type: Open-frame type
Coupling mode: Rigid couping
By rotor drive shaft
Engine model: 178F/E
Engine type: Single cylinder, 4-stroke, Air-cooled, direct injection, Diesel engine
Displacement[ml(cu. In)]: 296(18.06)
Compression ratio: 20: 01
Rated power[kW(HP)/rpm]: 3.7(5.03)/3000
Starting system: Recoil starter
E: Electric starter
Rotation direction(View from flywheel): Clockwise
Fuel: 0#(summer)-10#(winter) light diesel oil
Lube: SAE10W30(above CC grade)
Low oil pressure alert system: With
