| Prod Model: |
4100ZD |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Swirl Chammber in Line |

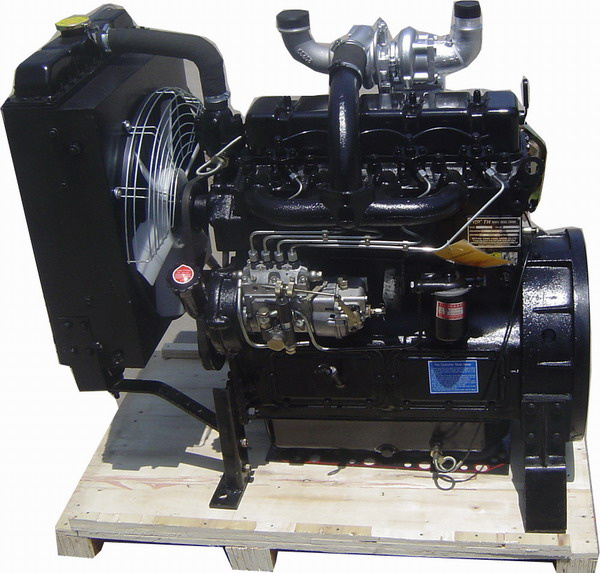

Product Description
Features:
1) four-cylinder, four-stroke, in-line, water-cooled
2) Cylinder diameter: 100mm
3) Stroke: 115mm
4) Rated output: 40.1kw/55HP 1500rpm; 46kw/63HP 1800rpm
5) Rated speed: 1, 500rpm; 1800rpm
6) Fuel consumption: 232.4g/kWh
7) Weight: 380kg
8) accessory:
A). Elec start
B). Alternater
C). Radiator
D). Air filter, fuel filter, oil filter,
E). Control panel: One oil temperature gauge, one water temperature gauge, one current gauge. Elec lock and key, starting button.
9). Package dimension (mm): 1140*720*1020
10). One 20' container can hold: 30PC.
We are Weifang Tianhe Diesel Engine Co., Ltd., specially manufacture R series diesel engine, 495 4100 series and 295 2100 series diesel engine, automobile, and tractor spare parts. The product power covering scope is 8.8-155KW. The annual output of all kinds diesel engine is about 100, 000 sets. The products are widely applied to generating equipment, agricultural machinery, engineering machinery, truck and ships, etc and exported to Southeast Asia, south Asia, Europe, Africa and America etc.
If you are interested in, please connect with me, we also would like to cooperate with you.
