| Prod Model: |
HQY30GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Green |
| Country Of Origin: |
China |
| Optional Configuration: |
Silent/ATS/Trailer |
| Speed Control Method: |
Mechanical/Electric |
| Start Method: |
Electric Start |
| Alternator Type: |
Brushless |
| Warranty Period: |
1 Year or 1000 Running Hours |
| If Start Battery Included: |
Yes |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Three Phase |
Product Description

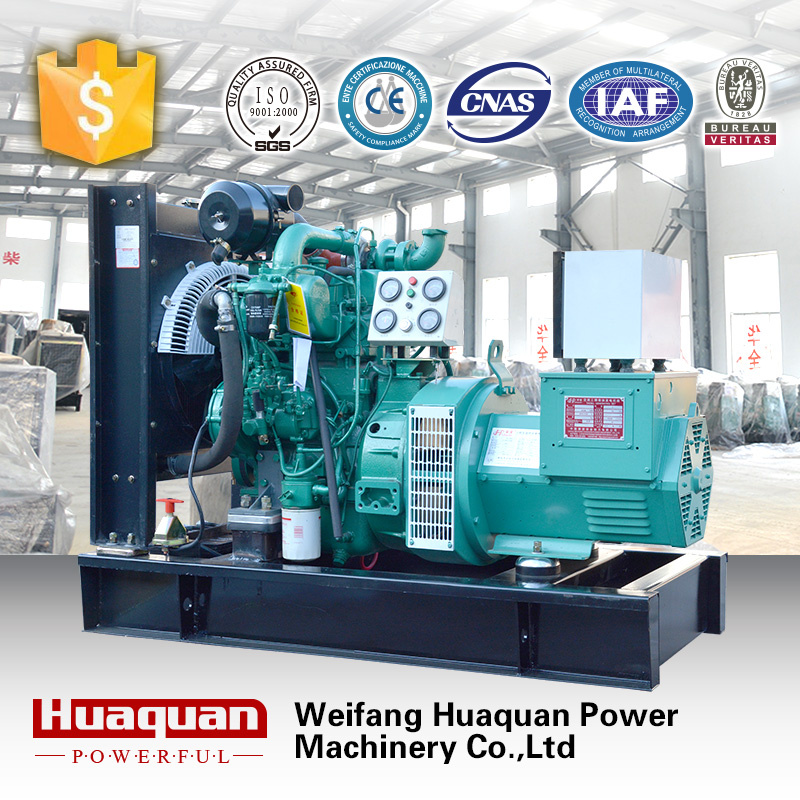

Diesel engine generator XN Stamford alternator,
Yuchai Series engine and alternator:
1. Diesel engine: Forged steel crankshaft made in a single piece, and cylinder head made out of high-quality alloy cast iron; imported cylinder block rough cast features with smaller in size, lighter in weight, less vibration, lower noise and higher reliability; and featured with the low fuel consumption; lower emission, strong power, and the overall period is more than 12000 hours. It also get the EU, Russia and other countries certifications. More than 2000 vehicles with the YC6L series IV6l SERIES IV Emission engines served the 2008 Beijing Olympic Games, Yuchai was the only engine supplier for Beijing Olympic bus service.
2. Alternator: Stamford, Faraday, Marathon, Leroy-somer, or other Chinese brand brushless and brush alternators are optional.
Standard Configuration of Yuchai engine generators:
1. Yuchai diesel engine.
2. Alternator: 100% pure copper wires, rotation magnet, different brands according to your request.
3. Standard control panel, LCD panel or mechanical panel.
4. Water tank, with protection guard.
5. Shock absorber system: protect the generator during its working period.
6. Maintenance-free start battery.
7. Battery connecting cables
8. Maintenance manuals of engine, alternator and generator.
9. Maintenance tools.
10. Standard steel underframe with stoving varnish.
11. Standard export plywood package.
12. Spare parts for maintenance (as your require)
Features of the silent canopy (optional),
1. Silent canopy: Noise reduction standards in line with ISO3744 and GB2820 standards, significantly reduce the noise to 75db (at three meters of generator).
2. Overall compact structure, small volume, perfect appearance.
3. Perfect ventilation design and efficient multi-path intake and exhaust, ensure adequate power performance.
4. Large capacity base fuel tank to ensure the unit run continuously for eight hours.
5. Specialized quickly open plate, scientific observation window and emergency stop button of the unit, easy to observe operating status and easy maintenance.
Yuchai series generator working conditions:
1. Yuchai generator can be used continuously every day, and with electronic governor make little change of rotate speed and stable operation.
2. Application area: widely used for shop, hospital, high-way, station, construction, farm, etc.
3. Maintenance: The overhaul period is over 10000 hours; and it will reduce the fault rate and extend the lifetime of the unit.
4. Above suggestions are based on our experience and are intended only as reference.
| Engine brand | Yuchai | Alternator brand | XN Stamford |
| Engine model | YC2115ZD | Alternator model | XN30 |
| Engine ouptout | 33kw | Alternator power | 30kw |
| Cylinder No. | 4 | Protection grade | IP23 |
| Cooling method | air cooled | Excitation mehtod | brushless |
| Start method | electric starting | Insulation grade | H |
