| Prod Model: |
SZL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Steam Boilers |
| Fuel: |
Coal-Fired |
| Usage: |
Industrial |
| Pressure: |
Pressure |
| Structure: |
Fire Tube |
| Drum Placement: |
Horizontal Boiler |
| Media: |
Steam and Water |
| Installation: |
Packaged Boiler |
| Water Circulation: |
Natural Circulation |
| Manufacturing Level: |
A |
Product Description
SZL Series assembled water tube boiler adopts longitudinal double drum chain grate boiler.
The boiler body is composed of up& down longitudinal drums and convection tube, best heating surface, high thermal efficiency, reasonable design, compact structure, elegant appearance, adequate effect.
Two side of Combustion chamber equipped the light pipe water wall tube, up drum equip steam separator device and the surface drainage equipment, and down drum equip the termly drainage equipment. The economizer was equipped in the end of the boiler, burning part is equipped the light chain grate ,can be mechanical feed coal, mechanical ventilation was by Air blower and draft fan and equipped with a spiral slag extractor to automatic slag.
Fuel from coal bucket fell on the grate into the furnace burning flame after arch refracted ,upward through the body combustor then go to the convection tube, after the passage of the economizer and dust remover, then by the Draft fan draw into flue ,then from the chimney to the atmosphere.

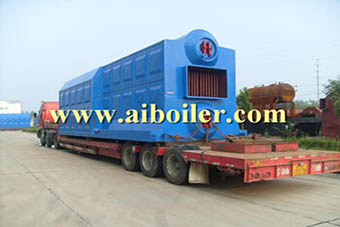

The products use Up and Down , two main assembly part, to transport. short installation period, the cost is low.
SZL steam boiler series Steam Capacity 4000 ~ 25000Kg / h,
Design Pressure1.25 ~ 2.45mpa
The SZL hot water boiler series Heat Output 2.8 ~ 14MW
SZL Horizontal Coal-burning Steam Boiler
Main Technology Parameter List
Model
Item | SZL4-1.25-AII
SZL4-1.57-AII
SZL4-2.45-AII | SZL6-1.25-AI
SZL6-1.57-AI | SZL6-1.25-AII
SZL6-1.57-AII
SZL6-2.45-AII | SZL8-1.25-AII
SZL8-1.57-AII
SZL8-2.45-AII | SZL10-1.25-AII
SZL10-1.57-AII
SZL10-2.45-AII |
| Rated Capacity | 4 T/h | 6 T/h | 6 T/h | 8 T/h | 10 T/h |
| Rated Working Pressure Mpa | 1.25/1.57/2.45 | 1.25/1.57 | 1.25/1.57/2.45 | 1.25/1.57/2.45 | 1.25/1.57/2.45 |
| Rated Steam Temp. ºC | 194/204/226 | 192.7/204 | 194/204/226 | 194/204/226 | 194/204/226 |
| Feed Water Temp. ºC | 20 | 20 | 20/105 | 20/105 | 20/105 |
| Fuel Consumption Kg/H | ~580 |
| ~850 | ~1130 | ~1400 |
| Thermal Efficiency % | 78 | 79 | 80 | 80 | 80 |
| Heating Surface | Boiler Body m² | 80.5 | 129.4 | 140 | 197 | 233.6 |
| Economizer m² | 38.5 | 109 | 87.2 | 122.08 | 174.4 |
| Grate area m² | 4.84 | 7.9 | 7.78 | 10.42 | 11.8 |
| Design Fule | Bituminous Coal |
| Max. Transport Weight | ~29 T | ~44T | ~25/26/27.5T | ~26.5/27.08/28T | 38.97/40.31/41.67 |
| Max. Transport Dimension | 6.9x2.5x3.5 | 8.8x3.2x3.5 | Up6.08x3.03x3.6
D:7.3x2.9x1.72 | 6.9x3.33x3.547 | Up7.8x3.2x3.524
D 8.9x3.2x2 |
| Boiler Auxiliary Equipment Model and Specification |
| Air Blower | Model | T4-72-114A
Right 315° | GG6-15
Right 225° | T4-72-115A
Right 225° | Gg8-1
Right 225° | 10td 811D
Right 225° |
| Motor Power | N=5.5 Kw | N=11 Kw | N=11 Kw | N=11 Kw | N=15 Kw |
| Draft Fan | Model | Y9-26
Right 0° | GY6-15 Right 0° | Y-8-39
Right 0° | GY8-1
Right 0° | 10TY-9.5D
Right 0° |
| Motor Power | N=22 Kw | N=37 Kw | N=30 Kw | N=37 Kw | N=45 Kw |
| Gear Box | Model | GL-5P | GL-10P | GL-10P | GL-10P | GL-16P |
| Motor Power | N=0.55 Kw | N=0.75 Kw | N=1.1 Kw | N=1.1 Kw | N=1.1 Kw |
| Feed Water Pump | Model | 1½ GC5x7 | DG12-25x8 | DG6-25x7 | 2GC5x6 | DG12-25x8 |
| Motor Power | N=7.5 Kw | N=15 Kw | N=7.5 Kw | N=18.5 Kw | N=18.5 Kw |
| Dust Remover | XD-4 | XD-6 | XD-6 | XD-8 | XD-10 |
Xuzhou Double Rings Machinery Co., Limited belong to Golden Moon Group, professional factory of steam boilers, gas boilers, hot water boiler, electric boiler and shearing machines, press brake, CNC lathe.
Our Group covers an area of 950000 square meters.
Manufacturing Plant area about 50000 square meters.
Own the complete service of Scientific Research, Manufacture, Sale and Installation.
Advanced Technology and Inspection Machine to ensure the product best quality .
ISO9001:2000 Certification .
Our factory has founded since 1970, has always been producing boilers and pressure vessels. With ceaseless reforms, the company has made splendid achievements, and provided a large number of excellent products for light industry, textiles, paper making, food & timber processing, pharmaceuticals, hotels, hospitals, etc. It has the Grade B boiler, A2 pressure vessel manufacturing and D1& D2 design qualifications approved by the General Administration of Quality Supervision, Inspection and Quarantine, has been certified to ISO9001: 2000 Quality Management System, and is a Class C metering unit.
The company is located in Xuzhou City, Jiangsu Province, China,Covering a plant area of over 50,000 square meters and the construction area of the production base of more than 30,000 square meters, it is equipped with large production equipment and sophisticated detection equipment and produces a full range of high-quality energy-saving products such as SHL, SZL, DZL, DZG, LSC series large, medium and small coal-fired steam boilers, pressure vessels and accessories.
Guided by the quality policy of "First-class Product Quality, Careful Organization & Installation, Satisfactory After-sales Service" and the operational guideline of "Build a Good Product Image, Keep Meeting the Growing Needs of Customers", the company strives to achieve customer satisfaction.
