Warranty:
12 Months or 1000 Hours
Output Type:
AC Single Phase
Cooling Method:
Air Cooled
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Self-Starting Diesel Generator

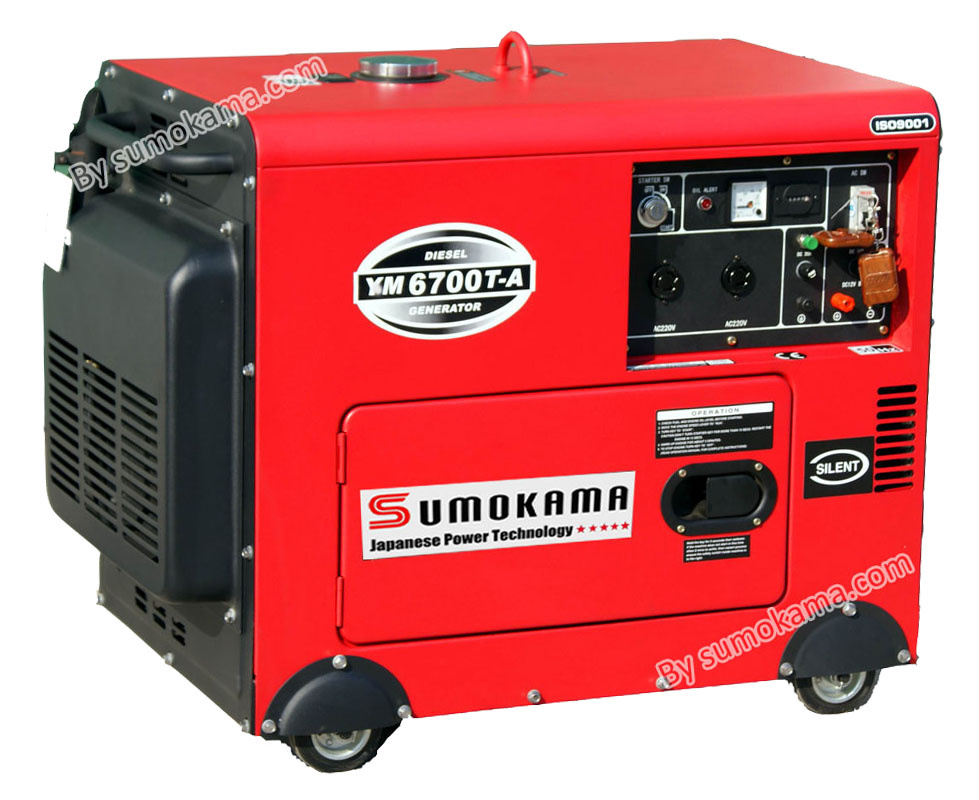

Product Description
1. CE approved, powered by sumokama advanced air-cooled diesel engine.
2. Electric start system ensures rapid start of the set.
3. Large fuel tank, ensuring hours of continuous output.
4. Low oil pressure alarm system, which can shut down the engine automatically.
5. Integrated cabinet ensures the set running silently.
6. A variety of specially-designed control panels available for different markets.
Model
KDE6700TA
Frequency (HZ)
50
60
Rated Output (KVA)
4.5
5
Maximum Output (KVA)
5
5.5
Rated Voltage (V)
115/230
120/240
Rated current (A)
39.1/19.6
41.7/20.8
Rated rotation speed (rpm)
3000
3600
Phase No.
Single phase
Power Factor
COS=1
Excitation Mode
Self-excitation, 2 pole and constant voltage (AVR)
DC Output
12V. /8.3A , Connection Pole Output
Structure Type
Soundproof
Noise Level (7m) dB(A)
72
Engine Model
kM186FA
Engine type
Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm)
86× 72
Displacement (L)
0.418
Rated Power KW
5.7/3000
6.3/3600
Fuel comsumption Rate(g. kw/h)
275.1
281.5
Compression Ratio
19: 1
Lubrication System
Pressure Splashed
Starting System
Electric Start with 30Ah MF battery
Fuel Type
0#(summer), -10#(winter), diesel
Lube Oil Brand
SAE10W30 (above CD Grade)
Lube Capacity (L)
1.65
Fuel Tank Capacity (L)
15
Continuous Running Time (hr)
9.5
Overall Dimension: LxWxH (mm)
955 x 560 x 780
Dry Weight (Kg)
170
Quantity in 20FT
72 Pcs
Optiomal Features:
ATS
Optional
Digital Panel
Optional
Remote control
Optional
We reserve the right to change specifications without notice
