South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Prime Power Range:
16kw~200kw
Alternator:
Leroy Somer or Stamford
Instrument For Adjusting Speed:
Electrical
Cylinder Amount:
2, 4, 6
Controller:
Smartgen/Deepsea
Protection Class:
IP22 / IP23
Rated Voltage:
127/220V; 110V/220V; 220V/380V; 240V/400V
Warranty:
1 Year or 1200 Hours
Type:
Self-Starting Diesel Generator
Installation Method:
Portable
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm
Product Description

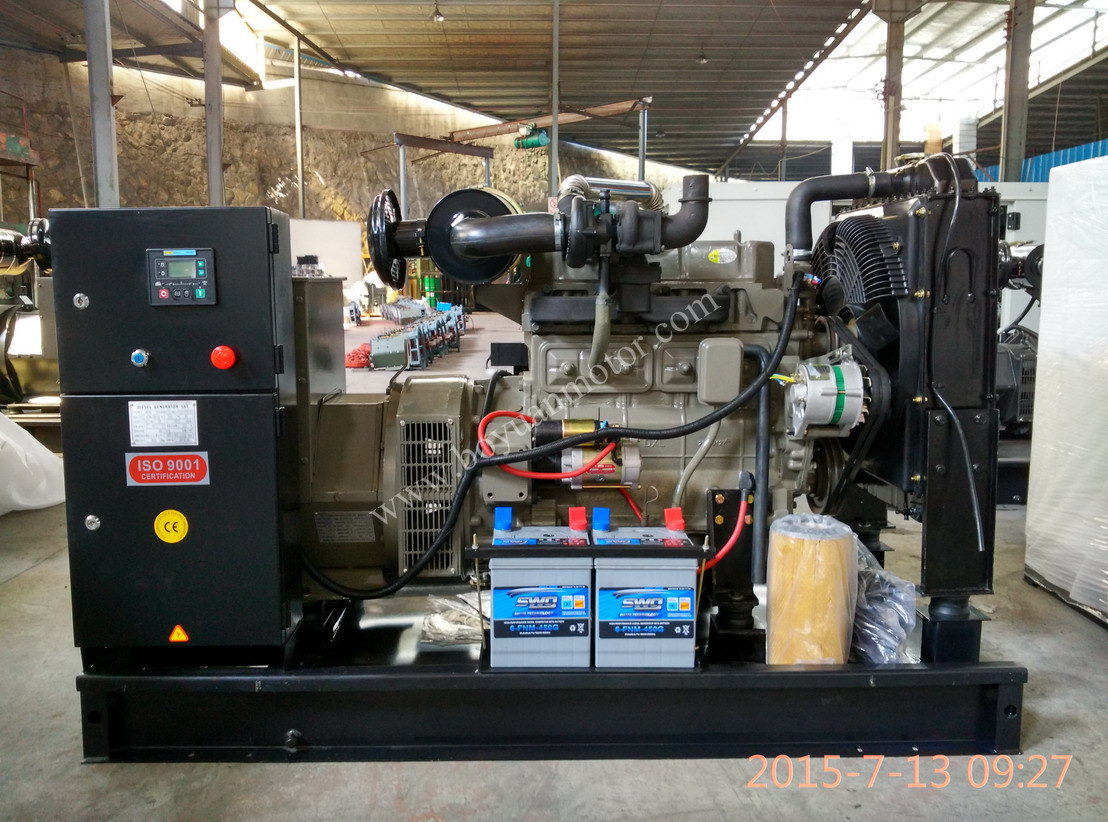

Electric Power Diesel Generator 50kw with Weichai Diesel Engine 8KW-200KW Weichai
THE SPECIFICATIONS OF THE GENERATOR SET:

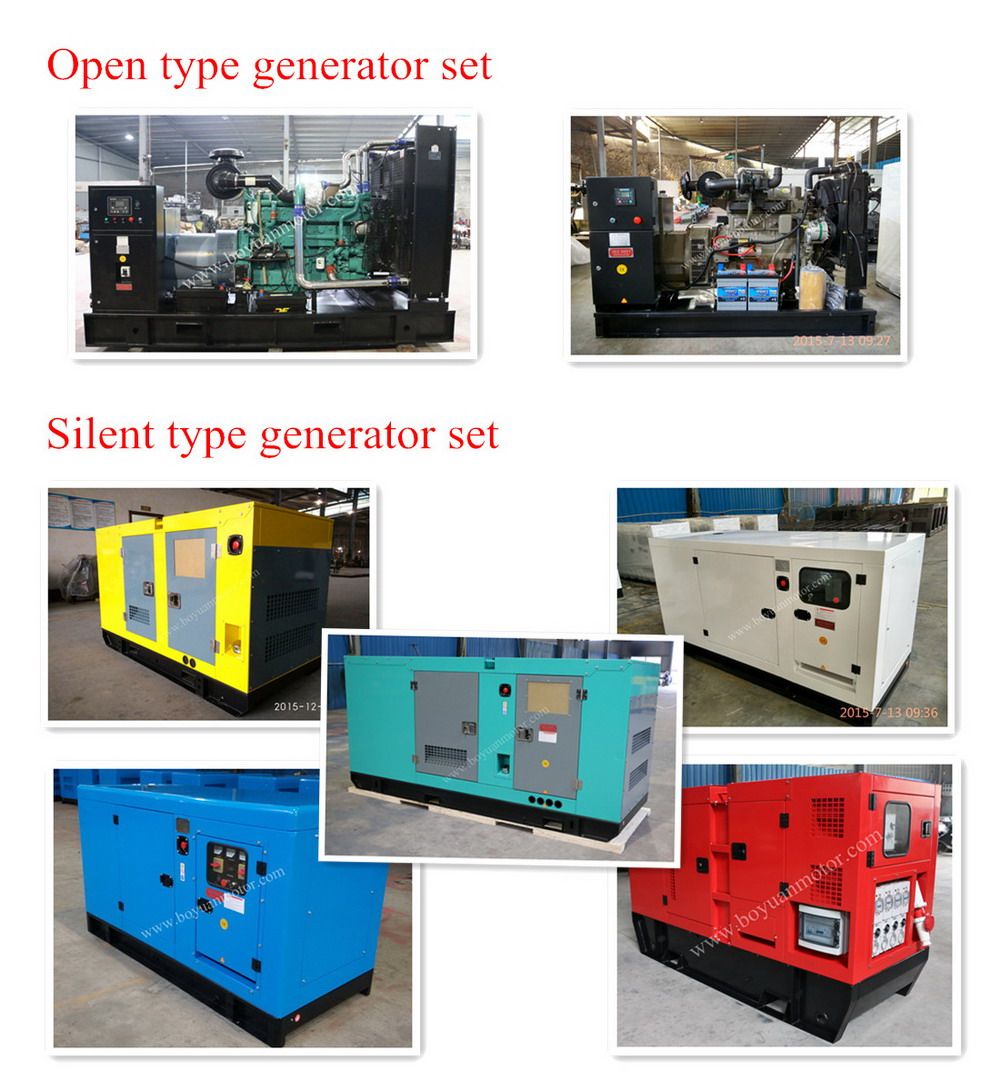

1. The basic specifications: 230V/400V, 50Hz/60Hz, 0.8pf, three phase four wires. 2. Charactor: Base fuel tank for 8 hours(canbe design from 8hours to 24 hours). 3. Use: Can be used for the open type and the soundproof type, automatic type, trailer type and etc. 4. Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any Situation asthe start defeat. The water over temperature, the oil pulls down, over speed, over Load and over current.
5. Operation display: (1)Unit voltage, three phase load current and frequency display. (2)Wator temperature, oil pressure display. (3)Fuel level, fuel temperature display. (4)Audible and visual alarm lamps and buzzers.
6. Supply standard collocation: (1)Diesel engine with all accessories, 3 filter, electrical systems. (2)Alternator. (3)Steel structure. (4)Fan and water cooling system. (5)Flange connector. (6)12V/24vstarting motor and charge engine. (7)Air cleaner, fuel cleaner, oil cleaner. (8)On-board control panel. (9)MCCB air conservation switch. (10)12V/24V starting accumulator and battery line. (11)Set shock absorber.
THE SPECIFICATIONS OF THE ENGINE:
1. The rated speed: 1500rpm, four-strokes, water-cooling system, up to the ISO3046 standard. 2. The rated output: From 8kw to 200kw 3. The Weichai engine model: 495D, R4105D, R4105ZD, R6105ZD, R6105ZLD, R6105AZLD, R6105IZLD, 6113ZLD. 4. The charactor of the engine: (1)High efficiency, low exhaust, good start addiciency. (2)24V DC start motor. (3)Engine driven alternator. (4)High pressure oil pump. (5)Turbine charge. (6)Three filter. (7)SAE flywheel shell.
THE SPECIFICATIONS OF THE ALTERNATOR:
The world famous --first class alternator, up to the GB755, BS5000, VDE0530, IEC34_1, AS2359 standard, brushless and self-exitation, it can supply excitation in many cases: 1. STAMFORD/MARATHON/LEROY SOMER, and etc 2. Standard pitch winding can be inhibit currents interruption. 3. Insulation class: Hprotaction alass. 4. Frequency at stable state: <1.0%. 5. Telephones interference: THF<2%, TIF<50.
Technical Data:
GNESET MODEL
10GF
12GF
15GF
20GF
24GF
30GF
40GF
50GF
64GF
75GF
Engine Model
SL2100AD
SL2100ABD
SL2110ABD
495D
495D
K4100D/495ZD
4105D/4100ZD
R4105ZD
R6105ZD
R6105ZD
Model Information
Vertical Four-stroke direct Injection
12hr rated output
16KW
16KW
19.3KW
26.5KW
26.5KW
36KW
42KW
56KW
84KW
84KW
Min. Fuel Consumption
Fuel
< 246.2
< 246.2
< 246.2
< 258.4
< 258.4
< 251.6
< 239
< 239
< 224
< 224
Oil
< 2.04
< 2.04
< 2.04
< 2.04
< 2.04
< 2.04
< 1.63
< 2.72
< 2.72
< 2.72
Generator Model
STC-10
STC-12
STC-15
STC-20
STC-24
STC-30
STC-40
STC-50
TFW-64
TFW-75
Rated Voltage V
230/400
230/400
230/400
230/400
230/400
230/400
230/400
230/400
230/400
230/400
Rated Current(A)
18.1
21.7
27.1
36.1
43.3
54.1
72.2
90.2
115.2
135.3
Exciting
Harmonic
Brushless-self-exciting
Hz/rpm
50/1500
Phase
3
Start Method
Electric Start
Cooling
Closed water cooling
weightkg
460
480
680
710
750
900
1000
1150
1550
1850
Dimension(mm)
1700× 950× 1100
1850× 1030× 1100
2050× 1020× 1180
2150× 1020× 1300
2150× 1030× 1300
2300× 1030× 1330
2850× 1220× 1510
2850× 1220× 1510

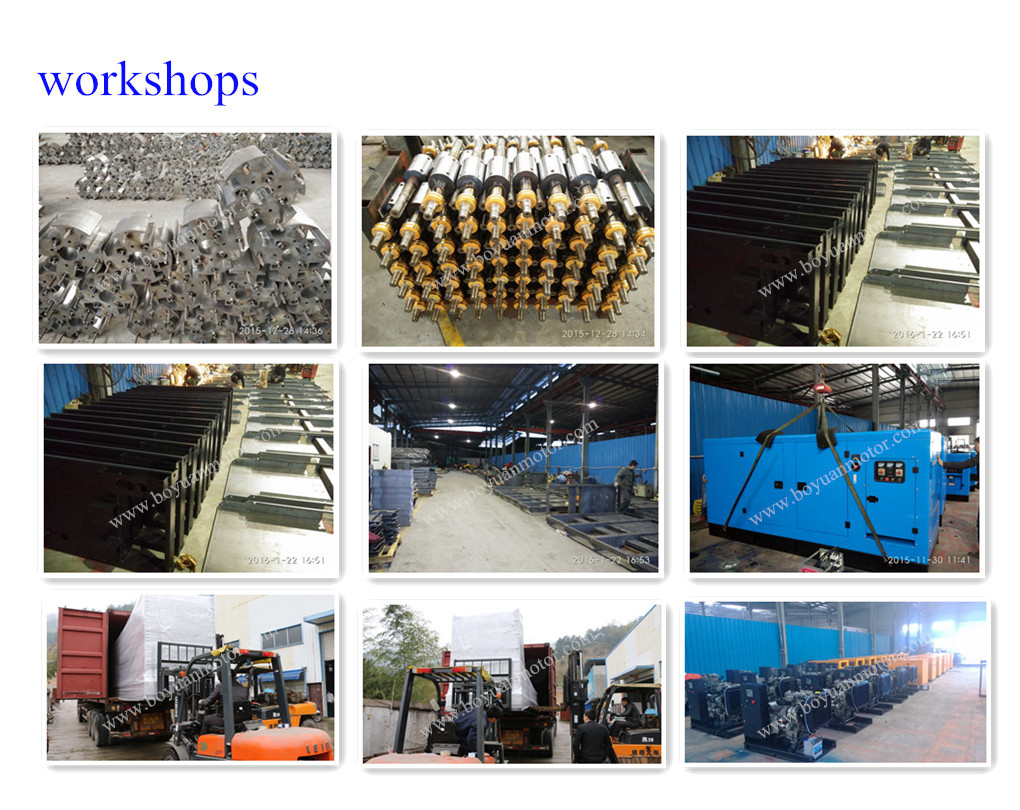

Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
