| Prod Model: |
AX3000 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Place Of Origin: |
Chongqing, China |
| Brand Name: |
Tongdu/OEM |
| Rated Power: |
2.5kw |
| Engine Type: |
Td170f, 207cc |
| Material Of Winding: |
100% Copper |
| Voltage Regulation: |
AVR |
| Rated Voltage: |
230V(AC), 120/240V(AC) |
| Rated Current: |
11.4A(AC), 20.8A(AC) |
| Optional Item A: |
Wheels&Handrails |
| Optional Item B: |
Battery |
| Output Type: |
AC Single Phase |
| Starting: |
Electric/Recoil Start |
| Power: |
2.5kw |
Product Description
High quality and competitive price!!

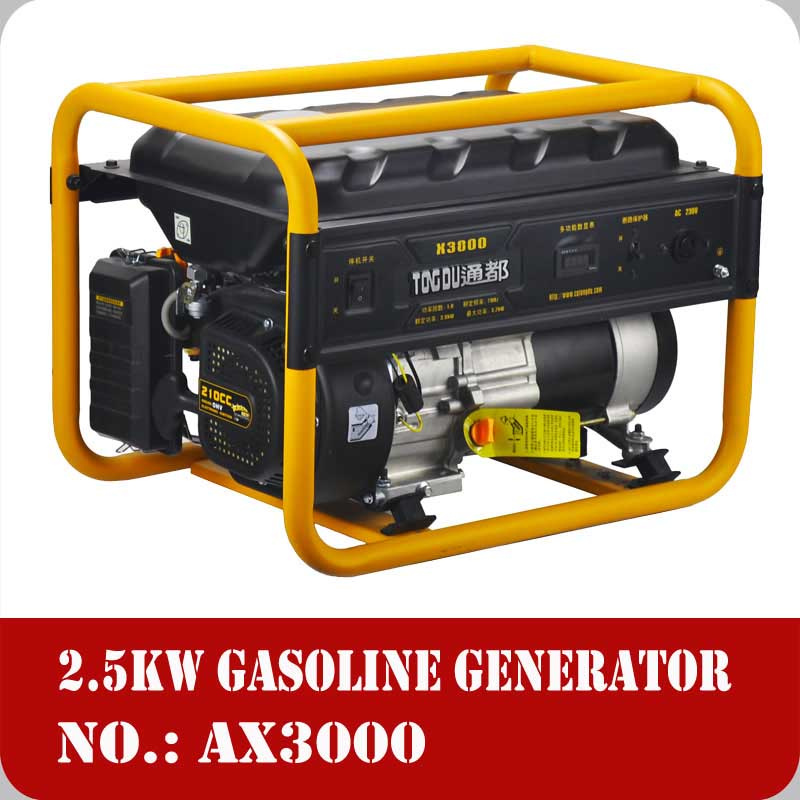

Electric start 2.5kw Generator Price Pakistan!!
Features
1. 100% copper wire.
2. AVR, Emergency low oil warning.
3. Air-cooled 4-stroke , low oil and fuel consumption.
4. Painted & frosted surface, special designed arc-shaped bolt.
5. EMC spark plug cap, reduce electromagnetic interference.
Specification
| Model | AX3000 |
| Engine model | TD170F |
| Engine type | Air-cooled,4-stroke,OHV,25°inclined single cylinder |
| Bore×stroke mm | 70×54 |
| Displacement ml/cc | 207 |
| Compression ration | 8.5:1 |
| Max power kw/rpm | 3.9/3600 |
| Rated power kw/rpm | 3.7/3600 |
| Max torque N.m/rpm | 11.5/3000 |
| Ignition system | Transistorized magneto |
| Starting system | Recoil/Electric |
| Air cleaner | Foam element |
| Oil capacity L | 0.6 |
| Lowest fuel consumption g/(kw.h) | ≤395 |
| Max power kw | 2.8 |
| Rated power kw | 2.5 |
| Rated voltage V 12(DC) | 230(AC),120/240(AC) |
| Rated circuit A (8.3DC) | 11.4(AC),20.8(AC) |
| Voltage regulation | AVR |
| Rated frequency Hz | 50/60 |
| Phase | Single |
| Power factor COSφ | 1 |
| Material of winding | Copper |
| Insulation level Grade | F |
| Sound pressure level(rated power at 7 meter) dB | 69.5 |
| Fuel tank capacity L | 15 |
| Continuous work time(at rated power and full tank) hrs | 8 |
| Dimension L×W×H mm | 610×460×465 |
| N.W/G.W kg | 44/46 |
| Fuel | Gasoline |
| 20FT,40FT set | 235,480 |
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: Is it all right to make customer brand name?
A: Yes,You can OEM brand name.
Q: What is you deliver time ?
A: Within 10~30days.
Q: Where is your factory located ?
A: Our factory is in Chongqing,China.
Q: What are your payment term?
A: T/T,Western Union or L/C.
Any questions,please contact me!!
