| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,CPT |
| Min Order: | 1/Box |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | PRO-ESU300 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Output: | Max 300 Watt |
| Power Adjustment: | 5W for Micro Power Adjustment |
| Work Mode: | Pure/Blend1/2,Standard/Spray,Bipo1/2 |
| Alarm: | Acousto-Optic Dual Alarm |
| Safety: | Rem System for Highe |
| Other Application: | Support Urology Turp |
| Voltage Of Mains: | 110V/220V,50/60Hz +/-10% |
| Surgery Effect: | Minimal Sticking and Carbonization |
| Others: | Underwater Cutting |

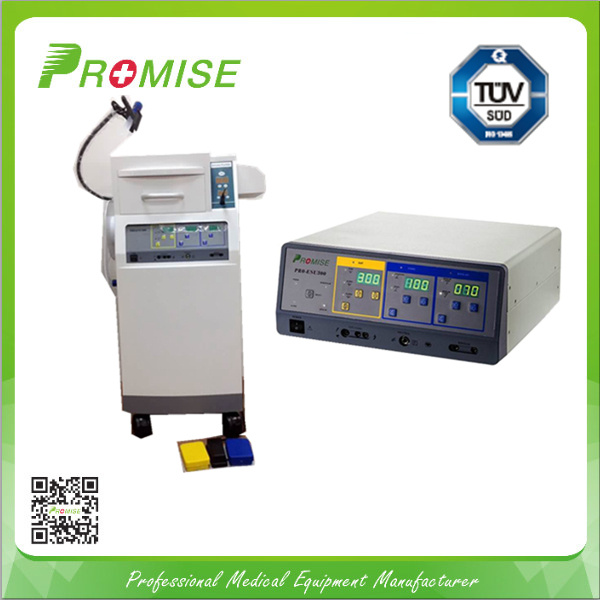

| Type: | Electrosurgical Unit Max 300 Watt |
Electrosurgical Unit is a electro-surgical instruments used of the high frequency current
to make the tissue dehydrated and evaporated rapidly, split into a smooth narrow and flat incision without bleeding.
Mainly used in general surgery, gynecology,urology(Support the TURP), oncology etc.
Work Modes | Mode | Frequency | Rated Power | Form of HF Current | |
| Cutting | Pure Cut Blend 1 Blend 2 | 500KHz 500KHz 500KHz | 300W/300Ω 250W/300Ω 200W/300Ω | Sine Wave Modulate Sine Wave Modulate Sine Wave | |
| Coag | Standard Spry | 500KHz 500KHz | 100W/300Ω 70W/300Ω | Modulate Sine Wave Modulate Sine Wave | |
| Bipolar | Bipolar Cut Bipolar Coag | 500KHz 500KHz | 100W/50Ω 70W/50Ω | Sine Wave Modulate Sine Wave | |

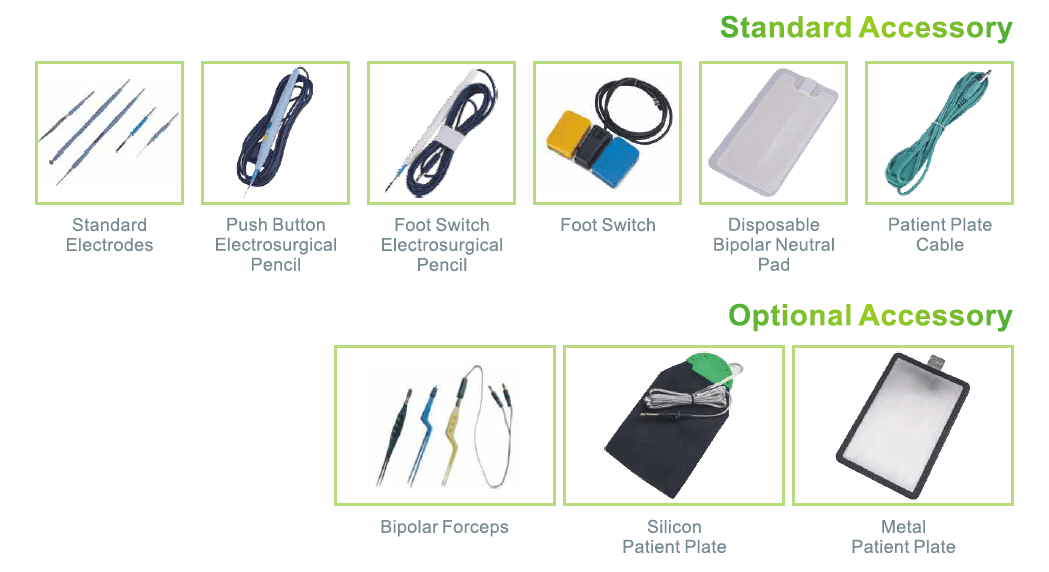

Standard Accessories | Name | Quantity | |||
| Neutral Pad Connection Cable Disposable Bipolar Neutral Pad Foot Control Switch Disposable Handswitching Surgical Pencil Disposable Footswitching Surgical Pencil Standard Needle Electrode S tandard Blade Electrode Extend Ball Electrode Extend Blade Electrode Fuse Power Cable ESU Manual | 1 pc 5 pcs 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc 1 pc 2 pcs 1 pc 1 pc | ||||
Technical Specification | Hight | 16.2cm (6.4 in.) | |||
| Width | 35.7cm (14.1 in.) | ||||
| Depth | 42 cm (16.6 in.) | ||||
| Weight | <8.7Kg (<19 Ibs) | ||||
| Gain Steps | 5W increment | ||||
| Input Power (Adjustable based on local power supply) | Under-test 110V/220V, 50/60Hz±10%; | ||||
