| Prod Model: |
NB2900 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Output Type: |
AC Single Phase |
Product Description
Product Description

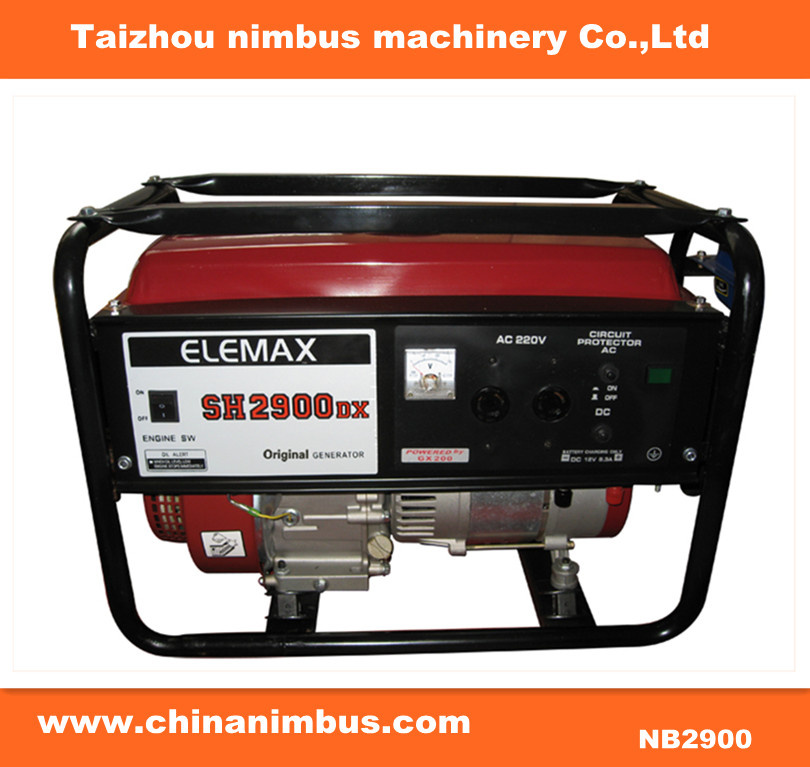

Elemax gasoline generator portable gasoline generator
Specification Of Gasoline Generator
Rated Power:2.5kw
Max Power:3.0kw
Frequency:50/60HZ
Voltage:220/230v
Alternator Coil:Copper coil/Aluminum coil
Engine:168F-1 ----7.0HP air-cool ,4-stroke one cylinder engine
Start System:Recoil /Electric
Displacment:196cc
Fuel Tank Capacity:15L
Lube Oil Capacity:0.6L
Noice Level :67dB
Dimension:605x440x440mm
N/G: 43kg 45kg
20FT Capacity:240PCS
Carton:brown carton
Elemax gasoline generator portable gasoline generator
Feature Description
1.Silent type ,with original Loncin air filter,and thick fuel tank
2.Sensitive Oil Alert System
3.Chongqing spare part engine ,good quality alternator ,steady power guarantee
4.Smooth wedding frame ,plastic panel .
5.Eletronic start and manuel start is optional .
6.Digital Meter is optional
7.Carburator:Huayi or Chuangxin
8.AVR: Lihua brand
Company Information
Taizhou Nimbus Machinery Co.,Ltd
History :Since 2005
QC System: Spare part checking,Every Machine Long Run Time Test .
Production Capacity:5000pcs One Month
After-sale Service:Any problem ,Spare Part Sent By free
Marketing area:Europ ,Africa ,East middle ,Asia
Packing picture:
Sample Room:
| Generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rating Voltage(V) | 110/120/220/230/240 |
| Rating power(KVA) | 2 | 2.5 | 2.5 | 2.7 | 2.8 | 3.6 | 4 | 4.5 | 5 | 5.5 |
| The Max.power(KVA) | 2.2 | 2.7 | 2.7 | 3 | 3 | 4.2 | 4.8 | 5 | 5.5 | 6 |
| Power factor(cos) | 1 |
| Engine | Type | 168F | 168F-1 | 177F | 182F | 188F |
| Category | Single crock,Force air-cooled four-stroke,top-intalled gasoline engine |
|
|
| Exclusion of cylinder(cm3) | 163 | 196 | 270 | 337 | 389 |
| The Max.output power(KW/rpm) | 4.8/3600 | 5.7/3600 | 7.0/3600 | 8.0/3600 | 9.5/3600 |
| Ignition system | Transistorized magneto |
| Start system | Recoil/E-start |
| Capacity of fuel tank(L) | 15 | 15 | 25 | 25 | 25 |
| Consumption of fuel(L/h) | 1.13 | 1.32 | 1.9 | 2.45 | 2.7 |
| Consecutive Working(h) | 13 | 11 | 13 | 10 | 9 |
| Noise(at7m)(dB) | 65 | 65 | 69 | 72 | 74 |
| Capacity of engine oil | 0.6 | 1.1 |
| Dimension | Set dimension(mm3) | 615×435×455 | 615×435×455 | 620×470×480 | 635×510×485 | 670×510×510 |
| Net weight(kg) | 39 | 40 | 62 | 78 | 80 |
| Standard Equipment | Large capacity fuel tank,large capacity muffler,fuel gauge,voltmeter,AVR,oil alert,Ac circuit breaker |
|
| Purchasing | Four-wheel dolly kit | Yes |
Taizhou NIMBUS Machinery Co., Ltd. Established in 2005, Which is specialized in gasoline generators, diesel generators, gasoline engine, water pump, chain saw,
Brush cutter, etc.
We have many years experiences in this area. Our company has passed the ISO9001/2000 Quality management Certificate and CE Certificate, Owing the capacity of producing 30, 000 sets per month of several kinds of universal machines. The products are mainly export Germany, Poland, England, France, Bulgaria, Egypt, Nigeria, Angola, Uganda, Kenya, Ethiopia, South Africa, Venezuela, Guatemala, Dominican, India, Nepal, Pakistan, UAE, Malaysia, Iraq, Indonesia, Yemen, Vietnam, Bangladesh, Afghanistan countries etc.
We are looking forward to cooperation with friends from all over the world, And give you best price, best services, best quality. Welcome to visit us and develop long time reationship with our company. We will never let you down.
