| Prod Model: |
HDY6000LXB |
| Output Type: |
DC |
| Cooling Method: |
Oil Cooling |
| Stroke: |
Two Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
Product Description

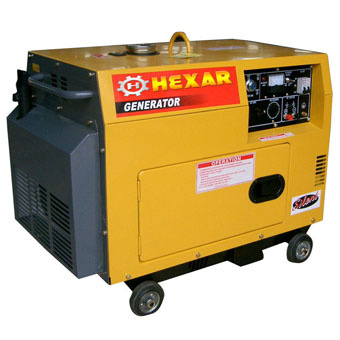

Silent Diesel Generator Set
MODEL: HDY6000LXB(EPA&CE)
Features: we are a Chinese generator manufactory and we supply 3-30kVA diesel power generator sets, especially soundproof silent generator very famouse in Latin America market, the generator engine also made by our factory,
Frequency(Hz): 50/60
Max. AC output(kVA): 5.0/6.0
Rated AC output(kVA): 4.6/5.2
Rated AC Voltage(V): 110, 220, 230, 240, 110/220V, 120/240V
Power Factor(cosφ ): 1.0
Type: Brushless, self-excitation, 2-poles, Single-phase
Voltage Regulator: Condenser Type genset
DC Output: 12V/8.3A(option)
Engine Model: DH186FADE
Type: Forced air-cooled, 4-stroke, Diesel Engline
Displacement(CC): 418
Max. Output(HP/rpm): 10.0/3600
Fuel: Diesel Light Fuel
Fuel Tank capacity(L): 16
Continuous Operating Hours(H): 9.5/ 8.5
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 1.65
Ignition System: Direct injection
Starting System: Start Electric start
Operating Noise Level(7m)dB(A): 69/70, soundproof
Net Dimension LXWXH(mm): 910x520x680
Overall Dimension LXWXH(mm): 950x565x770
N. W. /G. W. (kg): 161/171
20GP/40GP/40HQ: 48/96/144
Established in 1989, Zhejiang Hexar Power Industry Co., Ltd. Is a specialized manufacturer of electric bikes, electric scooters, motorcycles, atvs, go karts, gasolie generators, diesel generator, engines, water pumps, brush cutters, prussure washers, power tools and so on.
Having focused on the improvement of quality control system and enhancement of scientific management, our products are selling well in the American, European and South Africa, South American markets. Moreover, the Research and Development Team is capable of supplying innovative products to further meet the changing needs of customers, therefore maximize their values effectively.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits.
