| Prod Model: |
GDC38*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Brand, Perkins, Deutz Is Optional |
| Alternator: |
Stamford, Ennga, Marathon, Godlike |
| Controller: |
Dse, Smartgen Is Optional |
| Material: |
100% Famous Material |
| Function: |
ATS, Amf, Silent, Open, Mobile Is Optional |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
Factory Direct Sale 50Hz 38kVA/30kw Generators Silent (GDC38*S)
General features:
Features:
1) Engine and alternator shall be mounted on a same frame steel skid
2) Built-in damper for anti-vibration
3) Small size, low weight, easy to operating, installation and maintenance
4) World most famous brand diesel engine: Deutz air cooled F912/3 series engine
5) World famous brand AC alternator: Stamford, Marathon, Leroy Somer
6) Advanced and reliable control module: Key start, auto start
7) Full range protect function and alarm shutdown feature
8) According to professional standard
Alternator features:
1) Brush-less, 4 poles, rotation magnet
2) IP21-23 (NEMA1) enclosure is standard for all industrial alternators
3) The insulation system is class H
4) Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
5) Wide range of flange adaptors and single bearing disc coupling
6) Standard 2/3 pitch windings avoid excessive neutral currents
7) Optional accessories available for easy paralleling with mains or other generators
8) AVR auto voltage regulator, auto exciter, auto adjustment
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
1. Product Configuration
| 1. Specification of genset |
| Gensets model | GDC38*S |
| Prime power | 30KW/38KVA |
| Standby power | 33KW/42KVA |
| Rated Voltage | 220/380V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 3250x1050x2100 |
| Genset Weight(kg) | 2800 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | 4BT3.9-G2 |
| Number of Cylinders, Cylinder arrangement | 6 ,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 36KW |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 117*146 |
| Displacement (Liter) | 9.3 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 208/209/210 |
| Starting Method | DC24V electrical starting |
| 3. Specification of alternator |
| Alternator brand | Copy Stamford |
| Alternator model | JDG184G |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |

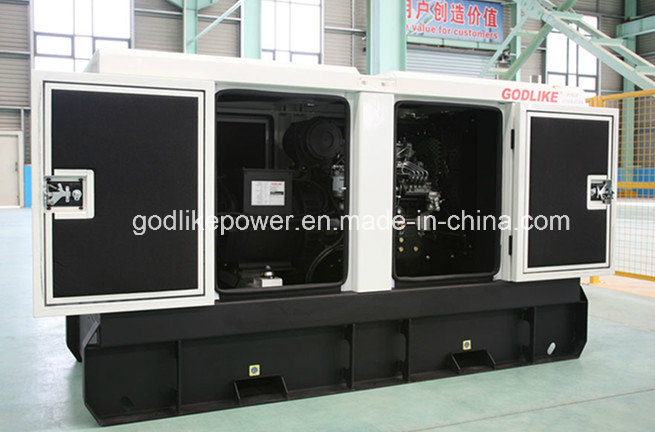

Generator photos:
