| Prod Model: |
HLD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Natural Gas |
Product Description

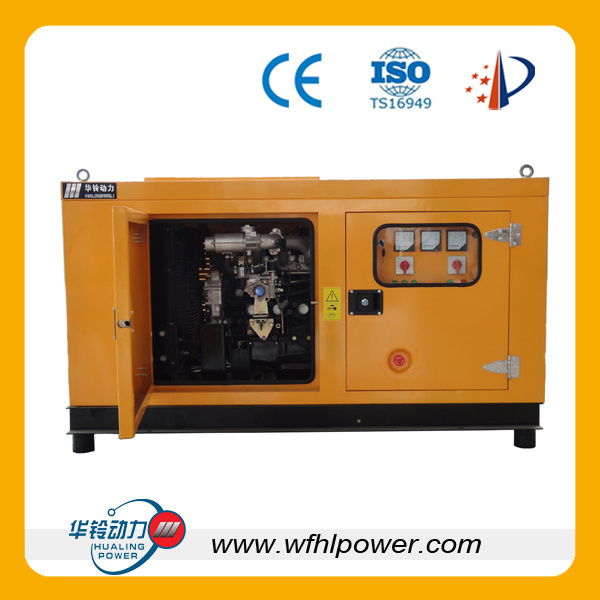

Gas cogeneration
Scope of supply (Standard scope )
Gas engine
Air filter
Gas mixer
Throttle valve
Ignition system
Starting batteries
Synchronous generator
Automatic cos control
Automatic voltage control
3. Heat recovery system
Plate heat exchanger
Exhaust gas boiler
Cooling water pump
Heating water pump
Three way valve with servo drive/temperature heating water regulation
Safety valve/ heating water circuit Safety valve/ cooling water circuit Expansion tank/cooling water circuit
Gas train
Gas filter
Solenoid valve
Zero pressure regulator
Pressure switch for gas /low pressure indication
5. Exhaust system
Exhaust gas silencer
Compensator
6. Electrical switchboard
Control and power part (control system, circuit breaker, power switches and measuring units)
Modular control system
Power part (circuit breaker, power switches)
Container
Steel welded transportable container with internal noise elimination for outdoor location
Air change by electrical ventilator with change speed to ensure required temperature
Lockable door for easy access to cogeneration unit
Indoor lighting
Separate room for electrical switchboard
Options
Back-up cooling system
Dry cooler / emergency cooling
Three way valve /control engine water temperature
9. Oil equipment
Central lube oil tank
Oil level regulator Preheater of the engine
|
Engine type |
HL6126NG-ZAL |
|
Norminal speed |
1500 MIN -1 |
|
Number of cylinder |
6 |
|
Bore * Stroke |
126*130 |
|
Displacement |
10 (l) |
|
Oil recommended (natural gas) |
0.22 m3/kw· h |
|
Lube oil filling quantity |
min. 19 l, max. 22 l |
|
Max. lube oil consumption |
0, 4-0, 6 g/kWh |
|
Compression ratio |
11.5: 1 |
|
Engine weight (dry) |
800 kg |
Generator
|
Synchronous alternator |
Marthon MP-100-4 |
|
Nominal apparent power |
125 kVA |
|
Nominal active power |
100 kW |
|
Nominal voltage |
400/231 VAC, 50 Hz |
|
Harmonic distortion (no load/ linear balanced load |
< 1.8% / < 5% |
|
Dir. axis transient (X′ d) |
11, 0% |
|
Dir. axis subtransient (X“ d) |
6, 6% |
|
Quad. axis subtransient (X“ q) |
7, 2% |
|
Transient time constant (T′ d) 100 ms |
100 ms |
|
Sub-transtime constant (T“ d) |
10 ms |
|
Generator weight |
515 kg |
|
Bearing number |
1 |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
