| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
SD-150 |
| Rated Power: |
150kw |
| Cooling Way: |
Water Cooling |
| Starting Way: |
Electricity |
| Type: |
Brushless |
| The Connecting Way Of The Phase: |
Three Phases Four Lines |
| Insulation Degree: |
H Degree |
| Grading Protection: |
IP23 |
| Rated Voltage: |
400V/230V |
| Rated Current: |
270A |
Product Description

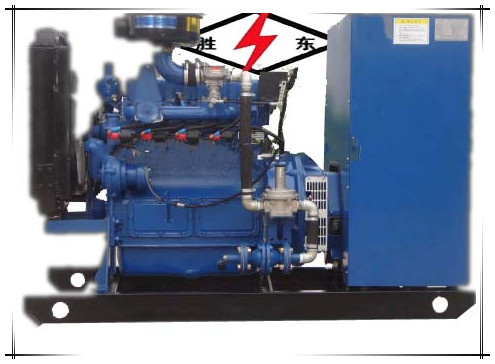

the 150kw gas generator
the product are suitable for natural gas,LPG,and bio gas.low calorific value made the output of gas genset decrease.
supply normal configuration:gas engine with single bearing alternator,mixture,ignition system(ECU,spark plug,high voltage wire,ignition switch,ignition coil,wires),electron speed regulator(controller,final controlling element),fan, water tank,air cleaner,muffle,fire arrestor and water pipe.
specifics:
| The main parameters of the engine |
| Brand | SD-150 |
| Model | 6CTA8.3-G2 |
| Spare power | 163KW/203.75KVA |
| Type | four strokes, waste gas turbine boost,direct spurting type |
| Cooling way | water cooling |
| With type | Inline type |
| Bore*Trip | 114mm*135mm |
| Cylinder | 6cylinders |
| Displacement | 8.3L |
| Lubricating Capacity | 24L |
| Speed adjustment way | electronic speed |
| Rotating speed | 1500r/min |
| Starting way | starting with electricity |
| The main parameters of the generator |
| Brand | Stamford copy |
| Model | SD-150 |
| Type | brushless (AVR automatic voltage regulating) |
| The connecting way of the phase | three phases four lines |
| Insulation degree | H degree |
| TIF | <50 |
| THF | <2% |
| The factor of rated power | ≤±1% |
| Grading Protection | IP23 |
| Unit parameters |
| Power | 150kw/187.5KVA |
| Rated voltage | 400V/230V |
| Rated current | 270A |
| Rated frequency | 50 HZ |
| The factor of rated power | 0.8 |
| regulated rate of instantaneous voltage | ≤-15%/ +20% |
| regulated rate of steady voltage | ≤±1% |
| The time of steady voltage | ≤3sec |
| The waving rate of voltage | ≤0.5% |
| Voltage waveform distortion degree | ≤8% |
| The regulating rate of steady frequency | ≤5%
|
| The regulating rate of instantaneous frequency | ≤-10%/+12% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤1.5% |
| The waste of fuel with full load | 207g/kw.h |
| Size(mm) | 2400*970*1500 |
| Weight(kg) | 2100 |
Dongying Shengdong Dynamoelectric Facility Co., Ltd. Located in the birthplace of China's second largest oilfield Shengli Oilfield, the beautiful and rich Yellow River Delta, is a professional engaged in generating R & D, manufacturing, sales and service of high-tech companies. The company occupies 12, 658 square meters, 12 senior engineers, 120 professional and technical personnel, with more than 300 employees.
The company is specialized, with strong technical force, complete production equipments, advanced production technology, complete detection means, test the system in strict accordance with ISO9000 -2.0 thousand of quality management system requirements.
The company mainly produce generator, gasoline generator, diesel generator sets, gas generator sets and other four series of mechanical and electrical products. For the purpose of making the customer satisfied, the company continuous improve product performance, and always insist that quality comes first, faith-based management approach, in order to win the majority of customers trust and praise.
The company can meet customers different voltage requirements of different frequencies to achieve multiple units in parallel with the model grid, as well as automation of common type change-type generating units.
In order to ensure customer satisfaction, the company can offer a full-time maintenance staff 24 hours a day around the clock at any time for the majority of users, and provide installation, commissioning, maintenance, repair one-stop service.
Dongying Shengdong Dynamoelectric Facility Co., Ltd. Is sincerely willing to cooperate with you and seek common development.
