| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
General Features

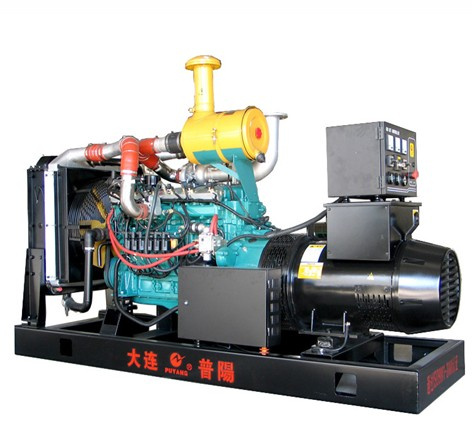

Prime power 80kw 100kVA standby power 88kw 110kVA
400/230V, 50Hz at 1500rpm, 60Hz at 1600rpm, 3-Phase, 0.8pf
Omnitek engine with Engga alternator
Electric start, electric speed governor
24V Charge alternator
Single bearing alternator
Class "H" insulation, IP22 protection grade
Main line circuit breaker
Manual control panel
Optional digital control panel
Battery and connect wires
Flexible pipe and silencer
User manual and documents
Full function test before dispatch
|
Manufacturer/brand: |
OMNITEK |
|
Model No: |
|
OM6NG5-88G |
|
Engine Type: |
|
6L, 4 -cycle |
|
Max. Engine Power |
kW |
130 |
|
Aspirate: |
|
Natural Inspiration |
|
Governor Type |
|
Electronic governor |
|
Cooling Method: |
|
Forced water circulation |
|
Number of cylinders: |
|
6 |
|
Bore x stroke: |
mm |
102 x 120 |
|
Displacement: |
L |
5.9 |
|
Compression ratio: |
|
|
|
Gas consumption: |
|
|
|
50% |
|
|
|
75% |
m³ /h |
N/A |
|
100% |
m³ /h |
24 |
|
Lub. Oil Capacity: |
L |
16.4 |
|
Coolant Capacity: |
L |
21.9 |
|
Exhaust Gas Volume |
m³ /min |
10 |
|
Exhaust Temperature |
degree centigrade |
665 |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
