| Prod Model: |
1700 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protect Feature: |
IP44 |
| Certification: |
CE ISO9001 |
| AC Voltage: |
220V |
| Start System: |
Recoil Starter |
| Efficiency: |
Ie 1 |
| Speed: |
1500RM |
| Use: |
Generating for Home, Shop, Camp etc |
| Warranty: |
1 Year |
| Crankcase: |
Magnesium Alloy |
Product Description

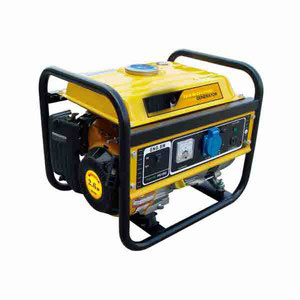

Gasoline generator 1500~6500series gasoline portable generator petrol generator
1. Single cylinder, 4-stroke, air cooled gasoline engine, with recoiling or electric start.
2. Compact and portable power for emergency and home standby use.
3. Large mufflers and less fuel consumption.
4. Over load protection for safe running.
| Model | LT1700s |
| Generator |
|
| AC Frequency | 50Hz | 60Hz |
| Engine speed | 3000rpm | 3600rpm |
| AC Rated voltage(v) | 220v/230v/240v | 110v/120v 220v/240v |
| Rated AC Output(kw) | 1.2 | 1.3 |
| Max. AC Output(w) | 1.5 | 1.6 |
| DC output | 12V-8.3A |
| Power factor | cosφ =1.0 |
| Voltage Regulator | Capacitance |
| Engine |
| Engine model | 1E45F |
| Type | OHV 4-stroke, air cooled, |
| Bore*stroke |
|
| Displacement(cc) | 163 |
| Continuous output | 1.2kw/3000rpm |
| Maximum output | 1.5kw/3000rpm |
| Fuel tank capacity | 12L |
| Fuel | 50: 1Gasoline and oil mixed |
| Fuel consumption(g/kw/h) | 540 |
| Starting system | recoil |
| Ignition model | TCI |
| Compression ratio | 7.4: 1 |
| Noise level LwA dB(A) | 65/67 |
| Dimension(L*W*H)mm | 530X440X460 |
| Net weight(kg) | 40 |
| Gross weight(kw) | 43.5 |
| 20FT container QTY(PCS) | 275 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
