Product Description
We provide various kinds of diesel engine, gasoline, water pump, sprayer, diesel generating sets.
Please contact us for further details.

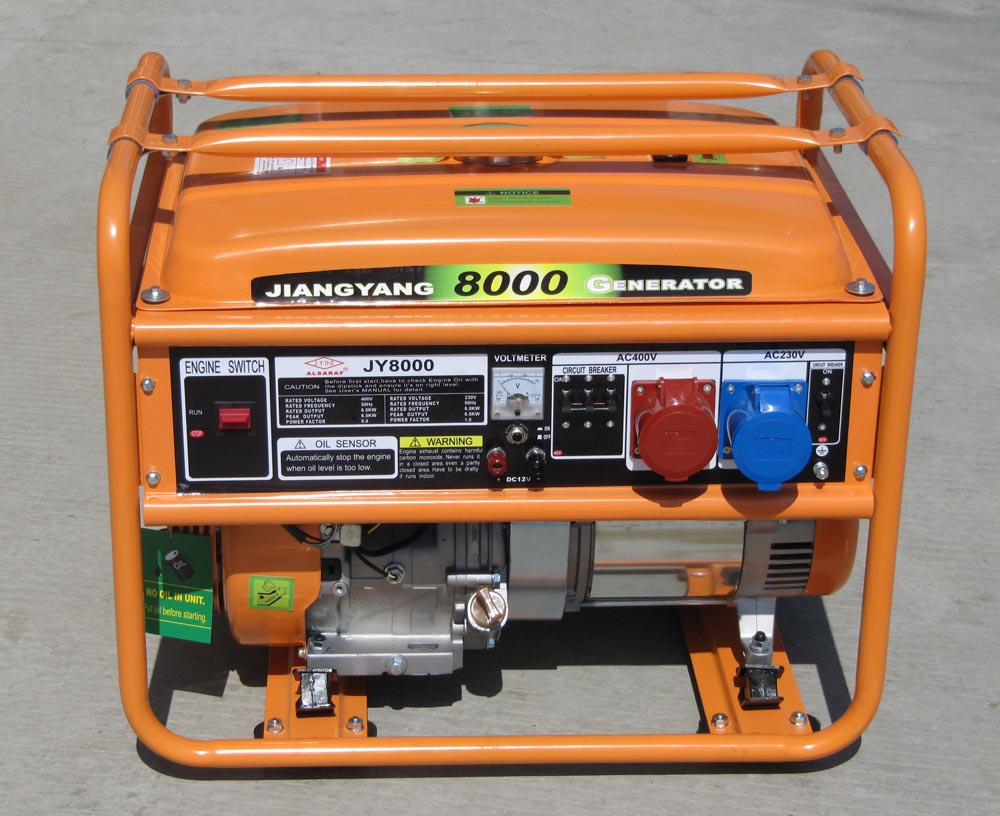

| Model | JY3800 | JY4000 | JY5000 | JY6500 | JY8000 |
| Generator |
| Type | Brush, Single-phase |
| Voltage Regulate | AVR |
| Frequency (Hz) | 50/60 |
| Rated AC Voltage (V) | 110V\120V\220V\230V\240V |
| Rated AC Output (KVA) | 3.0/3.5 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 | 6.0/6.5 |
| Max. AC Output (KVA) | 3.3/3.8 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 | 7.0/8.0 |
| Power Factor | COSΦ=1 |
| Model | JF240 | JF270 | JF340 | JF390 | JF420 |
| Engine |
| Type | OHV Forced Air-cooled 4-stroke |
| Bore x Stroke (mm) | 73x58 | 77x58 | 82x64 | 88x64 | 90x66 |
| Displacement (ml) | 242 | 270 | 337 | 389 | 420 |
| Max. Output (HP/rpm) | 8.0/3600 | 9.0/3600 | 11.0/3600 | 13.0/3600 | 15.0/3600 |
| Fuel | Unleaded Gasoline |
| Fuel Tank Capacity (liter) | 125 | | | | |
| Continuous Operaing Hours (h) | 12.5 | 11 | 10 | 9 | 9 |
| Oil | SF or Higher Grade |
| Oil Capacity(liter) | 1.1 |
| Ignition System | T. C. I. |
| Starting System | Recoil and hand-operated / Electric start |
| Noise Level (7m) dB (A) | 72 |
| Standard Features |
| Fuel gauge | 0 | 0 | 0 | 0 | 0 |
| Voltmeter | 0 | 0 | 0 | 0 | 0 |
| AC Circuit Breaker | 0 | 0 | 0 | 0 | 0 |
| Engine Switch | 0 | 0 | 0 | 0 | 0 |
| AC Socket | 0 | 0 | 0 | 0 | 0 |
| Optional Features |
| Pilot Light | + | + | + | + | + |
| Wheel & Handle | + | + | + | + | + |
| Hours meter | + | + | + | + | + |
| DC Output | + | + | + | + | + |
| DC Circuit Breaker | + | + | + | + | + |
| Package Dimensions | | | | | |
| Dimensions (LxWxH)(mm) | 700x525x580 | 700x560x580 | | | |
| Gross Weight(kg) | 69 | 74 | 77.5 | 86 | 100 |
| Net Weight(kg) | 65 | 70 | 73.5 | 82 | 96 |
| 20/40 FT unit | 124/252 | | | | |
| NOTE: "0"=with "+"=as request "-"=without Specifications subject to change without notice |
YANCHENG JIANGYANG FOREIGN TRADE ENGINE CO., LTD lies to the seaside of Yellow Sea with convenient transportation to Shanghai, Beijing, Guangzhou and so on big city by air, railway or freeway.
The factory owns the first-rate inspection equipment, high technology and over 20 year's' experience in manufacturing diesel engine from 3hp to 30hp and various kinds of generating set, such as automatic, trailer, sound proof, from 0.5kw to 1500kw. Also supply water pump set, sprayer, alternator and related spare parts.
The factory delicates its efforts on developing generating sets to use new energy sources, such as bid gas and wind power, ranging from 150kw to 500kw. They are widely used in farm, mine, hospital and school as a reserved power source for emergent case.
We provide various kinds of diesel engine, gasoline, water pump, sprayer, diesel generating sets.
Please contact us for further details.
