| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
Product Description
MINGYUAN-DEUTZ series adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-venture Company in China. The DEUTZ engines are 4-cycle, water-cooled, 24VDC working voltage for control system, adopt circumvolve fuel filter & oil filter cleaner, dry air cleaner, compact structure, fine quality, reliable capability.
Generally the generators adopt our company's TFW2 series brushless three phase synchronous generator(the characteristic and technical data see the section" Generators in industry"). If the customer requires that also could adopt TFX series compound excitation generator or STC series third-harmonic excitation generator or other generators.

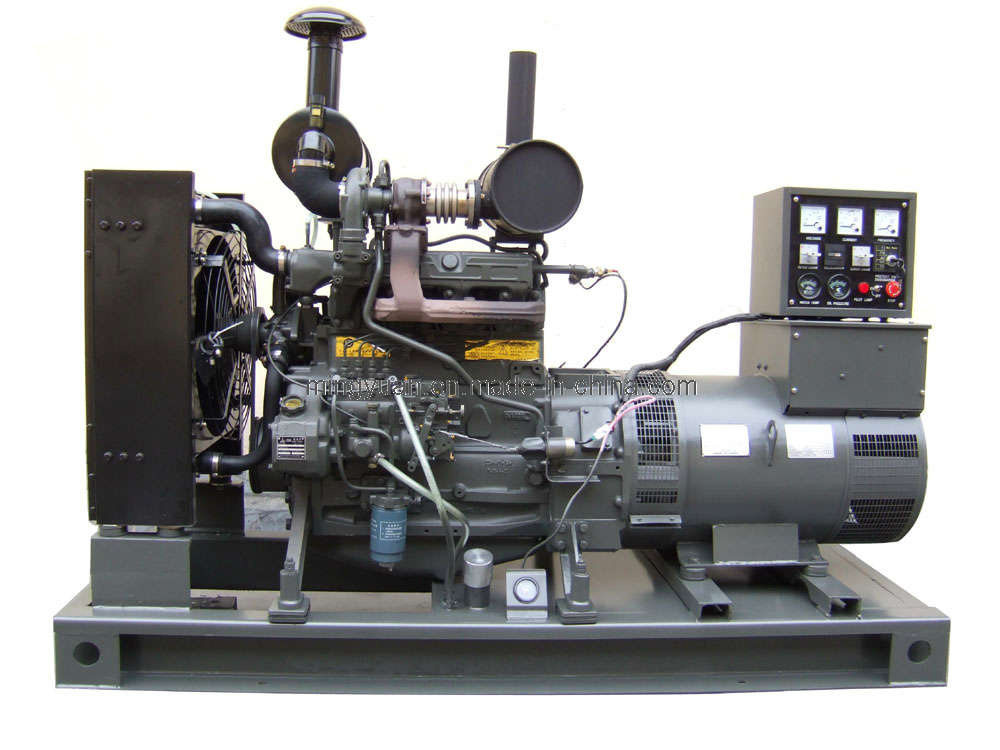

The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, AC. Ampere meter, DC. Ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, controller for protection, transfer switch system and other accessories. Different starting type including manual & electric & automatic Transfer can be selected by our customer.
The generator sets also can adopt fuel box at bottom, controller with four protections(high water temperature, high oil temperature, low oil pressure, over speed); Also can design for silent, fully automatic transfer and automatic parallel system.
|
Model |
Rated Power (KW/KVA) |
Fuel Consumption (L/H) |
Engine Type |
Dimension(mm) L× W× H |
|
GF-D24 |
24/30 |
6.7 |
D226B-3 |
1750× 790× 1350 |
|
GF-D40 |
40/50 |
10.8 |
TD226B-3 |
1850× 790× 1350 |
|
GF-D50 |
50/62.5 |
13.5 |
TD226B-4 |
2040× 790× 1350 |
|
GF-D80 |
80/100 |
21.65 |
TBD226B-6 |
2350× 945× 1400 |
|
GF-D104 |
104/130 |
28.4 |
TBD226B-6 |
2550× 945× 1400 |
|
GF-D120 |
120/150 |
32.3 |
TBD226B-6 |
2550× 945× 1400 |
|
GF-D150 |
150/187.5 |
40.8 |
WD615.68D-15 |
2740× 1000× 1500 |
|
GF-B90 |
90/112.5 |
162 |
27 |
1006TAG |
|
GF-B108 |
108/135 |
195 |
31.2 |
1006TAG |
