North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:
ISO9001: 2008
Warranty Time:
1 Year Since The B/L Date
Color:
as Per Request
Delivery Time:
About 30 Days
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Product Description

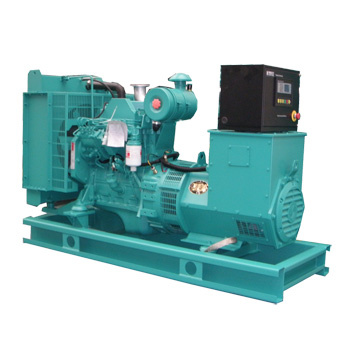

50Hz 70kw cummins diesel generator
*1 year/1, 000 hours limited warranty
*Automatic starting system
*Cummins diesel engine + Battery charging alternator
*Factory load bank tested
*Automatically shut off with low oil pressure, high water temp. Over-speed, and high oil temperature
*Emergency stop button mounted externally
*Spring mounted vibration isolators
*Critical muffler
*Battery rack and cables
Technical Data
Geset
Manufacturer
WEITUO
Model
WTC72kw
Frequency
50HZ
Power
Standby Power
80KW / 100KVA
Prime Power
72KW / 90KVA
Open type
Dimension(L*W*H)
mm
2300× 850× 1400
Weight
Kg
1000
Diesel engine
Engine Manufacturer
Cummins
Model
6BT5.9-G1
Cylinder Arrangement
6 in line
Air Intake System
Turbo
Fuel System
A/AD type fuel pump
Displacement
5.9L
Bore and Stroke
102× 120(mm)
Compression Ratio
17.5: 1
Rated RPM
1500rpm
Max. Standby Power at Rated RPM
102KW/139HP
Frequency Regulation, Steady State
≤ 2.5%
Exhaust Gas Flow
15.5m3/min
Max Intake Restriction
6.2kPa
Total Oil Capacity
16.4L
Total Coolant Capacity
24.5L
Alternator
Manufacturer
Stamford
Model
UCI 274C1
Connecting Type
3 Phase and 4 Wires, " Y"
Protection Grade
IP23
Altitude
≤ 1000m
Exciter Type
Brushless, self-exciting
Insulation Class
H/H
Telephone Influence Factor (TIF)
< 50
THF
< 2%
Voltage Regulation, Steady State
≤ ± 1%
Alternator Capacity
118KVA
Alternator Efficiencies
90.40%
Air Cooling Flow
0.514m3/s
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
