| Prod Model: |
sp 10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar System Type: |
off Grid System / on Grid System |
| Output Voltage: |
110V/220V/230V/240V |
| Solar Panel Efficiency: |
17% or 16% |
| Working Way: |
Home/Office / Farm Ect |
| Delivery Time: |
10ays for Sample |
| During The Warranty: |
Factory Will Ship The Free Parts for Service |
| Solar Panel Type: |
Mono Panel or Poly Panel |
| Warranty: |
10 Years |
| Certifiction: |
TUV CE |
| Solar System Parts: |
Hybrid Inverter / Cable / Battery / Solar Racking |
| System: |
Off-Grid system |
Product Description
High Efficiency Solar Panel System For Home Use, 10KW Solar Kit Price For Household Use Free Shipping
Foshan Tanfon Energy Technology Co., Ltd. Is specialized in R&D, manufacturing and selling solar power system product, wind power system product, solar &wind hybrid system(on grid and off grid systems).
For solar system mostly use for household power supply, have main charger when non-sunshine. Very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France, USA, Canada, Pakistan, Indonesia, UAE, Bangladesh,
Philippines, Greece, Iran, Kuwait, Iraq, Bulgaria, Roumania, South Africa ect)
Solar on grid system: Solar panel+grid tie inverter
Solar off grid system: Solar panel+hybird inverter(controller, inverter)+battery
(other parts as PV array combiner, rack, cable can optional)

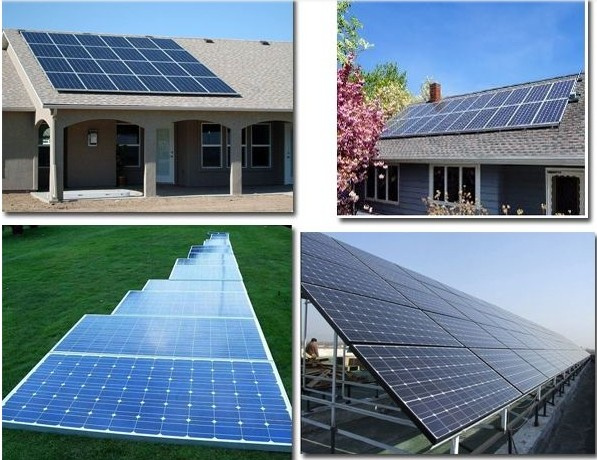

System Application:
1, Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
New energy leads low carbon life.
Foshan Tanfon Energy Technology Co., LTD
| Off grid solar power supply system- SP-10KW |
System
Basic Information | Solar panel rated output power: 8KW
Suitable for daily power consumption: < 32KWH
Allowable max loads power: 12KW
Supply power for air-condition, refrigerator, water pump, washer ect |
|
| Solar panel | type: mono solar panel(poly optional)
Max power: 200w
Vmp: 28.8V Voc: 36.4V
Imp 8.3A weight: 20KG
Size: 1498*998*40mm
25 years life time (CE TUV)
Connect way: 4pcs panels in series as a string,
10 strings in parallel | QTY
40pcs |
|
| PV Array Combiner | Model: H10T-96v Multiple PV strings inputs
Simplify wiring between PV array
and controller, protections to controller, features:
Wide range of DC input voltage
Reliable thunderstorm& surge protection | QTY
1pcs | Notes:
1. pictures show are for reference.
2. power output data is based on areas with daily average peak power shine of 4.5hrs
3. the battery capacity is designed for power storage of 1.5-2 days PV output
4. solar panel rack can be specially designed based on site condition
Remark:
1) solar panel have 5 years warranty;
2) other parts have 2 years warranty;
3) ship the free parts for service(best service in china)
4) Accept OEM
5) MOQ: 1 set
|
| Hybrid solar Inverter | Inverter power: 10kw/96v
MPPT Controller model: 96v/100A
Charging efficiency; 90%-95%,
LCD display inverter and controller info
With AC charger built in
Output: 110v, 120v, 220v, 230v, 240v(optional)
Product size: 590*470*730mm
Weight: 107KG | QTY
1pc |
| Battery | Capacity: 12V/200AH full sealed
Solar power lead-acid battery,
Service life: 5-6 years,
Size: 522*238*218mm
Weight: 58KG Connect way: 8 pcs panels in series as a string, 4strings in parallel | QTY
32pcs |
| Panel ground rack | Ground rack installation
including complete fittings
(other type of rack can be customized as per client' s requirement ) | QTY
1set |
| Cables | 12mm2 cables(one red and one black)
International standard, with specification suitable for solar system | QTY
200m |
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
