| Prod Model: |
KDP15H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Gear Pump |
| Application: |
Clarified Water Pump |
| Theory: |
Jet Pump |
| Power: |
Hand Start/Electric Start |

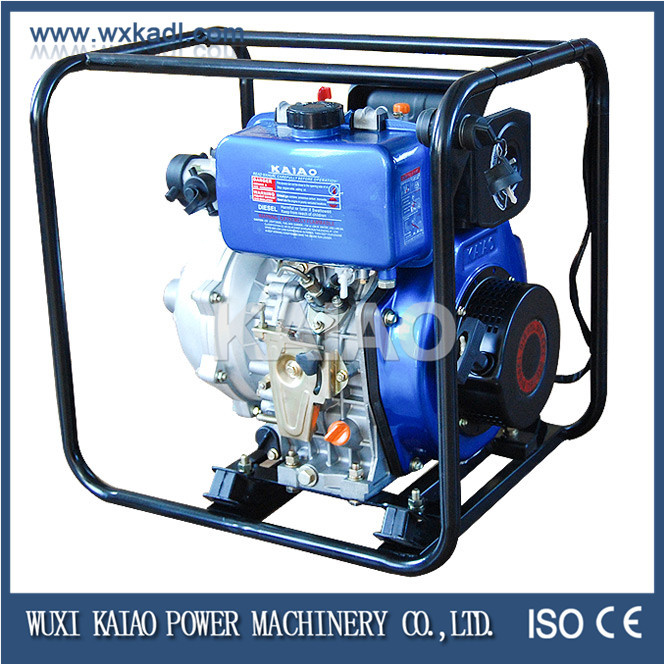

Product Description
1. ISO improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Easy maintenance.
5. 1.5" small diesel engine pumps
| Water Pump | Model | KDP15H |
| Suction, discharge port diameter[mm(in)] | 40(1.5" ) |
| Cont. head(m) | 42 |
| Self-priming time (s/4m) | 40 |
| Max suction head (m) | 8 |
| Cont. capacity (m3/hr) | 10 |
| Fuel tank Capacity: L | 3.5 |
| Engine | Enigine model | KA178F |
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
| Bore X Stroke (mm) | 78× 62 |
| Fuel | Summer: 0# Winter: -10# |
| Lubricatiom Oil Model | SAE10W-30( above CD grade) |
| Lubricatiom oil volume(L) | 1.1 |
| Fule oil consumption rate(g. kw/h) | 285 |
| Displacement: L | 0.296 |
| Power/ speed: KW, r/min | 4/3600 |
| Compression Ratio: | 20 |
| Combustion system | Direct lnjection |
| Standard Features | Oil alert | Yes |
| Connecter of infall, Connect of outfall | Yes |
| Fiffer | Yes |
| Seal ring | Yes |
| Hoop | Yes |
| Optional Features | Luxury big fuel tank | optional |
| Dimensions | Dimension: mm | 605*470*582 |
| Dry weight: kg | 50 |
| 20FT | 120 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
