| Prod Model: |
THH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Thc |
| Structure: |
Floor Standing |
| Usage: |
Engineering |
| Air Volume: |
301-400m³/h |
| Type: |
HEPA Filter |
| Certification: |
ISO |
| Application Area: |
31-40m² |
| Power Source: |
Electrical |
| Operating Principle: |
Active + Passive |
| Purifying Technology: |
HEPA |
| Anion Density: |
>4000000pcs/m³ |
Product Description

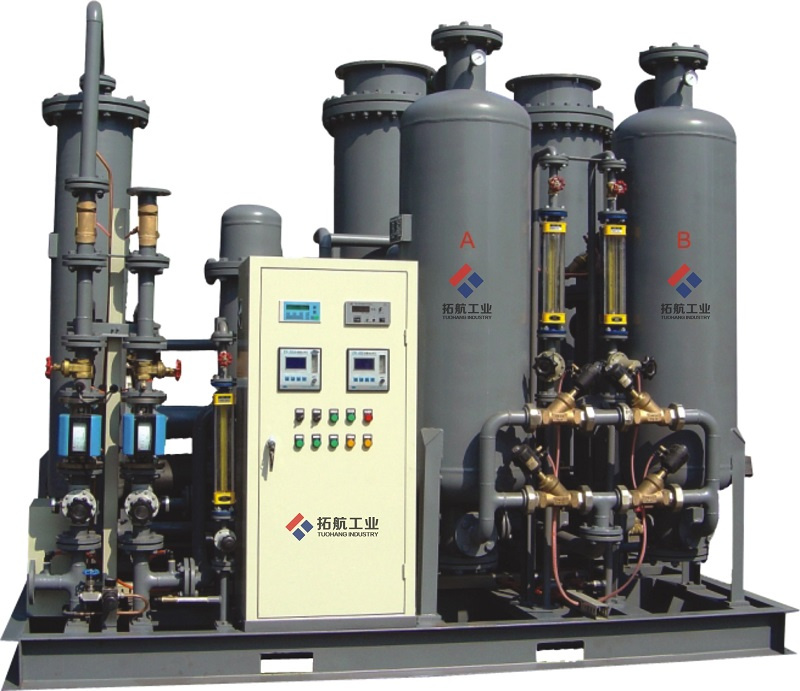

Working Principle
Under the action of catalytic agent,oxygen in the low-purity nitrogen and hydrogen added into the system generate water after combustion reaction.After re moving the residual oxygen and further denitrification ,it goes into drying system to dehydrate deeply and high-purity nitrogen is produced.\
Technical Features
Automatic nitrogen-adding and -proportioning device with national patented technology has high control precision and reliable safety.
Energy - saving technique with national patented technology makes the energy consumption of the system reduce greatly.
Automatic venting device with national patented technology ensures the quality of the produced nitrogen.
Key parts of the system adopt the famous brand,which is the effective guarantee of the equipment quality.
It has functions of diagnosis,alarming and automatic troubleshooting of several failures.
The centralized monitoring system can provide centralized monitoring of the auxiliary equipments such as nitrogen PSA equipment,nitrogen production device,etc.
DCS communication interface is optional.
| Model and Specification | THH-10 | THH-20 | THH-40 | THH-60 | THH-100 | THH-150 | THH-200 | THH-300 | THH-400 | THH-500 |
Rated
Nitrogen Output(Nm³/h) | 10 | 20 | 40 | 60 | 100 | 150 | 200 | 300 | 400 | 500 |
| Rated Air Processing Amount Membrane Separation Nitrogen(Nm³/h) | 11 | 22 | 44 | 66 | 110 | 165 | 220 | 330 | 440 | 550 |
| Rated hydrogen Processing Amount Membrane Separation Nitrogen(Nm³/h) | 0.13 | 0.25 | 0.45 | 0.7 | 1.2 | 1.7 | 2.3 | 3.4 | 4.5 | 5.6 |
| Installed Power(KW) | 1 | 3 | 4 | 5 | 8 | 11 | 16 | 24 | 30 | 38 |
| Cooling Water(t/h) | 0.4 | 0.8 | 1.2 | 1.5 | 2.7 | 3.5 | 4.3 | 6.2 | 8.6 | 10.5 |
Zhejiang Tuohang Industrial Equipment Co., Ltd. is located in Fuyang, a beautiful city of Hangzhou. We are professional in Manufacturing air separation plants, compressed air purification equipment and gas dry equipments etc.
Our company owns advanced manufacturer equipment, testing equipment, , strict management system. We have already passed ISO 9001. As Tuohang people believe the quality is the soul of the company. And research&development group has been established, the quality is of realiable
Advanced management experience, strict quality control and internal management system consist of Tuohang Spirit...Tuohang people' S goal is getting satisfactory products and making customer satisfied.
You are welcomed to visit us and any question is appreciated.
