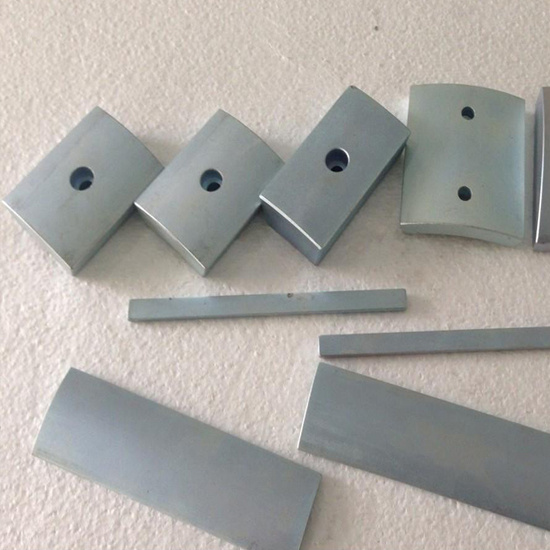

High Quality Arc Segment Neodymium Magnets Wind Generator

Prod Model:	H/SH/UH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Nodymium-Iron-Boron
Size:	as Your Requiements
Surface:	Zn , Ni+Cu+Ni , Ni+Cu+Epoxy
Tolerance:	Unless Specified Requirements, +/-0.08mm,+/-0.04mm
Working Temp:	80-220 Degree
Delivery Time:	Very Fast Delivery 15-25 Days
Application:	Wind Generator
Coating:	Nickel
Shape:	as Your Requiements
Grade:	H/Sh/Uh

Product Description

Magnet for MW Wind Generator has very high comprehensive performance, so it can stand extremely harsh environment and own very long life time.
About 21% of our  magnets are used in wind generator.We has successfully produced many specifications for wind generators.
And we not only have obtained the certification for Permanent Magnet Industrialization for MW wind PMG, but also have more than 10 invention patents and application patents on material research and equipment improvement for magnets of PMG .
Most of the wind generator magnets are large block shape, tile shape and wedge shape in Ni+epoxy coating,the grade is always in M,H,SH series.In 2014,the new production line which has the imported Germany and Japan equipment it will help to improve the property consistency of the big wind generator magnet and the production efficiency.

Ningbo ZhongYuan Magnet Co., Ltd. was founded in 2008,as a professional manufacturer and exporter,we are specialized in designing and producing of rare earth magnet ,especially for sintered and bonded NdFeB(Neodymium) magnets. Currently we mass produce N52,50M,48H,45SH, 40UH, 38EH , 33AH and other grade of sintered NdFeB(Neodymium) magnet.They are widely used in Automobile, Wind Power, Servo and so on. Our factory is located in Ningbo ,Where is the industrial bases of Ndfeb magnet.

Detailed specifications:
1.Size: Custom-made according to your requirements.
2.Grade:All kind of grade with N35 - N55, 30M - 52M, 30H - 50H, 30SH - 48SH, 28UH - 42UH, 30EH - 40EH, 30AH - 38AH.
3.Performance: High flux, high coercive force, low temperature coefficient and low loss of irreversible.
4.Coating:Ni,Zn, NiCuNi, Epoxy,Nicu+Epoxy,NiCu+Sn,Passivation,Silver, Gold, Teflon,Everlube etc.
5.Application:Motor assemblies, Automobile,Wind Generator,MRI,Speaker,IT industry ,Sensor,Communication equipments , Scanner, Camera, Home appliance and so on.
6.Certificates: SGS, ISO9001:2000,ROHS

Why buy our Neodymium(NdFeB)magnet?
1 Original manufacture
2 All propertymade at your requirements
3 Low weight loss:HAST-2mg/cm3
4 No Dy or less Dy-low cost
5 Competitive price,stable quality,fast delivery,good service

With advanced processing and test equipment, The stablility, consistency and tolerance of our magnets can be well controled.Choose ZhongYuan Magnet you can experience more professional technical advice, fast quotation, ordered production plan, quality control and convenient mode of transportation. Which can support us to provide good products and timely delivery. Problem analysis in your position is always our service tenet.

If you have any interest or inquiries for Neodymium(NdFeB) magnet,you are welcomed to inquire here.We are sure you will be satisfied with our price and service.

Technical data of sintered NdFeB
Grade	Remanence	Intrinsic Coercive Force	Coercive Force	Max Energy Product
	Br	Hcj(Min)	Hcb(Min)	(BH)max
	kGs	kOe	kOe	MGOe
N35	11.7~12.2	12	10.9	33~36
N38	12.2~12.5	12	11.3	36~39
N40	12.5~12.8	12	11.6	38~41
N42	12.8~13.2	12	11.6	40~43
N45	13.2~13.7	12	11.0	43~46
N48	13.7~14.2	12	11.2	46~49
N50	13.9~14.4	12	10.5	47~51
N52	14.2~14.7	11	10.5	49~53
N55	14.6~15.2	11	9.0	52~56
33M	11.3~11.7	14	10.5	31~34
35M	11.7~12.2	14	10.9	33~36
38M	12.2~12.5	14	11.3	36~39
40M	12.5~12.8	14	11.6	38~41
42M	12.8~13.2	14	12.0	40~43
45M	13.2~13.7	14	12.5	43~46
48M	13.6~14.2	14	12.8	45~49
50M	13.9~14.4	14	13.0	47~51
52M	14.2~14.7	13	12.5	49~53
33H	11.3~11.7	17	10.5	31~34
35H	11.7~12.2	17	10.9	33~36
38H	12.2~12.5	17	11.3	36~39
40H	12.5~12.8	17	11.6	38~41
42H	12.8~13.2	17	12.0	40~43
45H	13.2~13.7	17	12.2	43~46
48H	13.6~14.2	17	12.9	45~49
50H	13.9~14.4	16	13.0	47~51
33SH	11.3~11.7	20	10.6	31~34
35SH	11.7~12.2	20	11.0	33~36
38SH	12.2~12.5	20	11.4	36~39
40SH	12.5~12.8	20	11.8	38~41
42SH	12.8~13.2	20	12.2	40~43
45SH	13.2~13.7	20	12.3	43~46
48SH	13.6~14.2	19	12.5	45~49
30UH	10.8~11.3	25	10.2	28~31
33UH	11.3~11.7	25	10.7	31~34
35UH	11.7~12.2	25	10.8	33~36
38UH	12.2~12.5	25	11.0	36~39
40UH	12.5~12.8	25	11.5	38~41
42UH	12.7~13.2	25	12.2	39~43
30EH	10.8~11.3	30	10.2	28~31
33EH	11.3~11.7	30	10.3	31~34
35EH	11.7~12.2	30	10.5	33~36
38EH	12.0~12.5	30	11.5	35~39
40EH	12.5~12.9	30	11.5	38~41
28AH	10.2~10.9	34	9.8	25~29
30AH	10.7~11.3	34	10.2	27~31
33AH	11.3~11.7	34	10.5	30~34
35AH	11.7~12.2	34	11.1	33~36
38AH	12.2~12.6	33	11.6	36~39
