| Price: | US $ 900/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

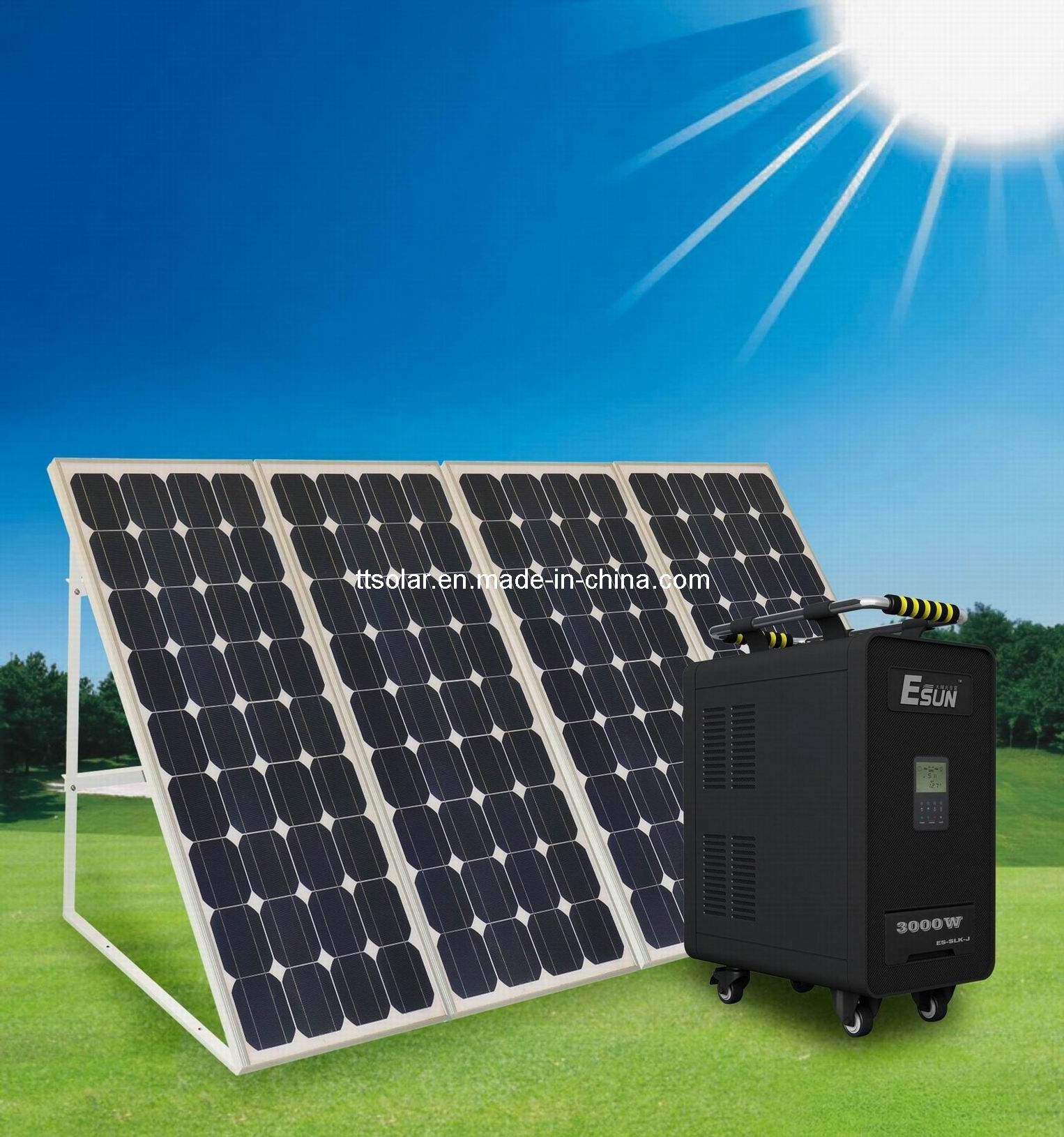

| Prod Model: | TTSPS-3000w |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Small Solar Power System: | Solar Light and USB Charging |
| System: | Off-Grid system |
| COMPONENTS | TECHNICAL PARAMETERS | REMARK | |||
| SOLAR PANEL | Silicon | Monocrystalline silicon / Polycrystallin silicon | life span | 20-25years | |
| Power | 100W x 6pcs, totally 600 W | ||||
| Vmp/Imp | 36V\16.66A | ||||
| Voc/Isc | 39V\17.5A | ||||
|
LiFePO4 BATTERY (Maintenance free, deep cycle, also called LFP battery) |
Rated capacity | Maintenance free LiFePO4 BATTERY, 160AH*8 | life span | 8-12years (2000 times cycle) | |
| Rated voltage | 24V | ||||
| Dimension | 510mm*254*235mm | ||||
| Weight | 42kg± 5% | ||||
| NOTE | Stoked battery is recommeded to be charged every three months (a maximum of six months). Please note: Use the correct voltage, otherwise the battery capacity and life will be affected. | ||||
| CONFIGURATION | Controller |
Controller system voltage: DC24V Rated charge/discharge current: 30A Rated capacity: 720W. Controller feature: |
|||
| 1) PWM & serious connection switch charging | |||||
| 2) Overload & short-circuit protection, reverse connecting protection. | |||||
| 3) Charging state adjust | |||||
| 4) Battery capacity setting, improving, direct charging & floating charging | |||||
| 5) Automatic load recovery | |||||
| 6) Automatic voltage recognition ( 12/24V, 24/48V) | |||||
| 7) Temperature compensation | |||||
| 8) Exact clock display | |||||
| 9) Light-control or time-control options | |||||
| 10) Four buttons to choose and adjust parameters | |||||
| 11) LCD display | |||||
| Inverter | Power: 3000W; 24V DC voltage of the battery is converted to AC220V/50Hz (or AC100V/60HZ) voltage Supply power for AC home appliances. ( recommended maximum load is 2400W). | ||||
| AC Charger | Input: AC220V/50Hz(or AC100V/60Hz); Output 24V DC; output-current: 15A. | ||||
| Operation Interface | 1. Charging& control mold indicator | ||||
| 2. Battery state indicator | |||||
| 3. Load state indicator | |||||
| 4. Seting state indicator | |||||
| 5. Load switch state indicator | |||||
| 6. Battery percentage capacity indicator | |||||
| 7. System working indicator | |||||
| 8. Inverter working indicator | |||||
| 9. DC load indicator | |||||
| 11. USB output DC 5V cell-phone charging interface | |||||
| 12. AC110/AC220V output interface | |||||
| 13. Solar panel & AC power charging interface | |||||
| 14. Switch | |||||
|
Working-hours (battery fully charged) |
working with 2400W power appliance: 1hour | ||||
| working with 1000W power appliance: ≥ 2.5 hours | |||||
| working with 500W power appliance: ≥ 4.5 hours | |||||
| working with 200W power appliance: ≥ 11.5 hours | |||||
| working with 100W power appliance: ≥ 23 hours | |||||
|
charging-hours (battery empty) |
solar charging | 15hours(Depending on the strength of sunlight) | |||
| AC charging | 10hours | ||||
| Package | Individually package for Mainframe and solar panel | ||||
