North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waranty Time:
1 Year Since The B/L Date
Certificate:
ISO9001: 2008
Color:
as Per Request
Delivery Time:
About 10 Days
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Basic Diesel Generator

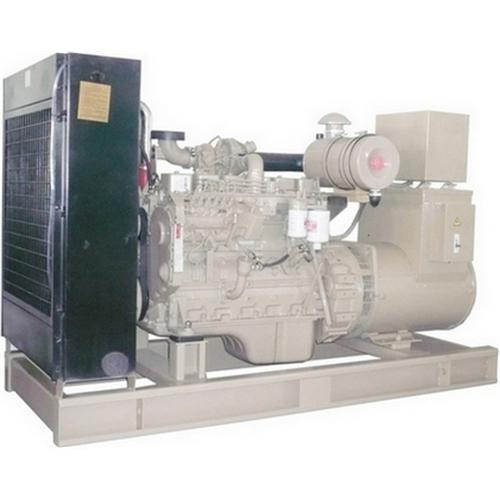

Product Description
Diesel Generator Set
Performance Feature
· Engine and alternator shall be mounted on a same frame steel skid.
· Built-in damper for anti-vibration.
· Small size, low weight, easy to operating, installation and maintenance.
· World most famous brand diesel engine.
· World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
· Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
· Full range protect function and alarm shutdown feature.
Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
Genset Model
Diesel Engine
Alternator
Prime Power
(kW/kVA)
Standby Power
(kW/kVA)
Model
Rated Power (kW)
No.of Cylinder
Bore x Stroke (mm)
Rated Fuel Consumption (L/h)
Model
Rated Power
(kw/kVA)
Excitation Type
WTP200GF
200/250
220/275
1306C-E87TAG6
246
6.L
137x165
59.9
UCD274K
200/250
Brushless
WTP240GF
240/300
264/330
2306C-E14TAG1
313
6.L
137x165
70
HCI44D
240/300
Brushless
WTP280GF
280/350
320/400
2306C-E14TAG2
353
6.L
137x165
70.6
HCI444E
280/350
Brushless
WTP320GF
320/400
360/450
2306C-E14TAG3
396
6.L
137x171
81.1
HCI444F
320/400
Brushless
WTP360GF
360/450
400/500
2506C-E15TAG1
459
6.L
137x171
95
HCI544C
360/450
Brushless
WTP400GF
400/500
440/550
2506C-E15TAG2
503
6.L
145x183
105
HCI544D
400/500
Brushless
WTP440GF
440/550
500/625
2806C-E18TAG1
558
6.L
145x183
118.2
HCI544E
440/550
Brushless
WTP500GF
500/625
550/690
2806C-E18TAG2
618
6.L
145x183
139.8
HCI544F-S
500/625
Brushless
WTP550GF
550/666
600/750
2806C-E18TAG3
618
6.L
160x190
143
HCI544F
550/666
Brushless
WTP580GF
580/725
640/800
4006-23TAG2A
702
6.L
160x190
155
LVI1634B
580/725
Brushless
WTP640GF
640/800
720/900
4006-23TAG3A
785
6.L
160x190
165
LVI1634C
640/800
Brushless
WTP680GF
680/850
748/935
4008TWG2
787
8.L
160x190
177
LVI1634D
680/850
Brushless
WTP800GF
800/1000
880/1100
4008TAG2A
985
8.L
160x190
221
LVI1634E
800/1000
Brushless
WTP1000GF
1000/1250
1100/1375
4012-46TWG2A
1217
12.V
160x190
265
LVI1634G
1000/1250
Brushless
WTP1100GF
1100/1375
1200/1500
4012-46TWG3A
1224
12.V
160x190
258
P1734B
1100/1375
Brushless
WTP1100GF
1100/1375
1200/1500
4012-46TAG1A
1320
12.V
160x190
258
P1734B
1100/1375
Brushless
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
