| Price: | US $ 900-9000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | YGDL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Axis Type: | Vertical |
| Rotating Shaft: | Vertical |
| Number Of Blade: | Multiple-Blade |
| Stress Way Of Blade: | Resistance |
| Phase: | 3 Phase |
Low rated rotate speed, Low start wind speed, Low weight and small size, High efficiency
(1) Torque Patent Technology: use newest "Precise Coil" technology. No hysteresis and gear notches effect make the start torque very low <1N.M

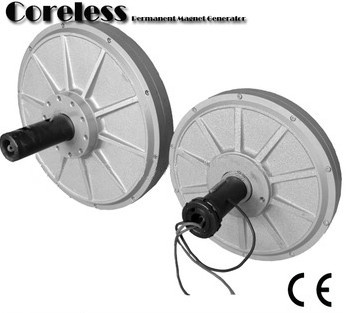

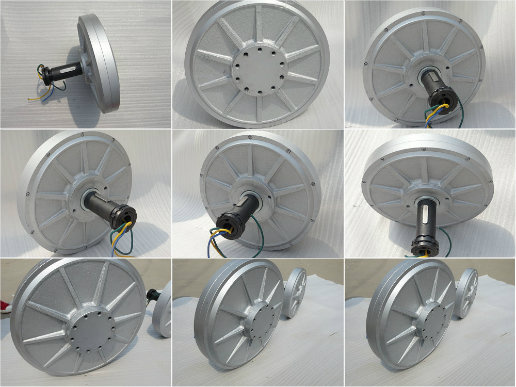

(2) Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
(3) Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
(4) Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
(5) Gearless, direct drive, low RPM generator.
(6) High standard, quality components for use in harsh and extreme environments for wind turbines
(7) High efficiency and Low mechanical resistance energy loss
(8) Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
| Model | 0.5KW-200 | 1KW-180 | 1KW-200 | 2KW-120 | 2KW-180 |
| Rated Power | 0.5KW | 1KW | 1KW | 2KW | 2KW |
| Rated Rotate Speed | 200 RPM | 180RPM | 200RPM | 120RPM | 180RPM |
| Rated Voltage | 56VDC | 84vdc | 56vdc | 115dcv | 115dcv |
| Rated Current | 9 | 12A | 17.9A | 10 | 17.4 |
| Efficiency | >85% | ||||
| Wending Method | Y | ||||
| Insulating Resistance | 100Mohm Min(500V DC) | ||||
| Leakage Level | <5 ma | ||||
| Start Torque | <0.1N/M | <0.3 N/M | <0.3 N/M | <0.5 N/M | <0.3 N/M |
| Phase Type | 3 Phase | ||||
| Structure | Out rotor | ||||
| Stator | Coreless wire coil | ||||
| Rotor | Rare Earth Permanent Magnet | ||||
| Generator Shell Diameter | 320 | 380 | 380 | 550 | 450 |
| Generator Shell Length | 232 | 241 | 241 | 330 | 258 |
| Weight | 20 | 32 | 32 | 75 | 51 |
| Shaft drameter | 45 | 50 | 50 | 78 | 59 |
| Generator shell material | Aluminum alloy | ||||
| Shaft material | Carbon steel | ||||
| Bearing | Deep groove ball bearing | ||||
