Model:
Kingkar-7000
Input Power:
3 Phase 380V (50-60)Hz±10%
Rated Capacity (kVA):
22
Working Current (a):
350
Work Pressure (Mpa):
≤0.2
Rated Gas Production (L/H):
7000±10%
Water Consumption (L/H):
3.8
Effective Perforation Thickness (Mm):
90
Cooling Way:
Air Cooling
Appearance Size (L*W*H)Mm:
1250*850*1830
Type:
Flame
Control Mode:
CNC
Cutting Mode:
Flame
Cutting Width:
as Your Request
Cutting Thickness:
as Your Request
Product Description

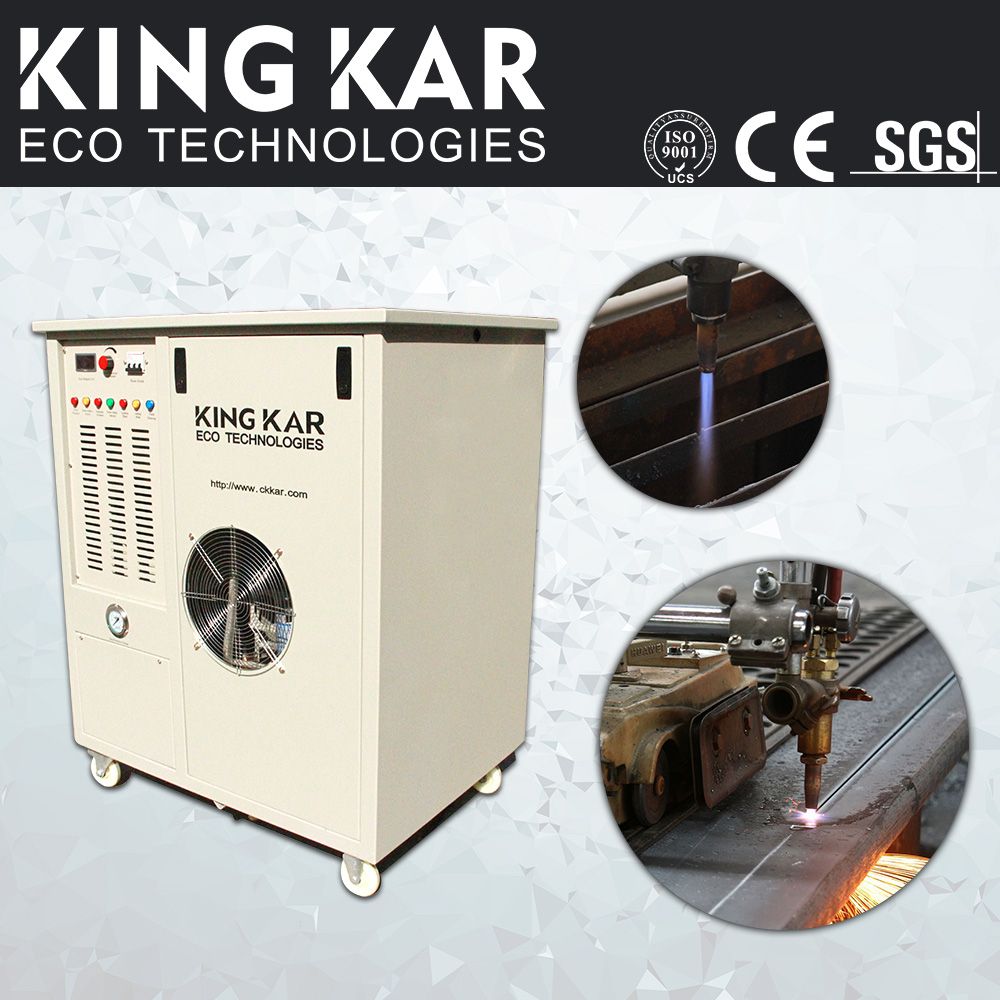

Operating principle Hydrogen production and hydrogen-oxygen fuel cutting machine is a device that uses water electrolysis technology, electricity from water decomposition of hydrogen and oxygen, hydrogen as a fuel, oxygen combustion, is a new high-tech green energy equipment, is a popular saying water becomes water fuel fire equipment. Just turn on the power switch, there is a steady stream of external supply of hydrogen fuel.
Specifications a. Neutral flame, carbonizing flame, oxidizing flame, can fully meet user's requirements for the use of fire.
b.Cutting surface smooth level off, without hang slag nodular.
c.Narrow kerf width, saving material.
d. More useful than traditional machine. Reduce pollution and 60% cost.
Why choose oxy hydrogen cutting machine?
---Efficient operation:small slot, concentrated firepower, preheat fast, high speed cutting, do not hang residue and without cleaning after process.
--- Energy-saving design: with voltage and temperature fluctuation compensation function, built-in AC power-saving features.
---Adjustable gas production:the use of DC power inverter technology, stable current adjustable, stable gas production.
---Easy to use:air-cooled, no water. Boot gas production shutdown to stop gas.
--- Security:Low electrolysis, no risk of electric shock. Built- proof membrane, pressure relief valves, stainless steel fire ended tubes, stainless steel flame arrester can effectively prevent all accidents tempering.
Other features
a.Safer fuel gas
Mixture of flammable gas and air or Oxygen is explosive, and it has a lower and upper limit of concentration for explosion. Lower explosive limit for Propane gas = 2.2% Lower explosive limit for Acetylene gas = 2.5% Lower explosive limit for Hydrogen gas = 4.0%. Thus, Hydrogen is much safer than the other gases because of its higher value of Lower Explosive Limit. Additionally, because Hydrogen is lighter than air, it does not stagnate but will quickly diffuse in the atmosphere.
b.CO2 Emissions reduction
Hydrogen is a clean energy source. Water is the only product of combustion. Hydrogen combustion produces no CO2 because the molecule contains no Carbon atom, Hydrogen is the cleanest energy as an alternative to LPG, Acetylene gas or Natural gas.
c.Lower heat stress
Steel plate when heated for the same time by both conventional and Hydrogen fuelled flames shows the following heat distribution in the plate. The high combustion speed of the Hydrogen flame reduces the flame area and concentrates the thermal energy. This allows the high pressure oxygen passage to heat only the immediate area being cut, preventing excessive heat transfer to the surrounding area. This reduces cooling time and distortion caused by excessive heat stress.
Application field Suitable for all the needs of the flame processing establishments, used to replace acetylene, propane, liquefied petroleum gas and other gas, commonly used in steel cutting, welding metal oxide, jewelry processing require high energy gas plant, glass processing.
Technical Data Sheet
Model
Kingkar-3000
Kingkar-5000
Kingkar-7000
Kingkar-10000
Voltage(V)
380 ±10%,50/60Hz,three phase
Rated capacity(KVA)
9
15
22
31
Working pressure(Mpa)
≤0.2
Relative humidity(%)
≤90
Rated gas output(L/H)
3000±10%
5000±10%
7000±10%
10000±10%
Water consumption(L/H)
1.6
2.7
3.8
5.8
Maximum Cutting Thickness(mm)
110
220
310
420
Effective perforated thickness(mm)
40
60
70
90
Cooling way
Air cooling
Insulation class
F
power protection grade
IP2S
Flame temperature(T)
800-3200 adjustable
Working medium
Filtered water or deionized water or soft water
Working
continuous
environment temperature(T)
0-40
Dimension(L×W×H)mm
1020*770*1270
1250*830*1720
1300*930*1820
1500*930*1940
Weight(KG)
293
567
653
894
Thank you for visiting. Any questions, please feel free to contact us. I am Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
