| Prod Model: |
HO-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
O2 & H2 |
| Rated Output Gas(L/H): |
2000 |
| Net Weight(Kg): |
159 |
| Dimension(Mm): |
760*450*800 |
| Gas Source: |
Electrolysis Water |
Product Description

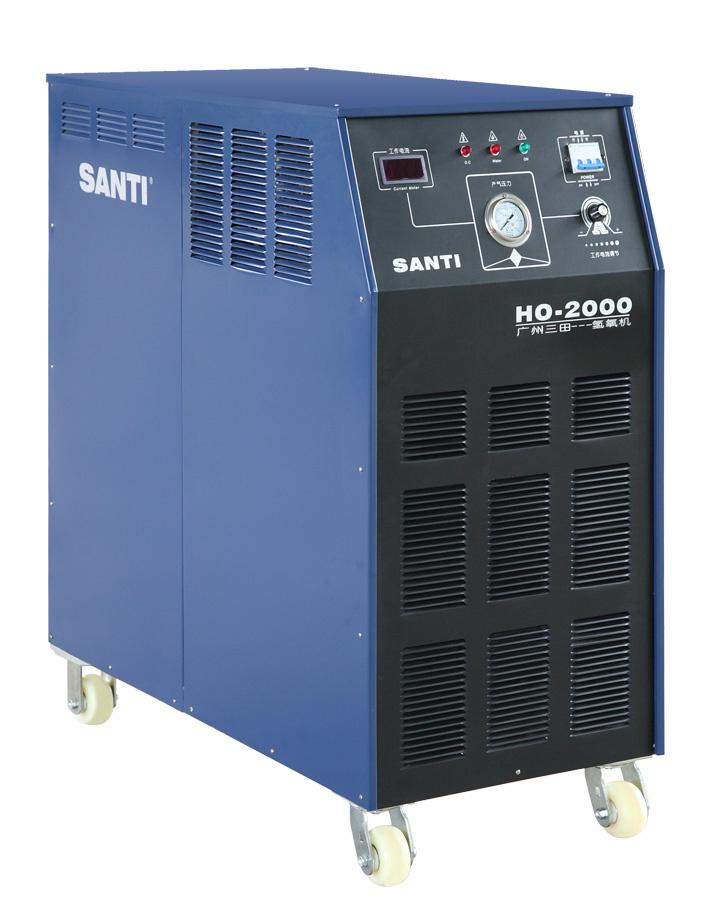

Hydrogen Oxygen Generator HO-2000
We are a leading manufacturer of HHO Generator in China; This machine is an Energy Saving and no pollution product. It consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. It can be used for welding, cutting, polishing, brazing, glass processing and jewelry processing. Also can burst with other fuel together for heating.
Our oxy-hydrogen machines can work 24 hours continuously every day and its designed life is 5 years.
To avoid the after-sale cost, we we use good parts so no problem happened during the operation process. And we also provide detailed instructions to our customers, thus they can use the machine easily.
Our Hydrogen Oxygen Generators can be used in below fields
1. Cutting metals by oxygen flame
2. Gas welding and flame spray painting
3. Thermal processing of jewelry, especially good for platinum as oxy-hydrogen flame contains no carbon
4. Fine cutting, fusion, repair and local thermal processing of delicate metal parts.
5. Direct fusion of fine copper wire and enameled wire
6. Be applicable to continuous casting templet in the steel factory
7. Removals of carbon deposit in the combustion chamber of internal combustion engine such as cars
8. LED chip integration
9. The thermal processing of glass and quartz glass
10. Surface polishing of organic glass
11. Computer wire peeling
12. Burn with other fuels together for boilers, cooking stoves, melting metals.
Features:
1. Energy Saving more than 30% compared with trational acetylene flame.
2. Without any pollution.
3. The cost of electricity and water reduces more than 40% compared with acetylene flame.
4. Unique design of flashback arrestor, electrolysis trough and circulatory cooling system make the machine sfe and reliable, stable performance.
5. Excellent welding and cutting quality.
6. All controls can be done just by one knob.
7. Except for flame welding and cutting, other welding and cutting funtions can be added according to customers require, this function en-strong the machines adsptability.
8. Portable, flexible and movable.
|
Parameter |
Model |
|
HO-2000 |
HO-4000 |
HO-6000 |
HO-8000 |
|
INPUT VOLTAGE(V) |
(3 Phase) AC380 ± 10% 50/60HZ |
|
RATED CAPACITY(KVA) |
7 |
17 |
24 |
31 |
|
RATED OUTPUT POWER(KW) |
6.4 |
13 |
21 |
25.6 |
|
RATED OUTPUT CURRENT(A) |
160 |
250 |
370 |
460 |
|
WORKING MIDIUM |
Distilled Water or Deionized Water |
|
AMBIENT TEMPERATURE() |
0~40 |
|
RELATIVE HUMIDITY(%) |
≤ 90 |
|
OPERATION GAS PRESSURE(MPa) |
≤ 0.18 |
|
RATED OUTPUT GAS(L/h) |
2000 |
4000 |
6000 |
8000 |
|
CONSUMPTION RATE OF WATER(L/h) |
≤ 1.1 |
≤ 2.2 |
≤ 3.3 |
≤ 4.4 |
|
MAX FLAME TEMPERATURE() |
3000 |
|
MAX CUTTING THICKNESS(mm) |
50 |
80-90 |
110-120 |
140-150 |
|
MAX WELDING THICKNESS(mm) |
3 |
5 |
5 |
5 |
|
OPERATION METHOD |
Continuous |
|
POWER SUPPLY SAFEGUARD GRADE |
IP21S |
|
WEIGHT(kg) |
159 |
247 |
320 |
390 |
|
DIMENSIONS(mm) |
760*450*800 |
880*550*1000 |
1150*630*1050 |
1150*700*1200 |
Guangzhou Santi Electro-mechanical Equipment Co., Ltd, as one of the main suppliers of inverter welding and cutting machines in China, We are specializing in Inverter Welding & Plasma Cutting Machines for 10 years. With high technology & development capacity, our product range covers inverter MMA, TIG, MIG/MAG, PULSE TIG, AC/DC TIG, PLASMA CUTTING digital controlled flames series. Quality is reliable and price is reasonable.
Our new machine Hydrogen Oxygen Generator consumes water and electricity and electrolyze water into H2 and O2 as the fuel. This kind of product not only save energy but also protect environment. It can be used for welding, cutting, glass processing and jewelry processing.
Generally speaking, Guangzhou Santi Electro-mechanical Equipment Co., Ltd has been endeavoring to make perfect products for customers. Welcome to cooperate with Santi.
