Certificate:
CE ISO
Flow Rate:
0-5L/Min
Purity:
93±3%
Power:
AC220V±10% or AC110V±10%
Power Consumption:
≤350W
Sound Level:
≤40dB
Outlet Pressure (MPa):
0.04-0.07
Net Weight:
16kgs
Size (mm):
320×360×600mm
Place Of Orign:
China
Certification:
ISO13485
LCD Display:
With LCD Display
Group:
All People
Product Description

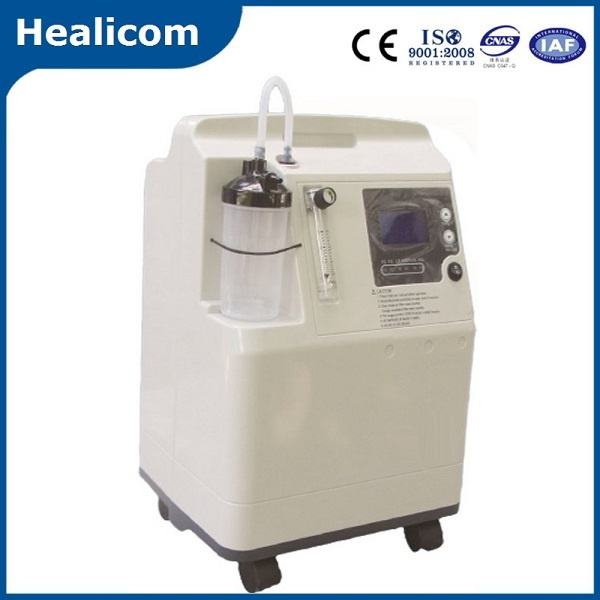

JAY-5Q Series oxygen concentrator model adopt pressure swing adsorption principle. which can separate oxygen. nitrogen and other gas from the air. at constant temperature, as soon as power is connected, the oxygen that meets medical use standards can be separated from air constantly. Oxygen is generated by pure physical method. The generator can supply 1-2 patients simultaneously. With steady oxygen flowing out, safe and reliable, low cost, adjustable flow. The key parts of the generator adopt anti-tiring and anti-aging design, and the planned life of the whole generator reaches up to 20,000 hours. There is no influence on indoor oxygen percent during the generator operating.
Application Comparing with other model products, this JAY-5/5Q 0-5L/Min oxygen concentrator has wider application scope. It can be used for the following applications. 1. Medical treatment. Our product can be used for adjuvant treatment for respiratory system diseases, cardio vascular and cerebral vascular system diseases, chronic obstructive pulmonary disease, carbon monoxide poisoning and other hypoxia diseases. It is suitable for clinics, community hospitals, township health clinics, etc. 2. Home health care. With our oxygen concentrator you can enjoy oxygen therapy at home without going to the clinic or hospital on purpose. 3. Veterinary use. This product is also suitable for small-sized animals to inhale oxygen.
Model
JAY-3
JAY-5Q
Flow rate
0-3L/min
0-5L/min
Purity
93±3%
Outlet Pressure (Mpa)
0.04-0.07
Sound Level
≤38db
≤40db
Power
AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz
Power Consumption
≤280W
≤350W
LCD display
Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours
Alarm
Power failure alarm, High & Low pressure alarm
Net Weight
14Kgs
16Kgs
Size (mm)
320×360×600mm
OPTIONAL
*Nebulizer *Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light *Maintenance alarm: alarm for maintenance after 3000 hours operation *Alarm for high temperature inside systems above 50°C *Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site. *Small LCD display: accumulating time; present working time presetting time.
